SP-8 Standard spindle

Varenr. IKA0025006835

Standard spindle

Beskrivelse

SP-8

Standard spindle

Technical Data

Spindle geometryDisc
ConnectionThread M2.5 LH
Quick plug connectoryes
Hook connectoryes
Diameter34.7 mm
Immersion depth49.2 mm
Spindle length133 mm
Mounting Bracketyes
Sample container:600mL beaker low
Viscosity Accuracy (FSR)1 %
Viscosity Repeatibility (FSR)0.2 %
Min. FSR match ROTAVISC lo-vi46.9 mPa.s
Max. FSR match ROTAVISC lo-vi9373 mPa.s
Min. FSR match ROTAVISC me-vi500.0 mPa.s
Max. FSR match ROTAVISC me-vi100000.0 mPa.s
Min. FSR match ROTAVISC hi-vi I1000.0 mPa.s
Max. FSR match ROTAVISC hi-vi I200000 mPa.s
Min. FSR match ROTAVISC hi-vi II4000 mPa.s
Max. FSR match ROTAVISC hi-vi II800000 mPa.s
Material in contact with mediumstainless steel 1.4404
Dimensions (W x H x D)35 x 135 x 35 mm
Weight0.025 kg
Permissible ambient temperature5 - 40 °C
Specifikationer
Varenr. IKA0025006835
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 0025006835
UNSPSC 41103312
CE-godkendt Ja
Filer

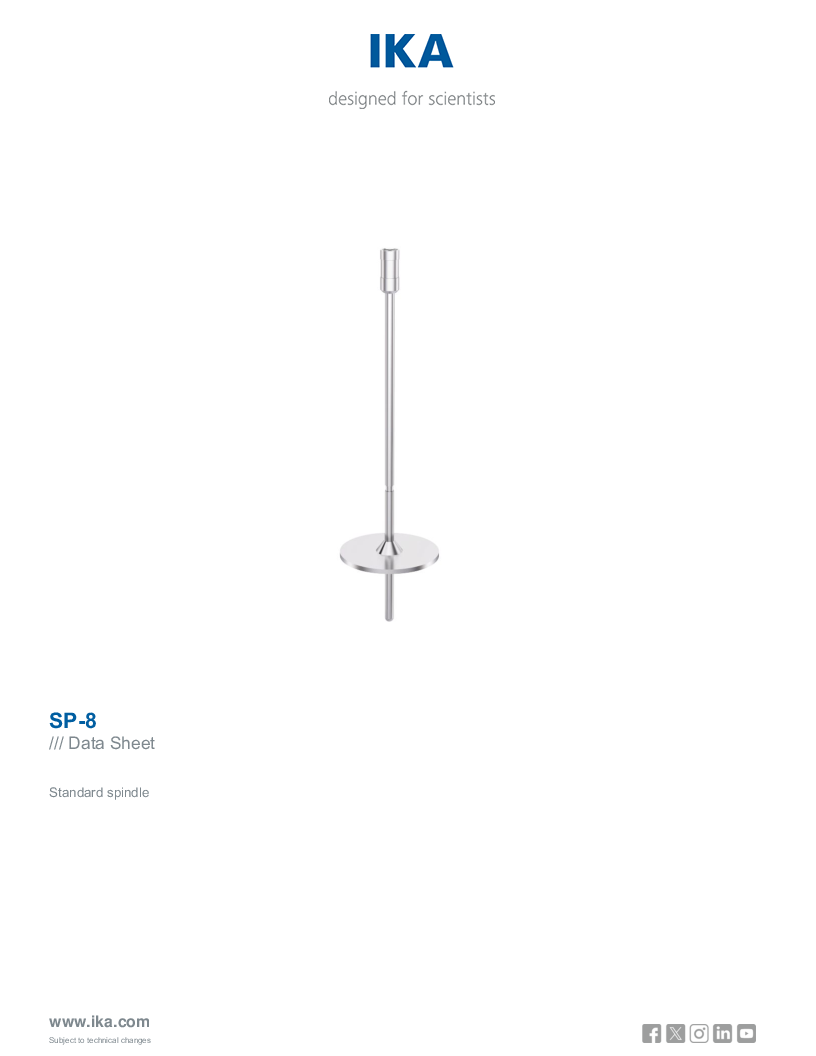

Data Sheet SP 8
Data Sheet SP 8
Vis Download
