HELISTAND Set Elect. stand incl. T-spindle set

Varenr. IKA0020128647

The motorized IKA HELISTAND allows you to measure the viscosity of highly viscous samples with a high level of reliability. It moves the mounted viscometer and its rotating body slowly and uniformly up and down in the sample.

Beskrivelse

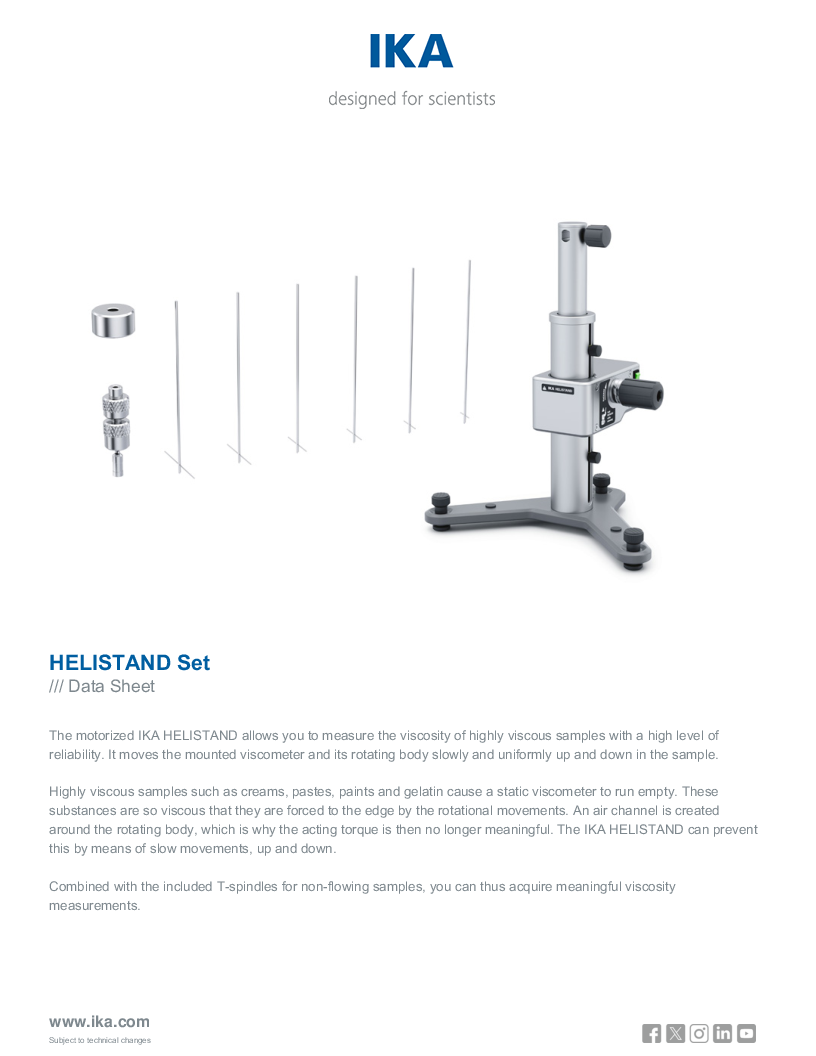

HELISTAND Set

The motorized IKA HELISTAND allows you to measure the viscosity of highly viscous samples with a high level of reliability. It moves the mounted viscometer and its rotating body slowly and uniformly up and down in the sample.

Highly viscous samples such as creams, pastes, paints and gelatin cause a static viscometer to run empty. These substances are so viscous that they are forced to the edge by the rotational movements. An air channel is created around the rotating body, which is why the acting torque is then no longer meaningful. The IKA HELISTAND can prevent this by means of slow movements, up and down.

Combined with the included T-spindles for non-flowing samples, you can thus acquire meaningful viscosity measurements.

Technical Data

Stroke max.142 mm
Diameter16 mm
Dynamic load3.2 kg
Overload protectionyes
Height adjustable safety switchyes
Dimensions (W x H x D)351 x 330 x 262 mm
Weight6 kg
Permissible ambient temperature0 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 40
Voltage220 - 230 V
Frequency50/60 Hz
Power input7 W
Power input max.7 W
Power input standby0 W
Specifikationer
Varenr. IKA0020128647
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 0020128647
UNSPSC 41103312
Vægt 5,5
CE-godkendt Ja
