Get started automating your lab today.

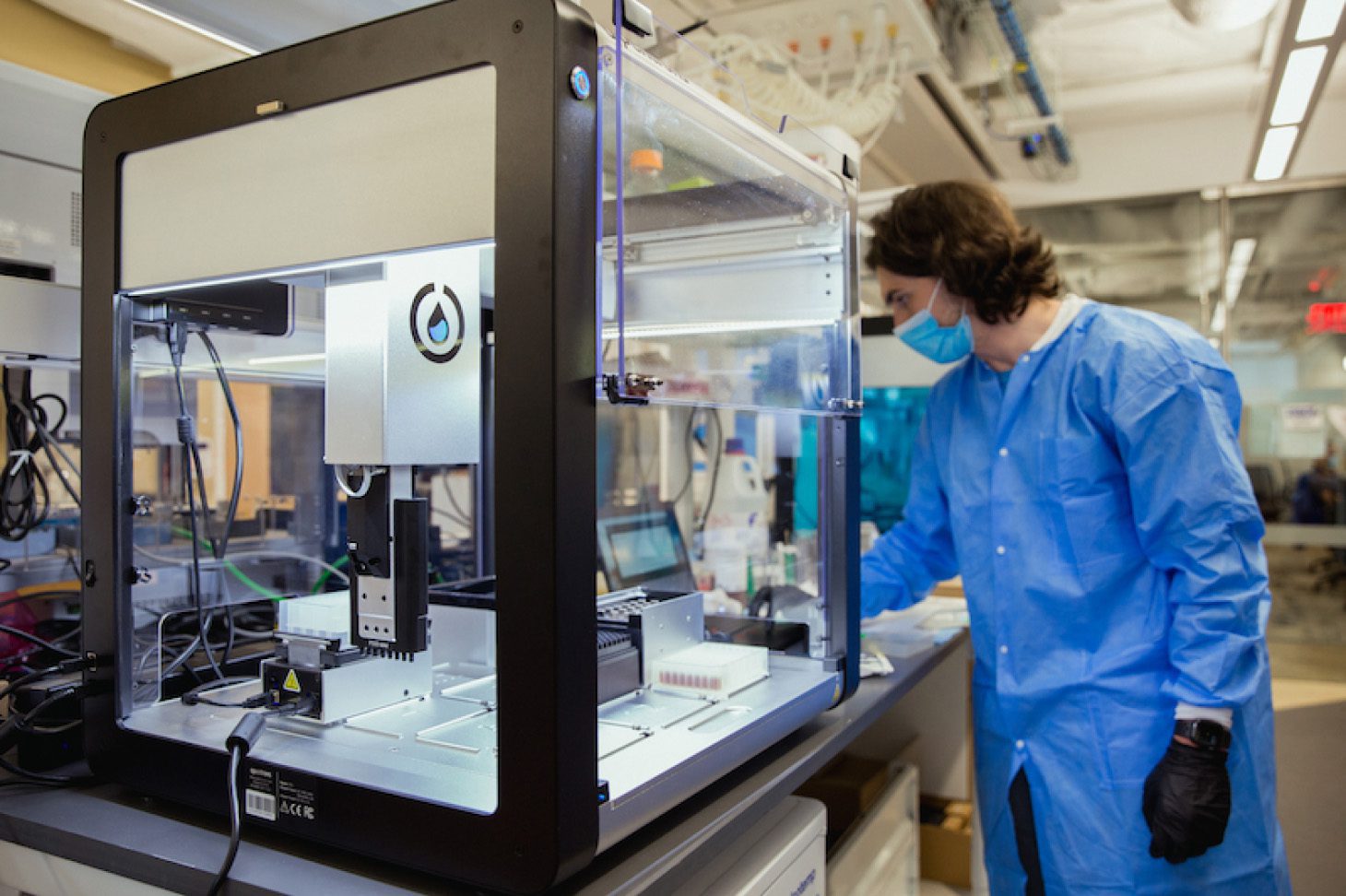

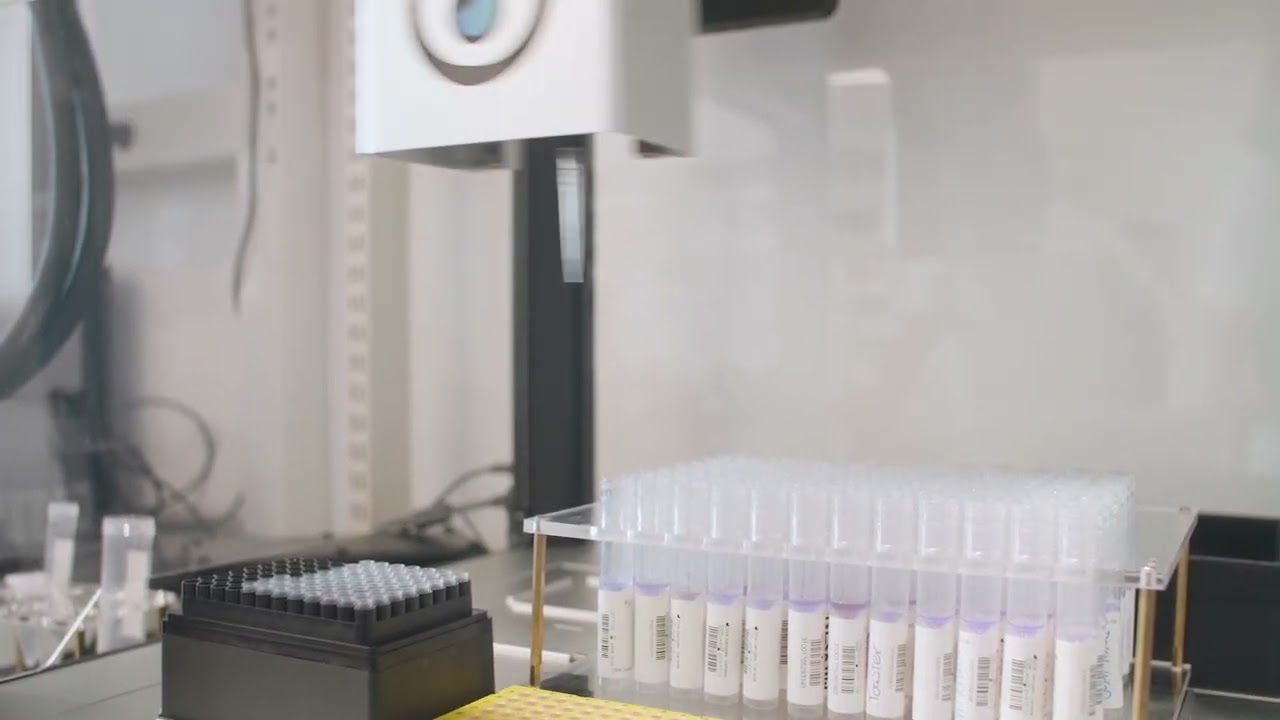

The OT-2 is a bench-top liquid handler designed to be accessible and flexible enough to automate many common applications
Are you unsure which pipettingrobot is the right one for you? Compare them below.
"The choice landed on Opentrons because we had an urgent need for some relatively simple pipetting tasks in connection with our Covid analysis. The Opentrons robot could be delivered and installed quickly, so the robot was up and running fast. It was also important that the robot had a simple user operation, but at the same time was open-source, so that we could program more complex programs ourselves."
- Søren Jepsen, Bioanalyst in charge of the function Regional Hospital North Jutland, Clinical Biochemistry Department, in Hjørring

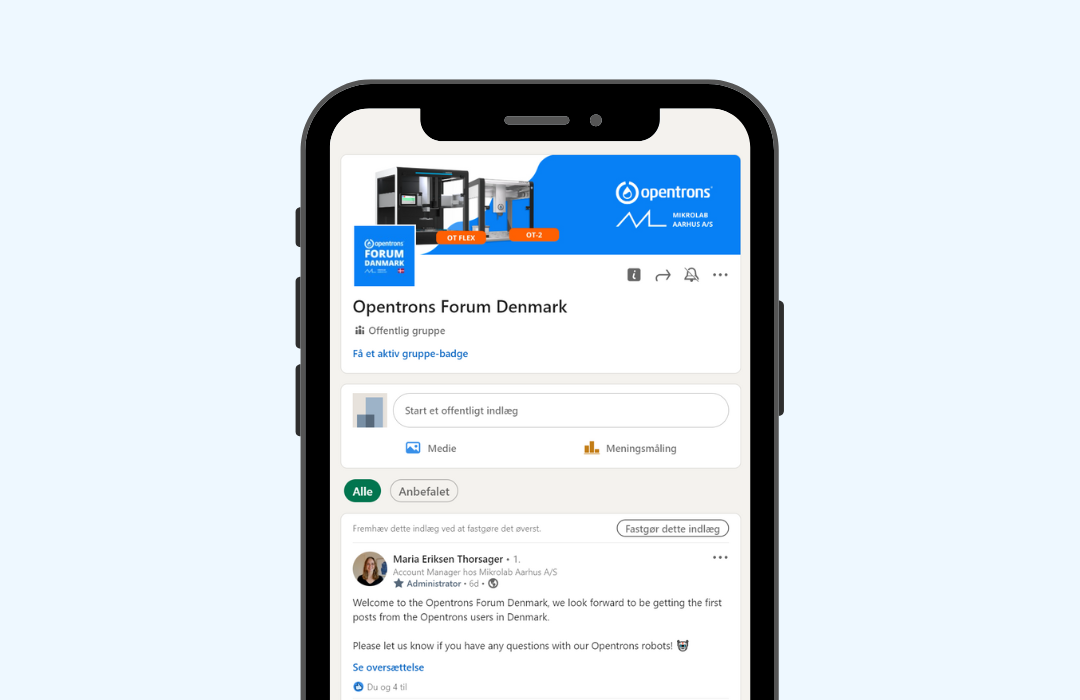

Share experiences, tips & tricks and help eachother troubleshoot workflows.

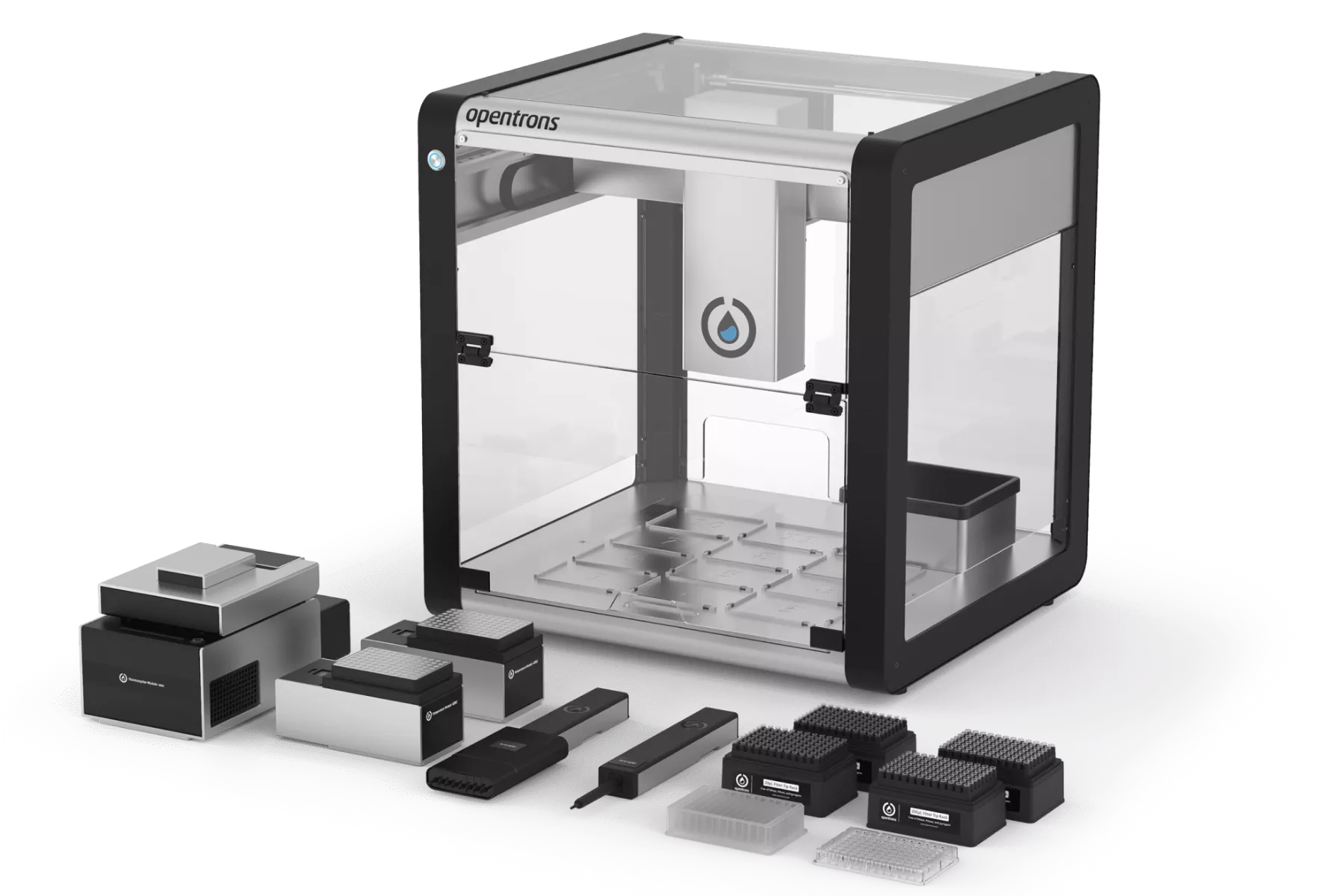

Another popular application for automation, especially if you’re prepping a lot of samples. You can use the OT-2 pipetting robot to combine samples and PCR mastermix in the reaction plate that will go into the thermocycler or qPCR machine.

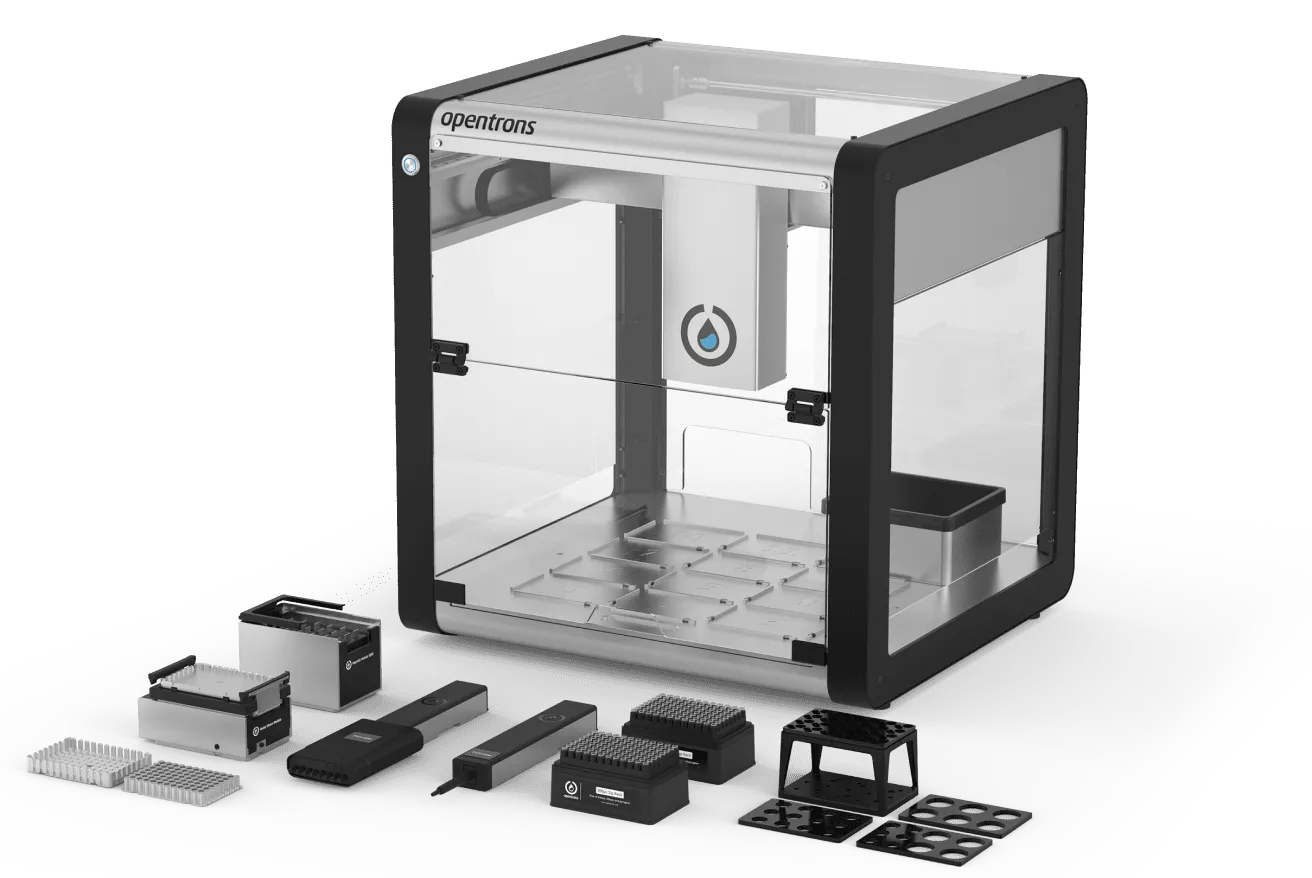

With the OT-2 Dual Flow Chromatography (DFC) Protein Purification Workstation, you can automate your small-scale protein purification and proteomics sample processing. This Opentrons Protein Purification Workstation uses Biotage PhyTip columns to perform dual flow chromatography-based protein purification.

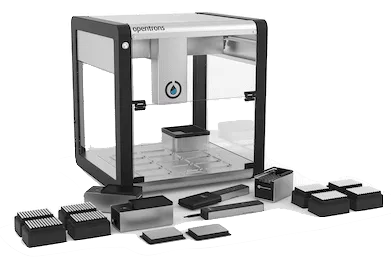

The quickest way to save time in the lab. You can easily automate a range of basic liquid handling tasks on the OT-2 pipetting robot, including tube and microplate filling, serial dilution, cherry picking, normalization and sample pooling. Choose from a range of verified protocols in our Protocol Library, create your own, or ask our team to create one for you.
Everything you need to automate your lab, including support at every step
Get a virtual or physical demo of the OT-2 and get answers about your specific application
Bundle your OT-2 with the pipettes, hardware and labware you need
Easy to unbox and set up yourself using our online guide
Contact us for onsite installation, custom protocol development and more!

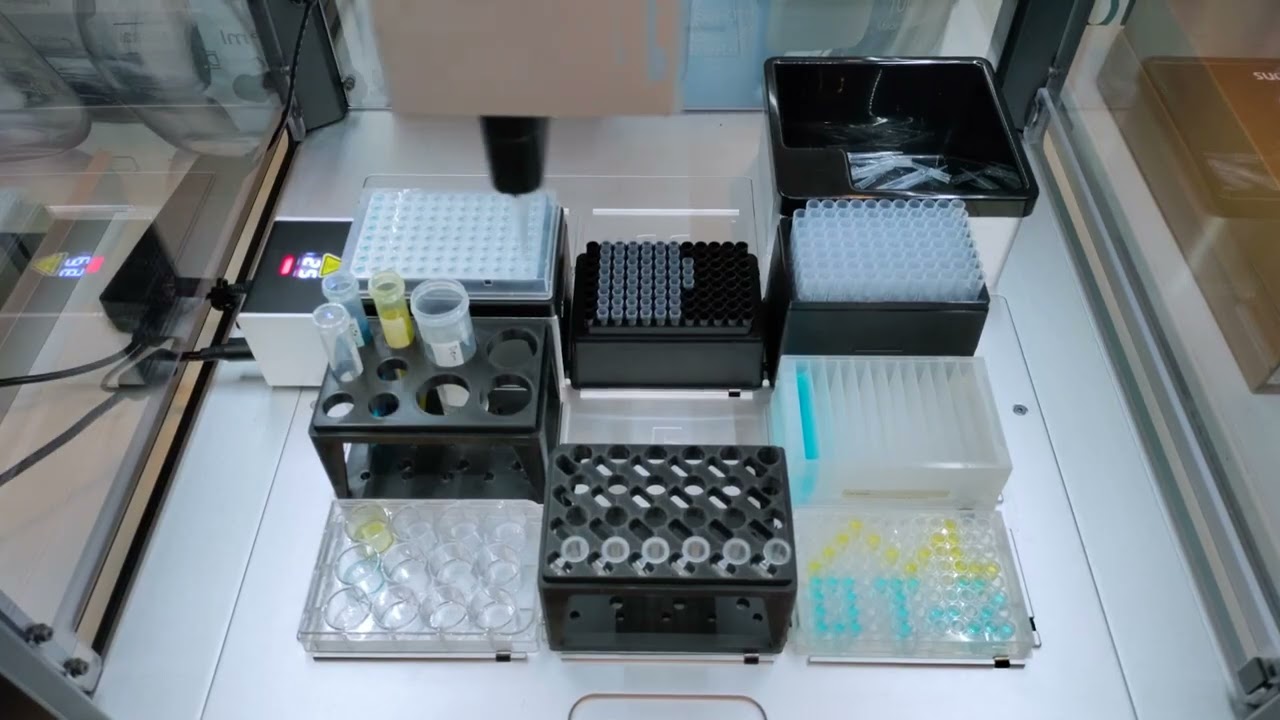

11 deck slots, plus trash, and space for two swappable, single and 8-Channel pipettes
Magnetic, Temp, Thermocycler, Heater-Shaker, and HEPA Filter modules available
Reagent and consumables agnostic
Compatible with any ANSI/SLAS-compliant labware

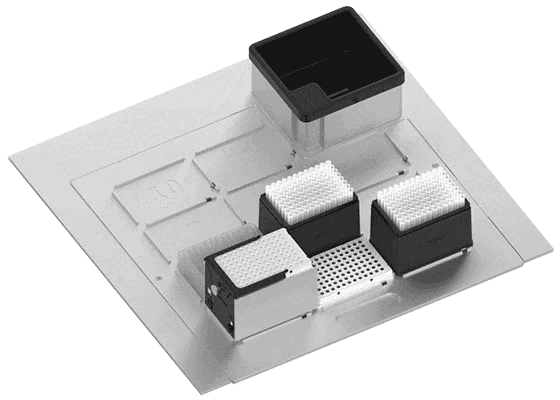

Expand your robot's capabilities with replaceable on-deck modules - including a thermocycler, heating / cooling block, and magnetic bead-based chemistry block.
A protocol is the code that runs the robot through your experiment. Opentrons have built different ways to create a protocol that are accessible for everyone – from the automation rookie to the experienced Python coder
Best for users that want a unique or complex protocol - fast
Get our experts to create a protocol optimized for your experiment
Best for new users looking to gain experience
Browse well-documented, open-source protocols
Best for users who want to create a new protocol - without having to code
Use Opentrons' intuitive drag-and-drop interface to create new protocols
Kontakt os for at få din robot installeret hos dig, for kundespecifikke protokoller og meget mere!

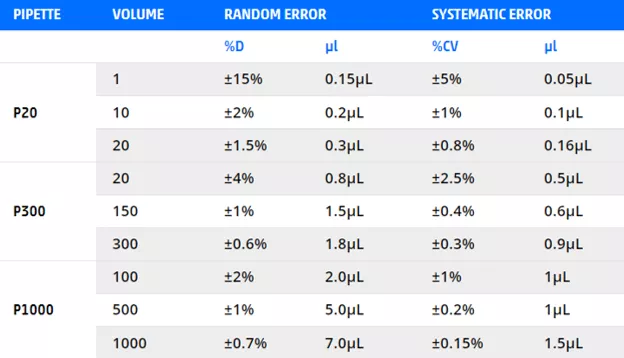

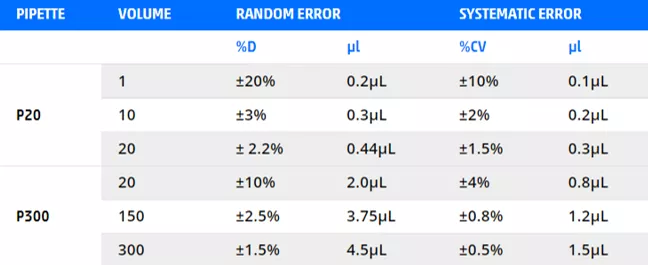

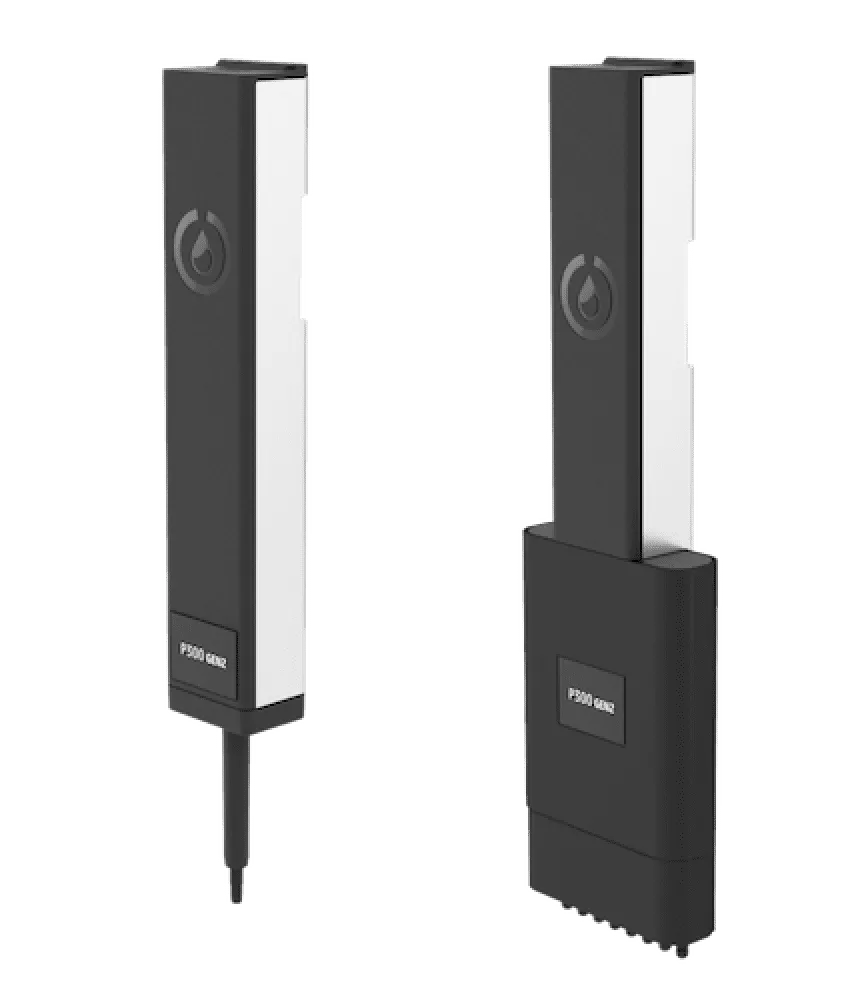

Reliable liquid transfers from 1–1000 µL with Opentrons' swappable single- and 8-channel pipettes
P20 P300 P1000
P20 P300

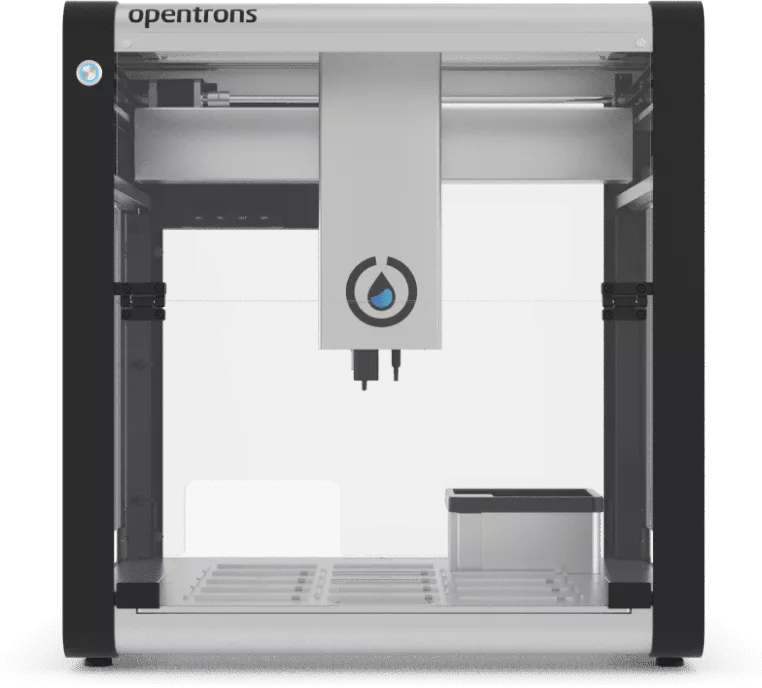

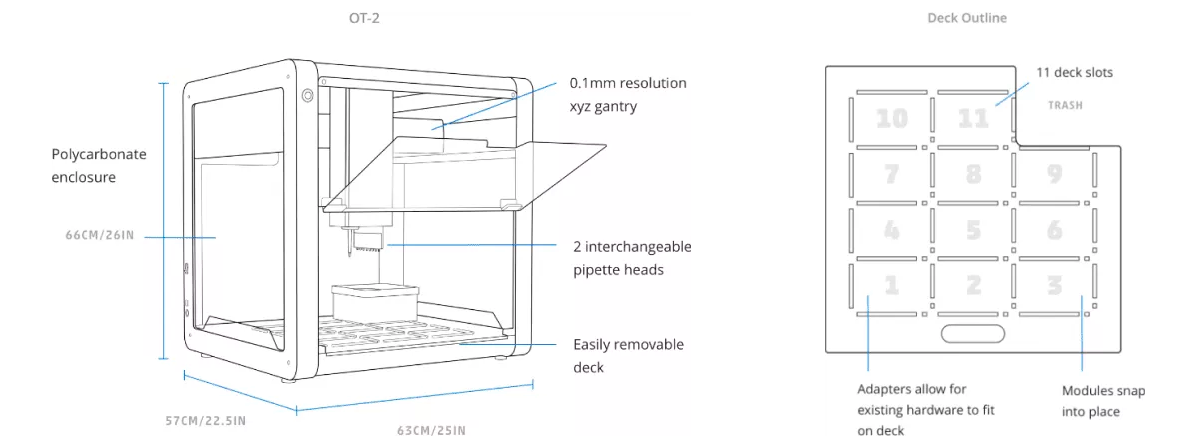

63 cm x 57 cm x 66 cm / 25 in x 22.5 in x 26 in (W,D,H) Takes up half of your standard lab bench.
48 kg or 105.8 lb
Single- and 8-channel pipetting. 2 pipette mounts, for a configuration of 1 or 2 single- or 8-channel pipettes. Pipettes are easily interchangeable.
Single-channel: 1-1000 µL 8-channel: 1-300 µL
11 deck slots enable countless configurations. Deck slots are compatible with standard SBS dimensions. Deck also includes a removable trash bin.
WiFi 2.4 GHz IEEE 802.11b/g/n, USB 2.0
Integrated video camera (Included for future or custom functionality)
Integrated audio system (Included for future or custom functionality)
Robot Power Input: 36 VDC, 6.1 A Power Adapter Input: 100-240 VAC, 50/60 Hz, 4.0 A/115 VAC, 2.0 A/230 VAC For additional power requirement information, please review this support article.
Rigid steel and CNC aluminum design.
Recommended 20–25 °C Recommended 40–60% RH
Full polycarbonate enclosure designed to limit exposure. The OT-2 is not a sterile environment. Add the Opentrons HEPA Module, or add your own UV lights.
For best practices on automating viscous liquid handling, review our application note. Viscous Liquid Handling Automation using Opentrons OT-2 ›
Interfaces with any product that has an API. Opentrons software is open-source and users can make adjustments to the software as needed to interface with other products. While all integrations are possible, they all require custom code work i.e. most customers will need to write custom libraries and install software packages that are not shipped with the robot.
Windows 10, macOS 10.10 or later, Ubuntu 12.04 or later.
Use Opentrons Tips and Opentrons Filter Tips. Opentrons guarantees the performance of Opentrons Tips which were specifically designed for the OT-2. The OT-2 was designed to accommodate all universal bore tip types, but tip quality and dimensions can vary significantly so third party tip performance cannot be guaranteed by Opentrons.
Use common labware already in our Labware Library, or add your own. If your labware fits on the OT-2 but is not in the Labware Library, it can be added by you using our Labware Creator, or by our team.
One year warranty against manufacturer defects. Stress tested to last a minimum of 3 years of full-time use.
Certifications complete (CE, FCC, NRTL, CB, ISO 9001) Not certified/validated (IVD, GMP)
Tip Handling Pick up tip Drop tip Return tip New tip (always, never, once) More…
Liquid Control Aspirate Dispense Aspirate speed Dispense speed Blowout Touch tip Mix Air gap
Utility Move to Delay User-specified pause Homing Comment
Transfer Basic transfer Volumes > Pipette Volume Distribute Consolidate
Variable Settings Speed Volume Count
Other Dispose
Out of the box, the OT-2 can support any automation-compatible, ANSI/SLAS compliant well plates, plus a wide range of snap-cap and screw-cap tubes up to a 50 mL conical with our 4-in-1 Tube Rack. You can see the full range of supported labware in our Labware Library.
You do not need to know how to code to use the Opentrons platform. Protocols can be created using Opentrons’ plug-and-play protocol design tools. We also have an Applications Engineering team that can build custom protocols for you.
You can find our community’s collection of OT-2 protocols within Opentrons' Protocol Library. Feel free to search the library for a protocol that matches your lab’s workflows!
If you don’t see a protocol that matches your lab’s processes, we offer a couple different options for creating your protocol. Additionally, you can leverage our team of engineers for a custom protocol development.
Due to the open-source nature of the robot, many of our users have found success integrating the OT-2 with third party lab equipment.
Integrations such as these would be a DIY project taken on by your lab, and would not fall under the scope of Mikrolab - Frisenette.
The OT-2 has the following certifications: CE, FCC, NRTL, ISO 9001, CB Note that the robot is not IVD or GMP certified/validated
Labs within the Opentrons community have installed the OT-2 pipetting robot in biological safety cabinets (as well as in inert atmosphere glove boxes), including Labconco’s Logic Vue Class II enclosures and Baker’s AeroPROTECT 360 enclosures. We recommend you cross-check the dimensions of the OT-2 with those of your chosen biological safety cabinet.
Schedule a demo with our Opentrons experts, no strings attached
