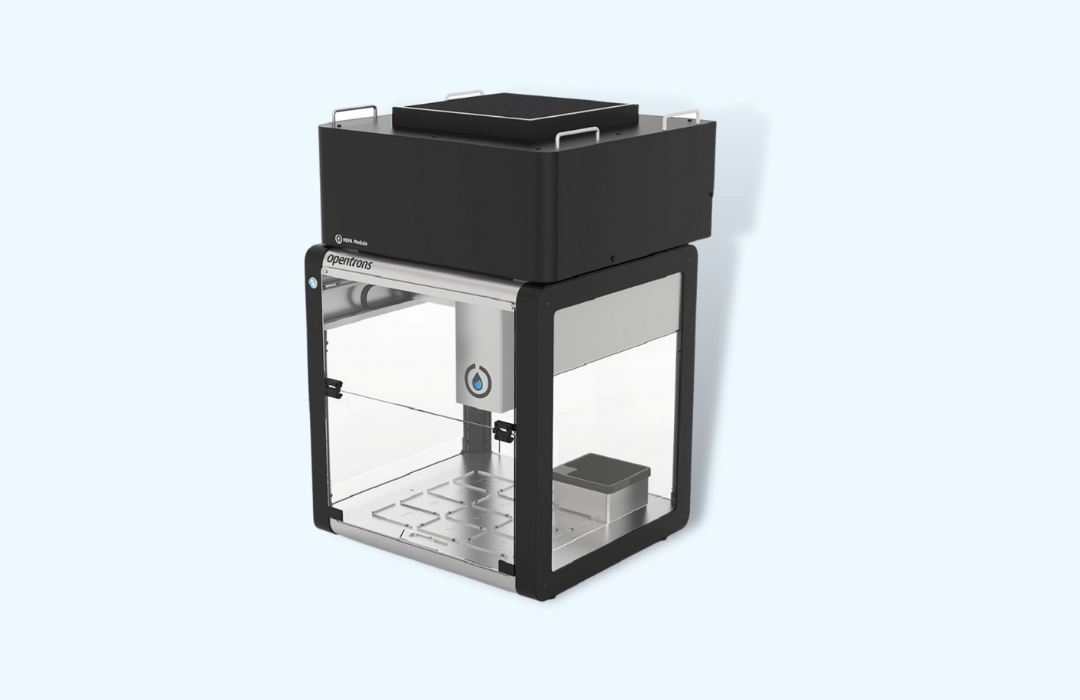

The HEPA filter removes 99.99% of 0.3 m DNA particles and biological contaminants
such as bacteria, fungi and other microorganisms from the air, creating a clean working environment inside the OT-2.

• Reduces the risk of contamination during sensitive workflows
• Vertical downward airflow of 0.4 m / s - 0.7 m / s
• 3 years fan life with moderate use
• 1 year filter life in moderate use
• Replaceable H14 HEPA filter
• Compatible with all other OT-2 hardware modules

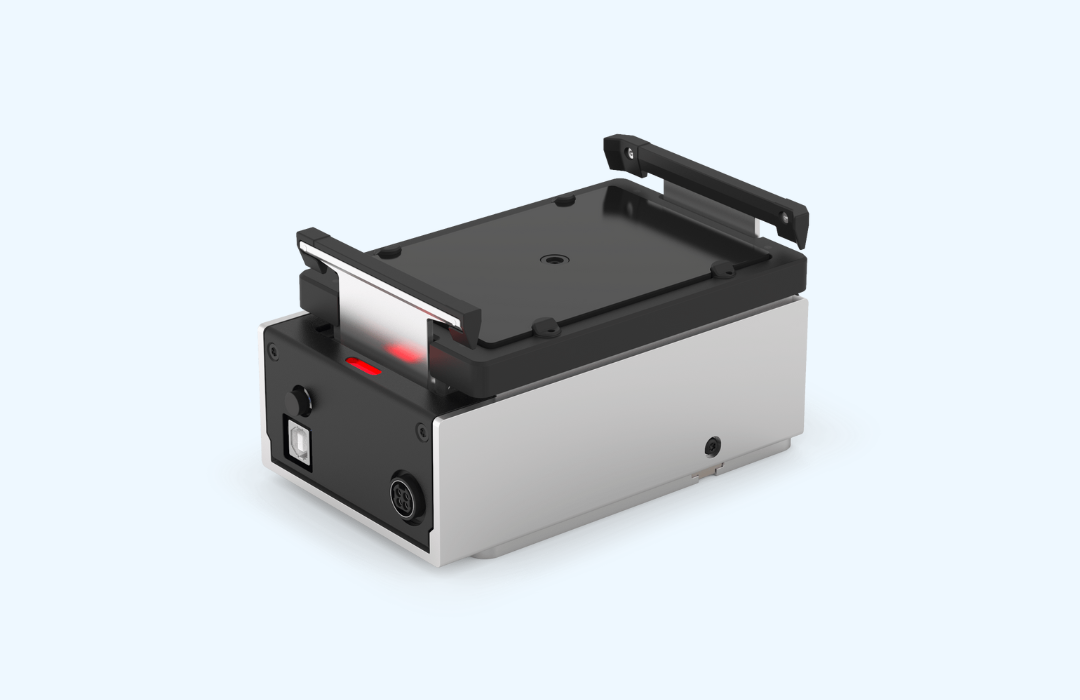

The Opentrons Heater-Shaker Module provides on-deck heating and orbital shaking of microplates. The module can be heated to 95ºC, and can shake samples from 200 to 3000 rpm. It is compatible with a number of deep-well and 96-well plates. The Heater-Shaker can be used simultaneously with other Opentrons modules on your Opentrons platform.

• Orbital shaking range of 200 to 3000 rpm
• Temperature range of ambient to 95ºC
• Active clamping and automated locking on plate sides to secure precious samples
• Fixed home position allows robot to accurately access microplate wells
• Programmable through Python API and Protocol Designer, or operate directly from the app
• Compatible with ANSI/SLAS compliant consumables

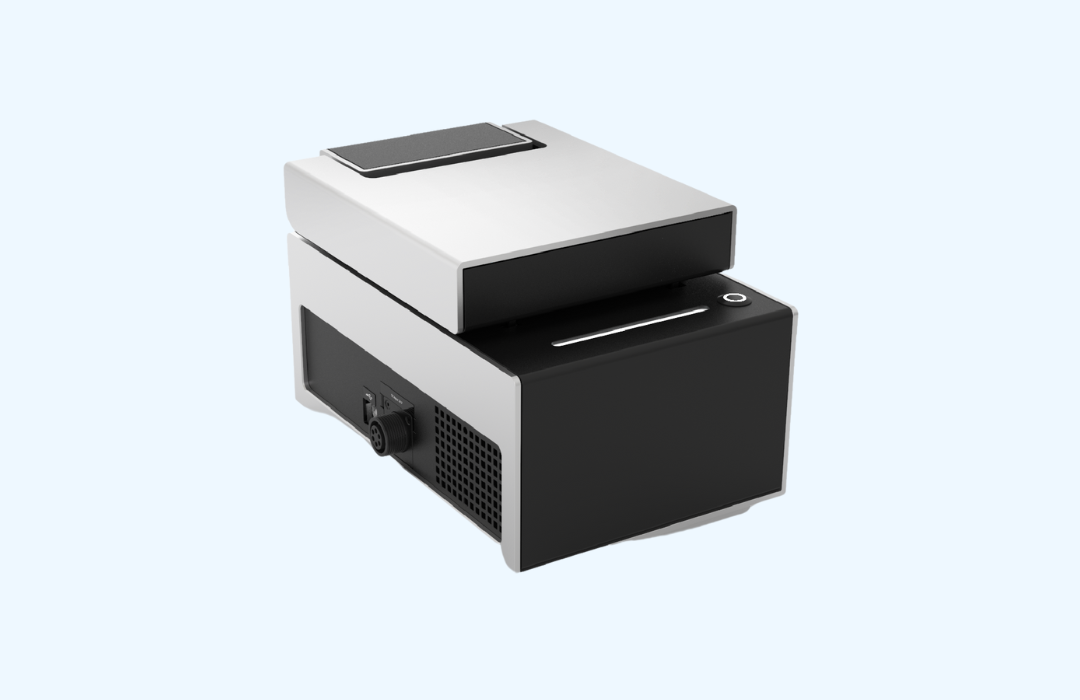

The world's cheapest fully automated thermocycler.
Get fast, accurate throughput that is comparable to equipment at 5x the price

• and free up time for other tasks in the laboratory.

• Verified and tested for Opentron's products

• Pipette samples on the deck of the OT-2

• The lid opens and closes automatically

• Program block temperatures from 4-99 ℃

• Program lid temperatures up to 110 ℃

• Volume range: 10-100 μl

• Recommended volume range for up to 80 samples-PCR: 25-100 μl

• Dimensions: 259.70mm x 172mm x 153.60mm

• Power: 120-240V

• Comes with 5 automation seals for the lid

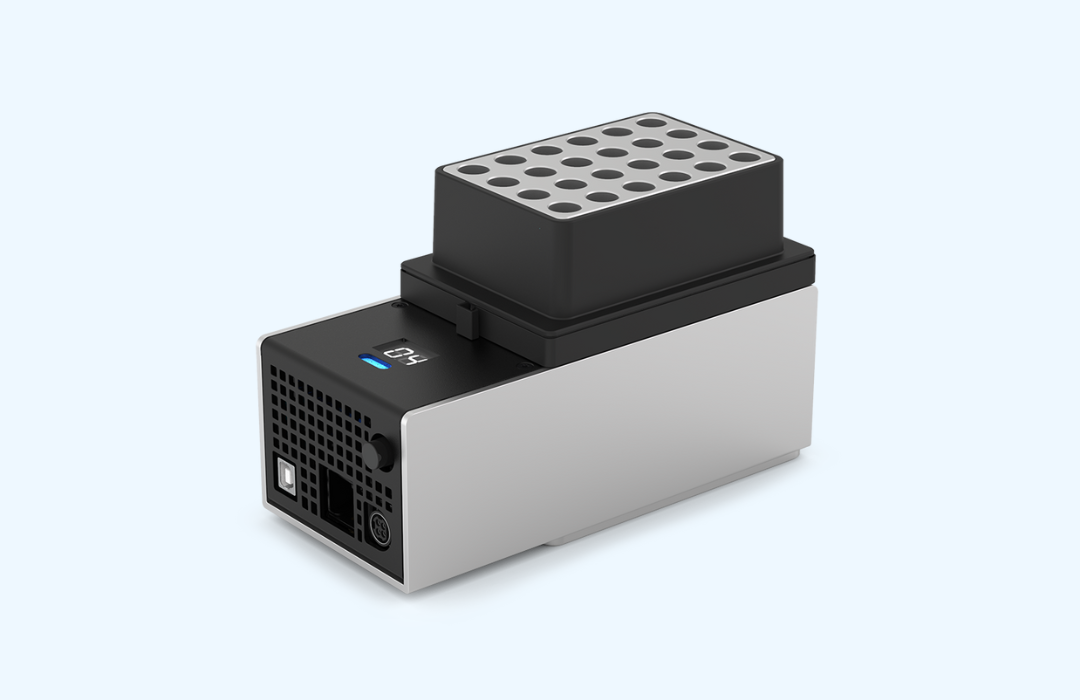

• Keeps your reagents at a constant temperature and samples between 4°C and 95°C
• Securely fits on the deck of the OT-2 robot
• 96-well plates and other laboratory accessories fit securely on the temperature module
• Extra option for heating or cooling to 1.5 ml, 2 ml or PCR strips when purchasing an aluminum block set with 3 blocks.

The magnetic module can connect and disconnect strong ferrous magnets with your laboratory equipment. Use it for magnetic bead-based protocols.

• Two adjustable plate holders

• Standard or deep-well plates

• Supports many different magnetic bead products

• Dimensions (without block): 141mm x 90mm x 97mm

• Power: 36V, 3 Amp
