VAN-SP-3 Vane spindle

ITEM NUMBER IKA0025006855

Vane spindle

Description

VAN-SP-3

Vane spindle

Technical Data

Spindle geometryVane
ConnectionThread M2.5 LH
Quick plug connectoryes
Hook connectoryes
Diameter12.7 mm
Immersion depth51 mm
Spindle length104 mm
Viscosity Accuracy (FSR)2 %
Viscosity Repeatibility (FSR)0.2 %
Min. FSR match ROTAVISC lo-vi250.7 mPa.s
Max. FSR match ROTAVISC lo-vi50146 mPa.s
Min. FSR match ROTAVISC me-vi2675 mPa.s
Max. FSR match ROTAVISC me-vi535000 mPa.s
Min. FSR match ROTAVISC hi-vi I5350 mPa.s
Max. FSR match ROTAVISC hi-vi I1070000 mPa.s
Min. FSR match ROTAVISC hi-vi II21400 mPa.s
Max. FSR match ROTAVISC hi-vi II4280000 mPa.s
Material in contact with mediumstainless steel 1.4404
Dimensions (W x H x D)14 x 106 x 14 mm
Weight0.012 kg
Permissible ambient temperature5 - 40 °C
Specifications
ITEM NUMBER IKA0025006855
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 0025006855
UNSPSC 41103312
CE-godkendt Ja
Files

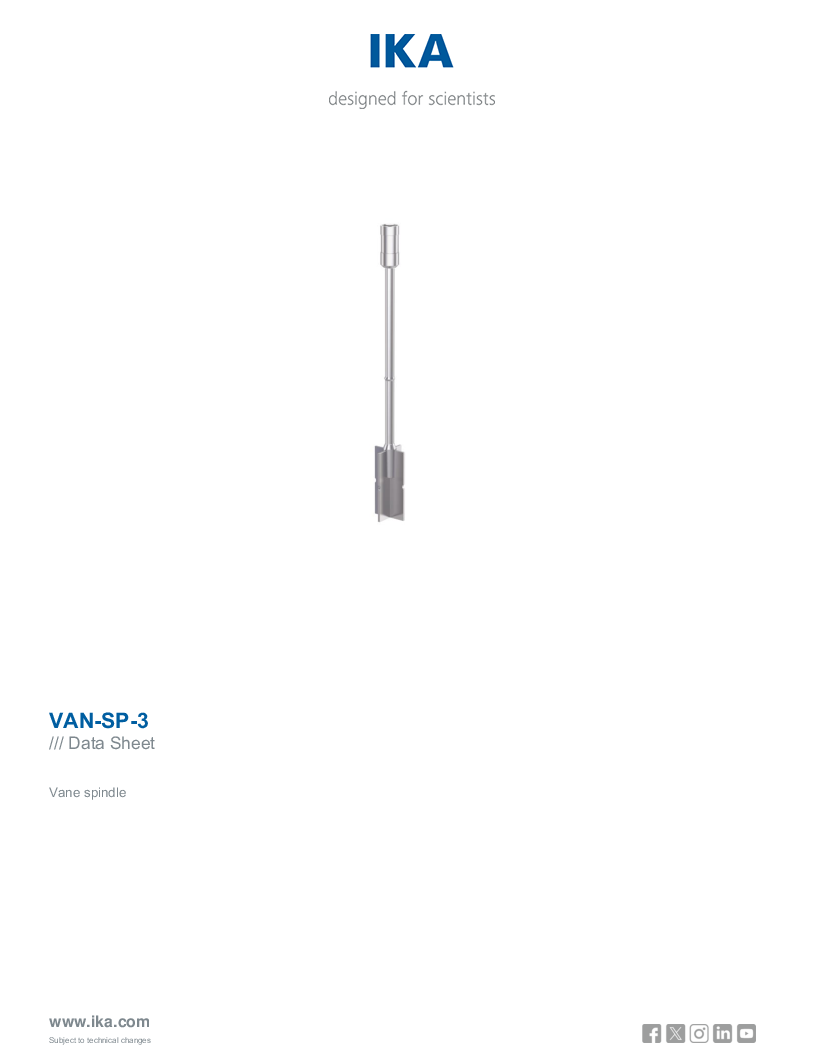

Data Sheet VAN SP 3
Data Sheet VAN SP 3
View Download
