ELVAS-C-C Closed chamber for ELVAS-1

ITEM NUMBER IKA0025008373

Closed stainless steel chamber for the adapter spindle set ELVAS-1.

Description

ELVAS-C-C

Closed stainless steel chamber for the adapter spindle set ELVAS-1.

Technical Data

Spindle geometryCylinder
ConnectionThread M2.5 LH
Diameter25.2 mm
Immersion depth90.7 mm
Spindle length161 mm
Sample volume16 ml
Flow Jacketyes
Sample container:Specified chamber
Working temperature max.100 °C
Viscosity Accuracy (FSR)2 %
Viscosity Repeatibility (FSR)0.2 %
Min. FSR match ROTAVISC lo-vi10 mPa.s
Max. FSR match ROTAVISC lo-vi600 mPa.s
Min. FSR match ROTAVISC me-vi32 mPa.s
Max. FSR match ROTAVISC me-vi2000 mPa.s
Min. FSR match ROTAVISC hi-vi I64 mPa.s
Max. FSR match ROTAVISC hi-vi I2000 mPa.s
Min. FSR match ROTAVISC hi-vi II256 mPa.s
Max. FSR match ROTAVISC hi-vi II2000 mPa.s
Material in contact with mediumAISI 316L / 1.4571
Dimensions (W x H x D)32 x 133 x 32 mm
Weight0.117 kg
Permissible ambient temperature5 - 40 °C
Specifications
ITEM NUMBER IKA0025008373
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 0025008373
UNSPSC 41103312
CE-godkendt Ja
Files

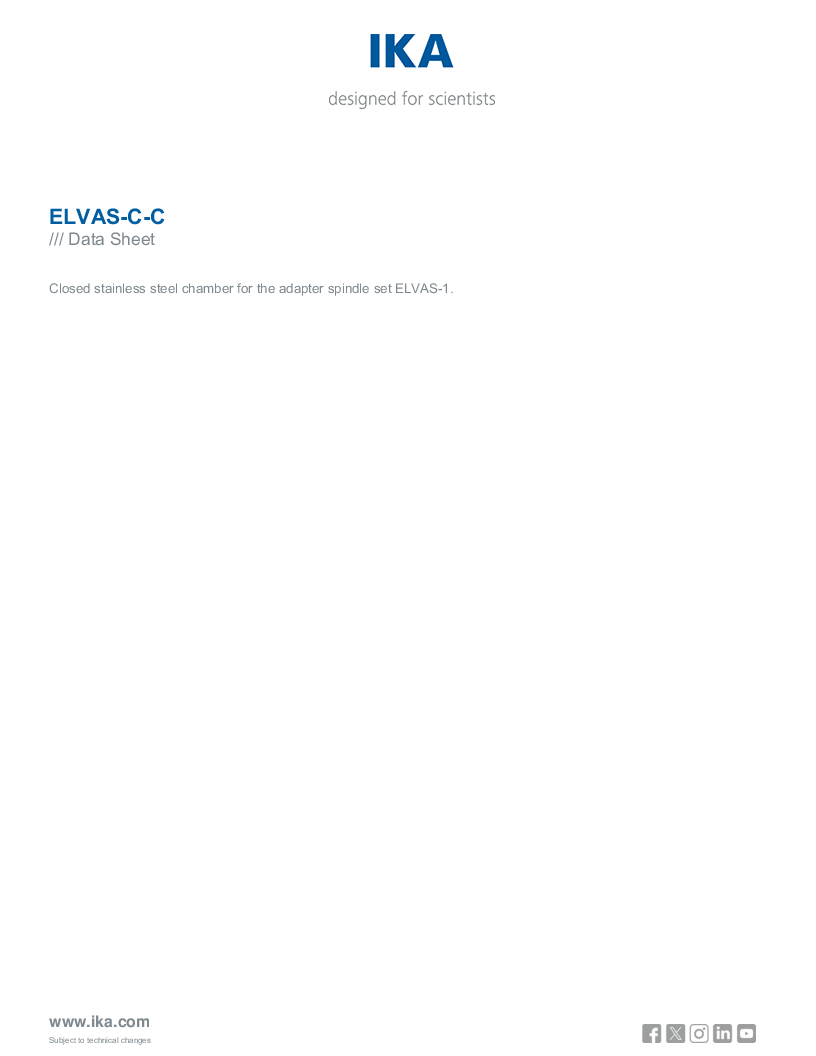

Data Sheet ELVAS C C
