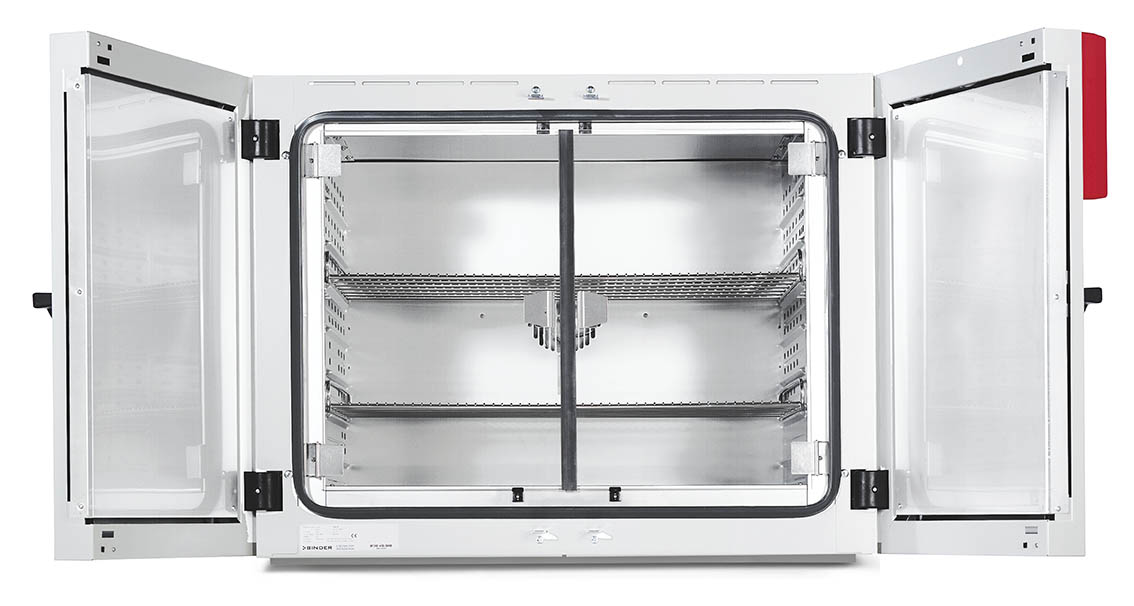

FED400-400V, Standard, Series FED Classic.Line - D

ITEM NUMBER BIN90100216

Benefits

  • Uniform drying conditions thanks to APT.line technology.
  • Identical test conditions throughout the chamber interior independent of sample size and quantity.
  • Outstanding thermal insulation saves operation costs.
Description

BINDER heating chambers of the FED series provide almost unlimited capacity and are particularly adaptable. With advanced timing functions and a adjustable fan, temperature and convection conditions are easily controlled.

Benefits

  • Uniform drying conditions thanks to APT.line technology
  • Identical test conditions throughout the chamber interior independent of sample size and quantity
  • Outstanding thermal insulation saves operation costs

Important characteristics

  • Temperature range: room temperature plus 5 °C to 300 °C
  • APT.line preheating chamber technology
  • Adjustable fan speed
  • Adjustable exhaust air flap
  • Controller with expanded timer functions
  • 2 chrome-plated racks
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Computer interface: RS 422

Performance Data Temperature

DesignationFED400-400VFED400UL-208V
Temperature range+5 °C above ambient temperature to 300 °C+5 °C above ambient temperature to 300 °C
Temperature uniformity at 150°C3.8 ± K3.8 ± K
Temperature fluctuation at 150°C0.7 ± K0.7 ± K
Heating up time to 150°C29 min29 min
Recovery time after door was opened for 30 s at 150°C6 min6 min

Air change data

DesignationFED400-400VFED400UL-208V
Air change rate at 150°C18 x/h18 x/h

Electrical data

DesignationFED400-400VFED400UL-208V
Rated Voltage400 V208 V
Power frequency50/60 Hz60 Hz
Nominal power3,4 kW3,4 kW
Unit fuse16,0 A16,0 A
Phase (Nominal voltage)3~3~

Measures

DesignationFED400-400VFED400UL-208V
Interior volume400 L400 L
Net weight of the unit (empty)145 kg145 kg
Load per rack35 kg35 kg
Permitted load90 kg90 kg
Wall clearance back160 mm160 mm
Wall clearance sidewise100 mm100 mm

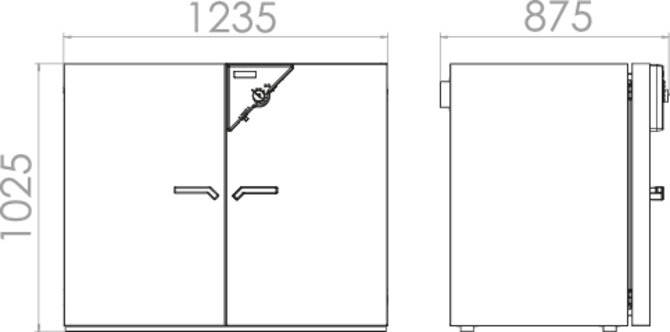

Housing dimensions not incl. fittings and connections

DesignationFED400-400VFED400UL-208V
Width net1,235 mm1,235 mm
Height net1,025 mm1,025 mm
Depth net765 mm765 mm

Internal Dimensions

DesignationFED400-400VFED400UL-208V
Interior width1,000 mm1,000 mm
Interior height800 mm800 mm
Interior depth510 mm510 mm
Unit doors22

Environment-specific data

DesignationFED400-400VFED400UL-208V
Energy consumption at 150°C1,200 Wh/h1,200 Wh/h

Fixtures

DesignationFED400-400VFED400UL-208V
Number of shelves (std./max.)2/102/10
Specifications
ITEM NUMBER BIN90100216
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 9010-0216
CE-godkendt Ja
