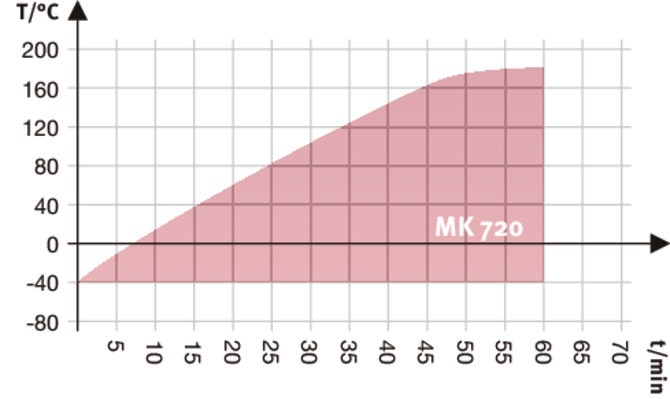

03 aufheizkurve mk 720 e5 05 2018 web 670x515
04 wk mk 720 e5 05 2018 web 670x515

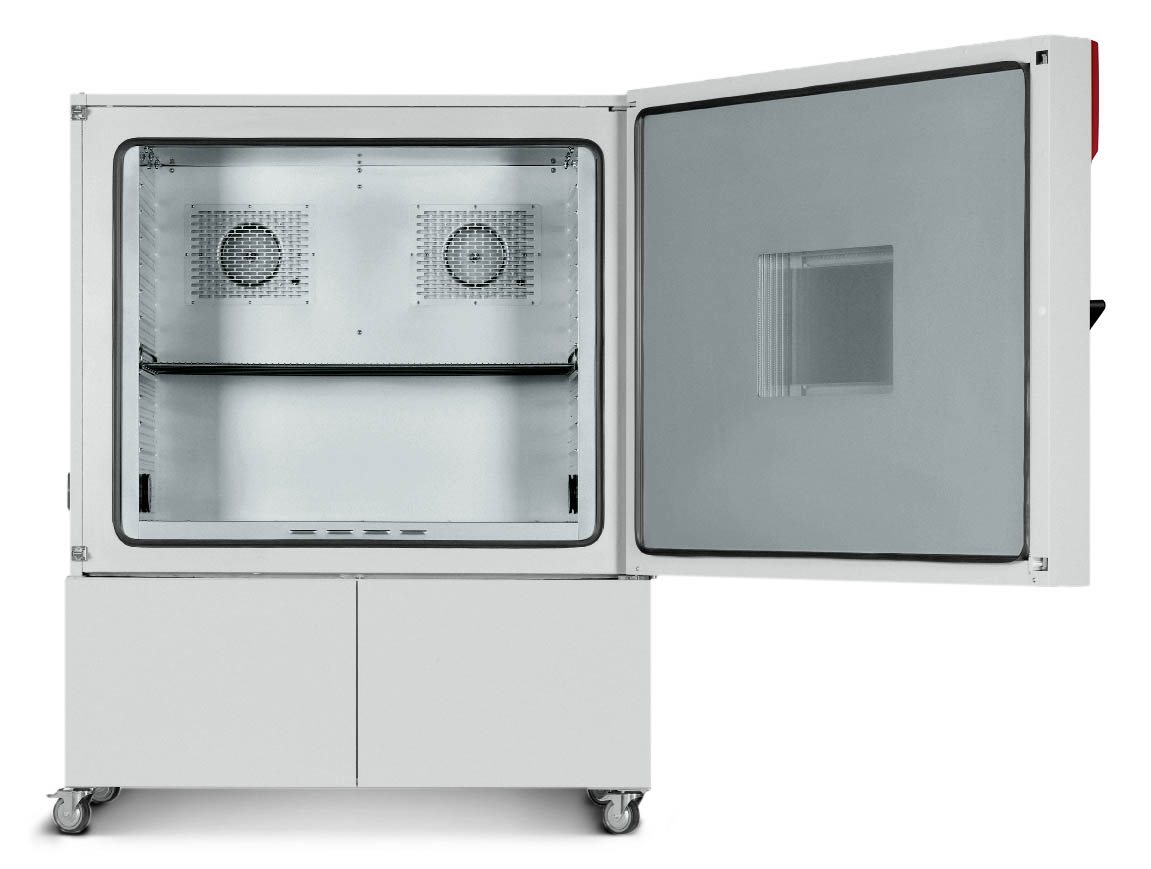

mk mkt mkf mkft 720 of e5

MK 720 Dynamisk klimakammer,-40-180C, 734 L

ITEM NUMBER BIN90200377

Benefits

  • Homogeneous climate conditions thanks to APT.line technology.
  • Comprehensive programming and data acquisition.
  • Large heated viewing window.
Description

The BINDER MK series chamber is suitable for all heat and cold tests between -40 °C and 180 °C. The MK is a clever alternative to complex individual solutions for cyclical temperature tests.

Benefits

  • Homogeneous climate conditions thanks to APT.line technology
  • Comprehensive programming and data acquisition
  • Large heated viewing window

Important characteristics

  • Temperature range: -40 °C to 180 °C
  • APT.line preheating chamber technology
  • Programmable condensation protection for test material
  • Heated viewing window with LED interior lighting
  • BINDER Multi Management Software APT-COM Basic Edition
  • Troubleshooting system with visual and audible alarms
  • Intuitive touchscreen controller with time-segment and real-time programming
  • Internal data logger, measured values can be read out in open format via USB
  • Access port with silicone plug (Models 56, 115, 240), 50 mm, left
  • 2 access ports with silicone plugs (Model 720), 80 mm, left and right
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • 4 castors, two with brakes
  • Computer interface: Ethernet
  • 230 V power socket on the right-side control panel (Models 115, 240, 720)
  • Adjustable ramp function
  • Integrated chart recorder
  • Real-time clock
  • Door heating
  • 1 stainless steel rack
  • Inner chamber made of stainless steel
  • CFC-free refrigerant R-452A
  • Cooling with compressor cooling unit

Environmental simulation chambers for rapid temperature changes

BINDER environmental simulation chambers in the MK series are the number one choice for dynamic temperature profiles. Heat and cold tests alike can be performed with precision within these climate chambers. Designed for rapid temperature changes, the environmental simulation chambers can be used within a temperature range of between -40 °C and +180 °C. The patented APT.line air flow concept guarantees accurate measured values at every temperature setting - across the entire usable space and even when the climate chambers are fully loaded.
BINDER environmental simulation chambers in the MK series feature programmable condensation protection for samples. Equipped with a heated viewing window with LED interior lighting, these chambers can be adjusted to suit any requirements with ease using the controller with interval programming. The large access area even makes equipping the chambers nice and convenient.

BINDER environmental simulation chambers for flexibility and precision

The BINDER APT-COM 3 Basic Edition communication software and a troubleshooting system with visual and acoustic alarms are also included. These environmental simulation chambers offer maximum flexibility in practice thanks to their stable casters with locking brakes, which enable them to be transported from A to B in no time and then securely locked in position, with the water supply independent of location.
Dynamic climate chambers from BINDER are suitable for a wide range of applications, including material testing, aging and stress tests, and environmental simulation. Whatever they are tasked with, these units impress with their precision and performance, delivering reliable, norm-compliant test results and providing you with the basis for working with accuracy and success. The opportunities available with these environmental simulation chambers extend well beyond those offered by a standard heating chamber.

Performance Data Temperature

DesignationMK720-400VMK720-480V-C
Temperature range-40...180 °C-40...180 °C
Temperature uniformity dependent on set value0.3...2 ± K0.3...2 ± K
Temperature fluctuation dependent on set value0.1...0.5 ± K0.1...0.5 ± K
Average heating-up rate according to IEC 60068-3-54 K/min4 K/min
Cooling down time from 180°C to -40°C100 min100 min
Average cooling down time according to IEC 60068-3-54.5 K/min4.5 K/min

Electrical data

DesignationMK720-400VMK720-480V-C
Rated Voltage400 V480 V
Power frequency50 Hz60 Hz
Nominal power8,7 kW8,7 kW
Unit fuse16,0 A16,0 A
Phase (Nominal voltage)3~3~

Measures

DesignationMK720-400VMK720-480V-C
Interior volume734 L734 L
Net weight of the unit (empty)570 kg570 kg
Load per rack40 kg40 kg
Permitted load160 kg160 kg
Wall clearance back300 mm300 mm
Wall clearance sidewise200 mm200 mm

Housing dimensions not incl. fittings and connections

DesignationMK720-400VMK720-480V-C
Width net1,580 mm1,580 mm
Height net2,005 mm2,005 mm
Depth net1,140 mm1,140 mm

Internal Dimensions

DesignationMK720-400VMK720-480V-C
Interior width1,200 mm1,200 mm
Interior height1,020 mm1,020 mm
Interior depth600 mm600 mm
Viewing window width508 mm508 mm
Viewing window height300 mm300 mm
Unit doors11

Environment-specific data

DesignationMK720-400VMK720-480V-C
Sound-pressure level65 dB(A)67 dB(A)
Energy consumption at 20°C1,900 Wh/h1,900 Wh/h

Fixtures

DesignationMK720-400VMK720-480V-C
Number of shelves (std./max.)1/111/11
Specifications
ITEM NUMBER BIN90200377
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 9020-0377
CE-godkendt Ja
