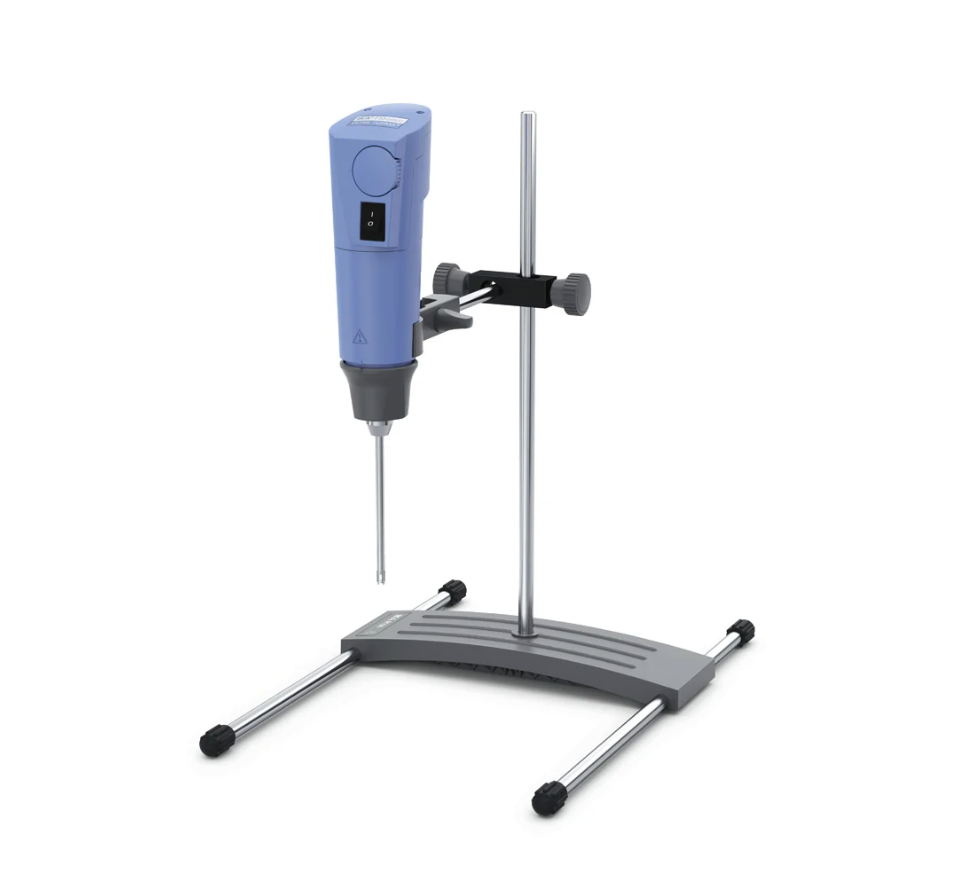

IKA T 10 basic ULTRA-TURRAX, homogenisator

ITEM NUMBER IKA0003737000

Small dispersing instrument for volumes from 0.5 - 100 ml (H2O). It offers a wide speed range from 8000 - 30,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements guarantees a wide range of applications.

Description

T 10 basic ULTRA-TURRAX®

The images do not correspond to the scope of delivery.

Small dispersing instrument for volumes from 0.5 - 100 ml (H2O). It offers a wide speed range from 8000 - 30,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements guarantees a wide range of applications.

  • Quick-connect coupling for changing dispersing elements easily
  • Ideal for manual operation due to its light weight and ergonomic design
  • Extremely mobile due to direct line power (no transformer required)
  • Stainless steel dispersing elements can be cleaned quickly and easily as they can be dismounted without tools
  • Plastic disposable dispersing elements are available in two sizes, particularly suitable for PCR analysis
  • High performance drive ensures immense speed stability
  • Quiet operation

The dispersing tool is not included in the scope of delivery.

Scope of delivery

  • T 10 basic ULTRA-TURRAX®
  • R 200 Clamp

Technical Data

Motor rating input125 W
Motor rating output75 W
Volume range (H2O)0.0005 - 0.1 l
Viscosity max.5000 mPas
Speed range8000 - 30000 rpm
Speed displayscale
Speed adjustmentstepless
Noise without element65 dB(A)
Extension arm diameter8 mm
Extension arm length100 mm
Process typebatch
Power-ON time10 min
Power-OFF time5 min
Dimensions (W x H x D)56 x 178 x 66 mm
Weight0.61 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 30
Voltage230 V
Frequency50/60 Hz
Power input125 W
Specifications
ITEM NUMBER IKA0003737000
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 0003737000
Vægt 0,61
CE-godkendt Ja
