IKA ULTRA-TURRAX® Tube Drive P control

ITEM NUMBER IKA0025005836

The new IKA UTTD power control disperser gets its name from an even more powerful motor. The disperser assures the best stirring, dispersing, grinding and homogenisation results and has been devised in particular for the safe processing of infectious, toxic or odour-intensive samples.

Description

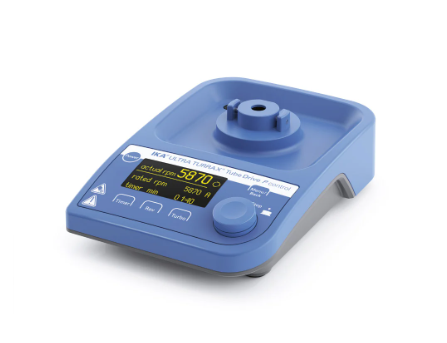

ULTRA-TURRAX® Tube Drive P control Workstation

The images do not correspond to scope of delivery.

The new IKA UTTD power control disperser gets its name from an even more powerful motor. The disperser assures the best stirring, dispersing, grinding and homogenisation results and has been devised in particular for the safe processing of infectious, toxic or odour-intensive samples.

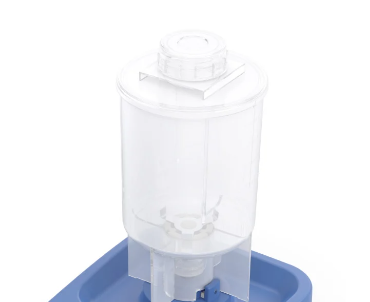

Disposable tubes
The sealable disposable tubes have been optimised for your application.
They reduce the amount of cleaning required and rule out any risk of cross-contamination.

Programmable test conditions
Time, energy, volume: You specify and systematically program the
test conditions and store frequently used parameters in your library.

Adjustable change in direction of rotation
When, and how often, the direction of rotation should be changed
is very easily set using the clear and multilingual menu.

Turbo button
Even more intensive mixing, dispersing or grinding at your
fingertips: All of this is achieved with the turbo button. Over short
periods, rotational speeds of up to 8,000 rpm can be achieved.

Scope of delivery

  • ULTRA-TURRAX® Tube Drive P control
  • ST-20 Stirring tube, 20 ml (3 pcs.)
  • DT-20 Dispersing tube, 20 ml
  • Glass balls (6.0 mm) for BMT tubes
  • Stainless steel (5.0 mm) balls for BMT tubes
  • Removal hook
  • Plastic hose for drainage
  • USB A-B Cable

Technical Data

Motor rating input36 W
Motor rating output28 W
Speed displayOLED
Speed range400 - 8000 rpm
Viscosity max.5000 mPas
Timeryes
Timer displayOLED
Speed deviation3 %
Speed adjustment10 RPM Steps
Noise without element50 dB(A)
Process typebatch
Reversible direction of rotationyes
Dimensions (W x H x D)122 x 54 x 178 mm
Weight1.5 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 20
USB interfaceyes
Voltage100 - 240 V
Frequency50/60 Hz
Power input36 W
DC Voltage24 V=
Current consumption1500 mA
Specifications
ITEM NUMBER IKA0025005836
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 0025005836
Vægt 1,5
CE-godkendt Ja
