IKA RV 10 digital with Dry Ice Condenser coated

ITEM NUMBER IKA0010006364

The RV 10 digital represents the continual enhancement of the IKA RV 10 Rotary Evaporator line. The unit comes with a new universal heating bath, vertical glassware, state-of-the-art safety features and digital connectivity. The RV 10 digital is a robust and reliable lab companion.

Description

RV 10 digital with Dry Ice Condenser coated

The RV 10 digital represents the continual enhancement of the IKA RV 10 Rotary Evaporator line. The unit comes with a new universal heating bath, vertical glassware, state-of-the-art safety features and digital connectivity. The RV 10 digital is a robust and reliable lab companion.
The package with dry ice condenser is particularly suitable for the distillation of low-boiling solvents.

Scope of delivery

  • RV 10 digital FLEX
  • RV 10.84 Evaporation flask (NS 29/32, 1.000 ml)
  • RV 10.203 Receiving flask, coated (KS 35/20, 1.000 ml)

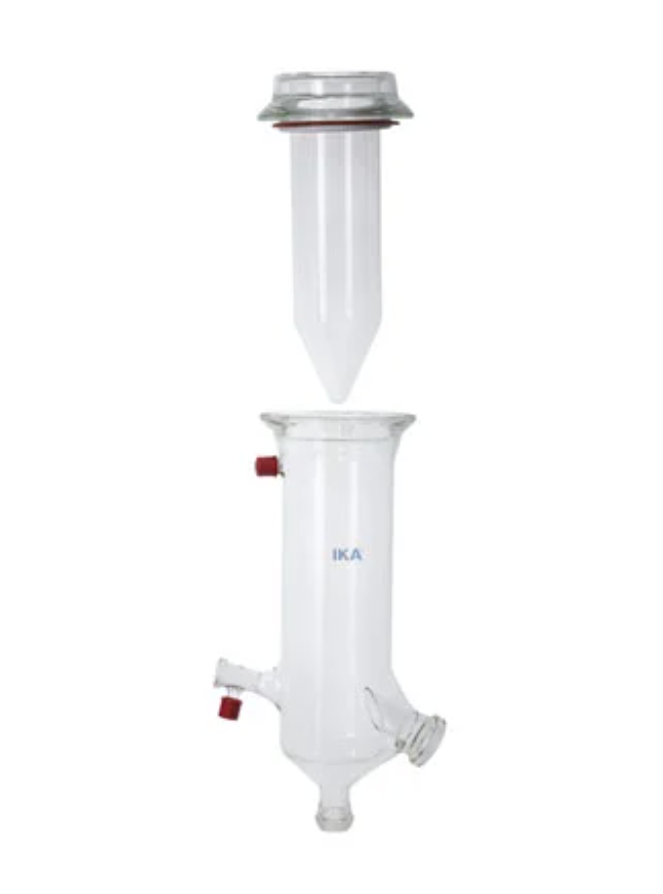

  • RV 10.40 Dry Ice Condenser, coated

Technical Data

Type of coolingDry ice condenser
Cooling surface620 cm2
Motor principleDC
Speed range5 - 280 rpm
Reversible direction of rotationyes
LiftMotor
Stroke140 mm
Heating temperature rangeroom temp. - 180 °C
Heat output1300 W
Set temperature resolution±1 K
Filling volume max.3 l
Timeryes
Dimensions (W x H x D)500 x 430 x 440 mm
Weight20 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 20
RS 232 interfaceyes
Voltage115 V
Frequency50/60 Hz
Power input1400 W
