Binder BF400 Inkubator, std., CL, 100°C, 400 liter

ITEM NUMBER BIN90100241

Benefits

  • Safe and reproducible results even under high batch throughputs in long-term operation
  • Disinfection routine at 100 °C
  • Stable atmosphere by inner glass door
Description

The BINDER incubator of the BF series with mechanical convection is suitable for all gentle incubation applications, particularly under a full load and large batch throughputs. This incubator is extremely homogeneous and has quick recovery times.

Benefits

  • Safe and reproducible incubation even under high batch throughputs in long-term operation
  • Disinfection routine at 100 °C
  • Stable atmosphere by inner glass door

Important characteristics

  • Temperature range: room temperature plus 5 °C to 100 °C
  • APT.line preheating chamber technology
  • Adjustable fan speed
  • Adjustable exhaust air flap
  • Controller with timer functions
  • Inner door made of tempered safety glass
  • 2 chrome-plated racks
  • Class 3.1 independent temperature safety device (DIN 12880) with visual temperature alarm
  • Computer interface: RS 422

Incubators with forced convection for challenging incubation tasks

BINDER offers incubators to suit different laboratory requirements. Alongside incubators with mechanical adjustment, the Classic.Line also includes incubators with natural convection and, in the BF series, incubators with forced convection, which guarantee quick temperature equalization through forced convection after the chamber door has been opened.
Operating within a temperature range of between 5 °C and 100 °C, these incubators with forced convection all have an adjustable exhaust air flap and the fan speed can be adjusted on an individual basis. The proven APT.line preheating chamber technology and the cooling system guarantee maximum precision and results that are reproducible in every laboratory test.

Incubators with forced convection for precision, functionality, and usability

The BINDER BF series incubators with forced convection are also ideal for challenging incubation tasks, with safety and precision guaranteed even when fully loaded and under high batch throughputs. Operation with forced convection is unbelievably homogeneous, while the incubator also offers speedy recovery times. The incubator with forced convection boasts high usability thanks to its straightforward controller with timer functions. The units can be stacked on top of one another for an optimum ratio between use and space needed. Reliable decontamination is another advantage afforded by these incubators. The disinfection routine at 100 °C minimizes the risk of contamination, while the premium stainless steel inner chamber does not have any built-in fixtures, allowing for ease of cleaning.
This BINDER incubator with forced convection is energy efficient, so is also extremely economical during operation.

Performance Data Temperature

DesignationBF400-230VBF400UL-120V
Temperature range+5 °C above ambient temperature to 100 °C+5 °C above ambient temperature to 100 °C
Temperature uniformity at 37°C0.4 ± K0.4 ± K
Temperature fluctuation at 37°C0.1 ± K0.1 ± K
Heating up time to 37°C12 min12 min
Recovery time after door was opened for 30 s at 37°C5 min5 min

Electrical data

DesignationBF400-230VBF400UL-120V
Rated Voltage230 V120 V
Power frequency50/60 Hz60 Hz
Nominal power0,85 kW0,85 kW
Unit fuse12,5 A12,5 A
Phase (Nominal voltage)1~1~

Measures

DesignationBF400-230VBF400UL-120V
Interior volume400 L400 L
Net weight of the unit (empty)145 kg145 kg
Load per rack35 kg35 kg
Permitted load90 kg90 kg
Wall clearance back160 mm160 mm
Wall clearance sidewise100 mm100 mm

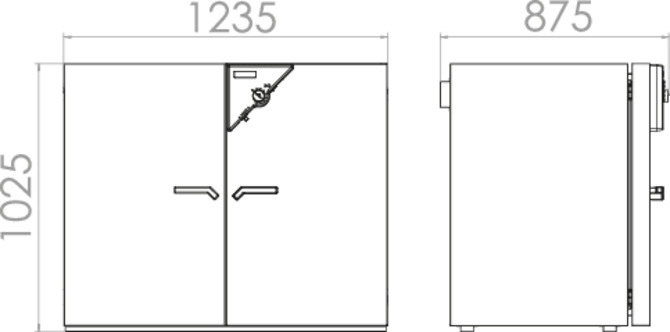

Housing dimensions not incl. fittings and connections

DesignationBF400-230VBF400UL-120V
Width net1,235 mm1,235 mm
Height net1,025 mm1,025 mm
Depth net765 mm765 mm

Internal Dimensions

DesignationBF400-230VBF400UL-120V
Interior width1,000 mm1,000 mm
Interior height800 mm800 mm
Interior depth500 mm500 mm
Unit doors22

Environment-specific data

DesignationBF400-230VBF400UL-120V
Energy consumption at 37°C56 Wh/h56 Wh/h

Fixtures

DesignationBF400-230VBF400UL-120V
Number of shelves (std./max.)2/92/9
Specifications
ITEM NUMBER BIN90100241
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 9010-0241
Type Udstyr
CE-godkendt Ja
