Binder BF720 Inkubator, std., AL, 100°C, 734 liter

Name: Binder BF720 Inkubator, std., AL, 100°C, 734 liter
Brand: BINDER
SKU: BIN90100321
Price: 75411.25 DKK
Availability: InStock

ITEM NUMBER BIN90100321

Benefits

Excellent temporal and spatial temperature accuracy
High process reliability
100°C disinfection routine

Description

The BINDER incubator of the BF Avantgarde.Line series with forced convection is suitable for all gentle incubation applications, particularly under a full load and large batch throughputs. This incubator is extremely homogeneous and has quick recovery times.

Benefits

Excellent temporal and spatial temperature accuracy
High process reliability
100 °C disinfection routine

Important characteristics

Temperature range (model 56 | 260): ambient temperature plus 7 °C to 100 °C
Temperature range (model 115): ambient temperature plus 8 °C to 100 °C
High temperature accuracy thanks to APT.line technology
Forced convection
Controller with LCD display
Electromechanical control of the exhaust air flap
Inner door made of tempered safety glass
2 chrome-plated racks
Units up to 115 L are stackable
4 stable castors, two with brakes, from 720 liters
Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
Ergonomic handle design
USB port for recording data

Incubators with forced convection for challenging incubation tasks

BINDER offers incubators to suit different laboratory requirements. Alongside incubators with mechanical adjustment, the Classic.Line also includes incubators with natural convection and, in the BF series, incubators with forced convection, which guarantee quick temperature equalization through forced convection after the chamber door has been opened.
Operating within a temperature range of between 5 °C and 100 °C, these incubators with forced convection all have an adjustable exhaust air flap and the fan speed can be adjusted on an individual basis. The proven APT.line preheating chamber technology and the cooling system guarantee maximum precision and results that are reproducible in every laboratory test.

Incubators with forced convection for precision, functionality, and usability

The BINDER BF series incubators with forced convection are also ideal for challenging incubation tasks, with safety and precision guaranteed even when fully loaded and under high batch throughputs. Operation with forced convection is unbelievably homogeneous, while the incubator also offers speedy recovery times. The incubator with forced convection boasts high usability thanks to its straightforward controller with timer functions. The units can be stacked on top of one another for an optimum ratio between use and space needed. Reliable decontamination is another advantage afforded by these incubators. The disinfection routine at 100 °C minimizes the risk of contamination, while the premium stainless steel inner chamber does not have any built-in fixtures, allowing for ease of cleaning.
This BINDER incubator with forced convection is energy efficient, so is also extremely economical during operation.

Performance Data Temperature

Designation	BF720-230V	BF720UL-240V
Temperature range	+10 °C above ambient temperature to 100 °C	+10 °C above ambient temperature to 100 °C
Temperature uniformity at 100°C	1.6 ± K	1.6 ± K
Temperature uniformity at 37°C	0.3 ± K	0.3 ± K
Temperature fluctuation at 100°C	0.2 ± K	0.2 ± K
Temperature fluctuation at 37°C	0.1 ± K	0.1 ± K
Heating up time to 100°C	45 min	45 min
Heating up time to 37°C	15 min	15 min
Recovery time after door was opened for 30 s at 37°C	4 min	4 min

Electrical data

Designation	BF720-230V	BF720UL-240V
Rated Voltage	230 V	240 V
Power frequency	50/60 Hz	60 Hz
Nominal power	1,75 kW	1,85 kW
Phase (Nominal voltage)	1~	1~

Measures

Designation	BF720-230V	BF720UL-240V
Interior volume	734 L	734 L
Net weight of the unit (empty)	166 kg	166 kg
Load per rack	45 kg	45 kg
Permitted load	315 kg	315 kg
Wall clearance back	160 mm	160 mm
Wall clearance sidewise	100 mm	100 mm

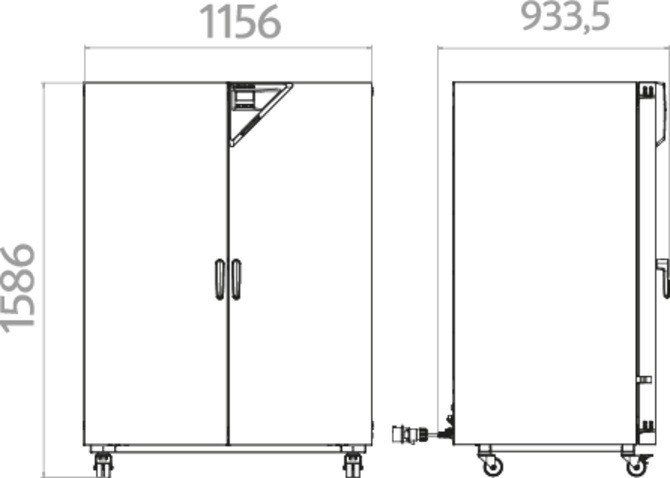

Housing dimensions not incl. fittings and connections

Designation	BF720-230V	BF720UL-240V
Width net	1,165 mm	1,165 mm
Height net	1,590 mm	1,590 mm
Depth net	870 mm	870 mm

Internal Dimensions

Designation	BF720-230V	BF720UL-240V
Interior width	1,000 mm	1,000 mm
Interior height	1,300 mm	1,300 mm
Interior depth	565 mm	565 mm
Inner doors	2	2
Unit doors	2	2

Environment-specific data

Designation	BF720-230V	BF720UL-240V
Sound-pressure level	43 dB(A)	43 dB(A)
Energy consumption at 100°C	580 Wh/h	580 Wh/h
Energy consumption at 37°C	130 Wh/h	130 Wh/h
