Binder FD-S56 Varmeskab, SL, FK, 55 liter

ITEM NUMBER BIN90900018

Benefits

  • Easy handling.
  • Accurate temperature control.
  • Simple and ergonomic door opening.
Description

The new products in the Solid.Line impress with their tried-and-tested BINDER quality and reliability. They are suited to drying and heating. The attributes of the Solid.Line are geared towards the application in question and therefore used in research and quality assurance.

Benefits

  • Easy handling
  • Accurate temperature control
  • Simple and ergonomic door opening

Important characteristics

  • Temperature range: ambient temperature +10 °C to 250 °C
  • APT.line preheating chamber technology
  • Forced convection
  • Adjustable exhaust air flap
  • Controller with timer function
  • 1 chrome-plated rack, incl. shelf supports
  • Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm

Performance Data Temperature

DesignationFDS056-230VFDS056UL-120V
Temperature range+10 °C above ambient temperature to 250 °C+10 °C above ambient temperature to 250 °C
Temperature uniformity at 150°C2.6 ± K2.6 ± K
Temperature fluctuation at 150°C0.4 ± K0.4 ± K
Heating up time to 150°C15 min15 min
Recovery time after door was opened for 30 s at 150°C5 min5 min

Air change data

DesignationFDS056-230VFDS056UL-120V
Air change rate at 100°C4 x/h4 x/h

Electrical data

DesignationFDS056-230VFDS056UL-120V
Rated Voltage230 V120 V
Power frequency50/60 Hz60 Hz
Nominal power1,1 kW1,2 kW
Unit fuse6,3 A6,3 A
Phase (Nominal voltage)1~1~

Measures

DesignationFDS056-230VFDS056UL-120V
Interior volume55 L55 L
Net weight of the unit (empty)35 kg35 kg
Load per rack15 kg15 kg
Permitted load45 kg45 kg
Wall clearance back160 mm160 mm
Wall clearance sidewise100 mm100 mm

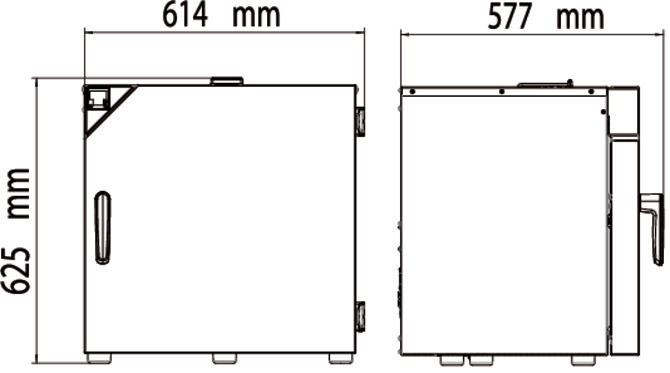

Housing dimensions not incl. fittings and connections

DesignationFDS056-230VFDS056UL-120V
Width net614 mm614 mm
Height net625 mm625 mm
Depth net577 mm577 mm

Internal Dimensions

DesignationFDS056-230VFDS056UL-120V
Interior width400 mm400 mm
Interior height440 mm440 mm
Interior depth310 mm310 mm
Unit doors11

Environment-specific data

DesignationFDS056-230VFDS056UL-120V
Sound-pressure level43 dB(A)43 dB(A)
Energy consumption at 150°C290 Wh/h290 Wh/h

Fixtures

DesignationFDS056-230VFDS056UL-120V
Number of shelves (std./max.)1/31/3
Specifications
ITEM NUMBER BIN90900018
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 9090-0018
CE-godkendt Ja
