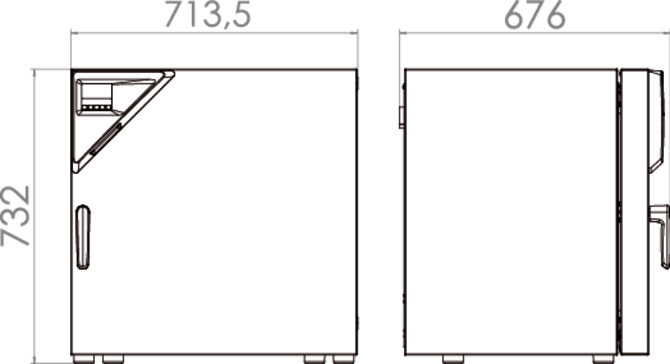

01 abmessungen bd bf ed fd fed115 avantgarde web 670x515 3

Binder FD115 Varmeskab, AL, FK, 115 liter

ITEM NUMBER BIN90100305

Benefits

  • Best energy efficiency on the market.
  • Excellent temporal and spatial temperature accuracy.
  • USB connection for recording data.
  • Temperature range up to +300 °C.
Description

A BINDER FD series Avantgarde.Line heating oven is always used when fast drying and sterilization is required. Thanks to its fully homogeneous temperature distribution, quick dynamics and powerful fan, this heating oven saves valuable time.

Benefits

  • Best energy efficiency on the market
  • Excellent temporal and spatial temperature accuracy
  • USB connection for recording data
  • Temperature range up to 300 °C

Important characteristics

  • Temperature range: ambient temperature plus 10 °C to 300 °C
  • High temperature accuracy thanks to APT.line technology
  • Forced convection
  • Controller with LCD display
  • Electromechanical control of the exhaust air flap
  • 2 chrome-plated racks
  • Units up to 115 L are stackable
  • Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm
  • Ergonomic handle design
  • USB port for recording data

Performance Data Temperature

DesignationFD115-230VFD115UL-120V
Temperature range+10 °C above ambient temperature to 300 °C+10 °C above ambient temperature to 300 °C
Temperature uniformity at 150°C1.7 ± K1.7 ± K
Temperature fluctuation at 150°C0.3 ± K0.3 ± K
Heating up time to 150°C18 min18 min
Recovery time after door was opened for 30 s at 150°C4 min4 min

Air change data

DesignationFD115-230VFD115UL-120V
Air change rate at 100°C32 x/h32 x/h

Electrical data

DesignationFD115-230VFD115UL-120V
Rated Voltage230 V120 V
Power frequency50/60 Hz60 Hz
Nominal power1,3 kW1,4 kW
Unit fuse6,3 A12,5 A
Phase (Nominal voltage)1~1~

Measures

DesignationFD115-230VFD115UL-120V
Interior volume116 L116 L
Net weight of the unit (empty)54 kg54 kg
Load per rack30 kg30 kg
Permitted load150 kg150 kg
Wall clearance back160 mm160 mm
Wall clearance sidewise100 mm100 mm

Housing dimensions not incl. fittings and connections

DesignationFD115-230VFD115UL-120V
Width net710 mm710 mm
Height net735 mm735 mm
Depth net605 mm605 mm

Internal Dimensions

DesignationFD115-230VFD115UL-120V
Interior width550 mm550 mm
Interior height550 mm550 mm
Interior depth385 mm385 mm
Unit doors11

Environment-specific data

DesignationFD115-230VFD115UL-120V
Sound-pressure level43 dB(A)43 dB(A)
Energy consumption at 100°C215 Wh/h215 Wh/h
Energy consumption at 150°C340 Wh/h340 Wh/h

Fixtures

DesignationFD115-230VFD115UL-120V
Number of shelves (std./max.)2/52/5
Specifications
ITEM NUMBER BIN90100305
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 9010-0305
CE-godkendt Ja
