Binder FD23 Varmeskab, CL, FK, 20 liter

ITEM NUMBER BIN90100194

Benefits

  • Uniform drying conditions thanks to APT.line technology.
  • Identical test conditions throughout the chamber interior independent of sample size and quantity.
  • Outstanding thermal insulation saves operation costs.
Description

A BINDER FD series heating oven is always used when fast drying and sterilization is required. Thanks to its fully homogeneous temperature distribution, quick dynamics and powerful fan, this heating oven saves valuable time.

Benefits

  • Uniform drying conditions thanks to APT.line technology
  • Identical test conditions throughout the chamber interior independent of sample size and quantity
  • Outstanding thermal insulation saves operation costs

Important characteristics

  • Temperature range: room temperature plus 5 °C to 300 °C
  • APT.line preheating chamber technology
  • Forced convection
  • Adjustable exhaust air flap
  • Controller with timer functions
  • 2 chrome-plated racks
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm

Performance Data Temperature

DesignationFD023-230VFD023UL-120V
Temperature range+5 °C above ambient temperature to 300 °C+5 °C above ambient temperature to 300 °C
Temperature uniformity at 150°C2.5 ± K2.5 ± K
Temperature fluctuation at 150°C0.3 ± K0.3 ± K
Heating up time to 150°C25 min25 min
Recovery time after door was opened for 30 s at 150°C6 min6 min

Air change data

DesignationFD023-230VFD023UL-120V
Air change rate at 150°C64 x/h64 x/h

Electrical data

DesignationFD023-230VFD023UL-120V
Rated Voltage230 V120 V
Power frequency50/60 Hz60 Hz
Nominal power0,8 kW0,8 kW
Unit fuse10,0 A12,5 A
Phase (Nominal voltage)1~1~

Measures

DesignationFD023-230VFD023UL-120V
Interior volume20 L20 L
Net weight of the unit (empty)27 kg27 kg
Load per rack12 kg12 kg
Permitted load25 kg25 kg
Wall clearance back100 mm100 mm
Wall clearance sidewise50 mm50 mm

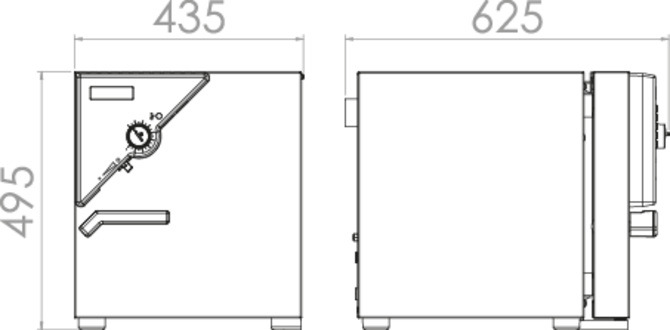

Housing dimensions not incl. fittings and connections

DesignationFD023-230VFD023UL-120V
Width net435 mm435 mm
Height net495 mm495 mm
Depth net520 mm520 mm

Internal Dimensions

DesignationFD023-230VFD023UL-120V
Interior width222 mm222 mm
Interior height330 mm330 mm
Interior depth300 mm300 mm
Unit doors11

Environment-specific data

DesignationFD023-230VFD023UL-120V
Energy consumption at 150°C300 Wh/h300 Wh/h

Fixtures

DesignationFD023-230VFD023UL-120V
Number of shelves (std./max.)2/42/4
Specifications
ITEM NUMBER BIN90100194
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 9010-0194
CE-godkendt Ja
