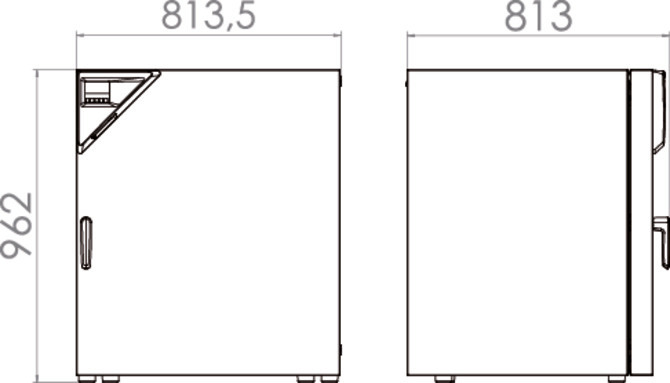

01 abmessungen bd bf ed fd fed260 avantgarde web 670x515 4

Binder FED260-230V Varmeskab, FK, 259 l

ITEM NUMBER BIN90100299

Benefits

  • Best energy efficiency on the market.
  • Excellent temporal and spatial temperature accuracy.
  • USB connection for recording data.
  • Temperature range up to 300 °C.
Description

BINDER heating chambers of the FED Avantgarde.Line series provide almost unlimited capacity and are particularly adaptable. With advanced timing functions and a controllable fan, temperature and convection conditions are easily controlled.

Benefits

  • Best energy efficiency on the market
  • Excellent temporal and spatial temperature accuracy
  • USB connection for recording data
  • Temperature range up to 300 °C

Important characteristics

  • Temperature range: ambient temperature plus 10 °C to 300 °C
  • Up to 30% lower energy consumption compared to conventional units on the market
  • High temperature accuracy thanks to APT.line technology
  • Adjustable fan speed
  • Controller with LCD display and enhanced time functions
  • Electromechanical control of the exhaust air flap
  • 2 chrome-plated racks
  • Units up to 115 liters are stackable
  • Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Ergonomic handle design
  • Ethernet interface
  • USB port for recording data

Performance Data Temperature

DesignationFED260-230VFED260UL-240V
Temperature range+10 °C above ambient temperature to 300 °C+10 °C above ambient temperature to 300 °C
Temperature uniformity at 150°C1.6 ± K1.6 ± K
Temperature fluctuation at 150°C0.4 ± K0.4 ± K
Heating up time to 150°C19 min19 min
Recovery time after door was opened for 30 s at 150°C5 min5 min

Air change data

DesignationFED260-230VFED260UL-240V
Air change rate at 100°C9 x/h9 x/h

Electrical data

DesignationFED260-230VFED260UL-240V
Rated Voltage230 V240 V
Power frequency50/60 Hz60 Hz
Nominal power2,3 kW2,5 kW
Unit fuse12,5 A16,0 A
Phase (Nominal voltage)1~1~

Measures

DesignationFED260-230VFED260UL-240V
Interior volume259 L259 L
Net weight of the unit (empty)85 kg85 kg
Load per rack40 kg40 kg
Permitted load270 kg270 kg
Wall clearance back160 mm160 mm
Wall clearance sidewise100 mm100 mm

Housing dimensions not incl. fittings and connections

DesignationFED260-230VFED260UL-240V
Width net810 mm810 mm
Height net940 mm940 mm
Depth net760 mm760 mm

Internal Dimensions

DesignationFED260-230VFED260UL-240V
Interior width650 mm650 mm
Interior height780 mm780 mm
Interior depth515 mm515 mm
Unit doors11

Environment-specific data

DesignationFED260-230VFED260UL-240V
Sound-pressure level43 dB(A)43 dB(A)
Energy consumption at 100°C245 Wh/h245 Wh/h
Energy consumption at 150°C410 Wh/h410 Wh/h

Fixtures

DesignationFED260-230VFED260UL-240V
Number of shelves (std./max.)2/82/8
Specifications
ITEM NUMBER BIN90100299
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 9010-0299
CE-godkendt Ja
