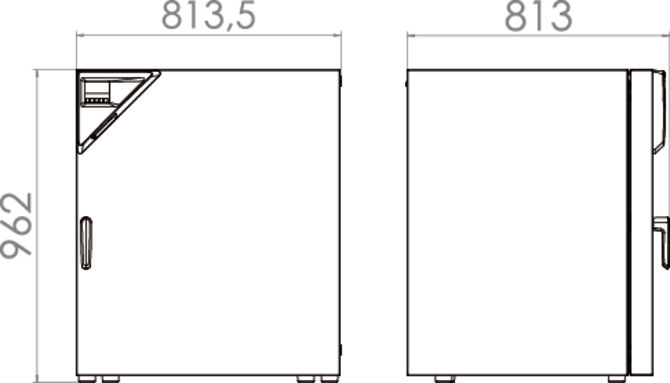

01 abmessungen bd bf ed fd fed260 avantgarde web 670x515 1

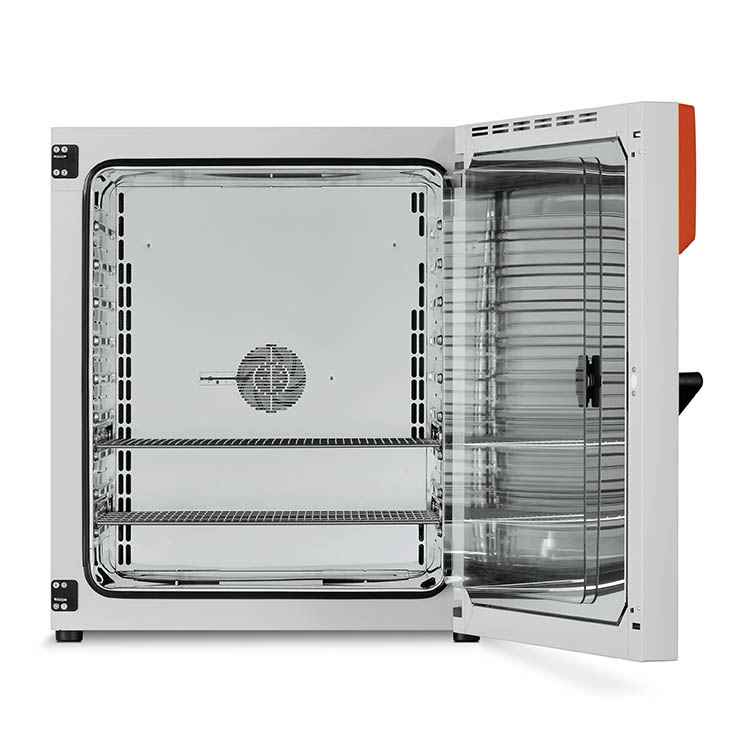

02 bf 260 of 02

Binder Inkubator BF260, 257 liter, F, 230V/50-60Hz

ITEM NUMBER BIN90100319

Benefits

  • Excellent temporal and spatial temperature accuracy
  • High process reliability
  • 100°C disinfection routine
Description

The BINDER incubator of the BF Avantgarde.Line series with forced convection is suitable for all gentle incubation applications, particularly under a full load and large batch throughputs. This incubator is extremely homogeneous and has quick recovery times.

Benefits

  • Excellent temporal and spatial temperature accuracy
  • High process reliability
  • 100 °C disinfection routine

Important characteristics

  • Temperature range (model 56 | 260): ambient temperature plus 7 °C to 100 °C
  • Temperature range (model 115): ambient temperature plus 8 °C to 100 °C
  • High temperature accuracy thanks to APT.line technology
  • Forced convection
  • Controller with LCD display
  • Electromechanical control of the exhaust air flap
  • Inner door made of tempered safety glass
  • 2 chrome-plated racks
  • Units up to 115 L are stackable
  • 4 stable castors, two with brakes, from 720 liters
  • Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
  • Ergonomic handle design
  • USB port for recording data

Incubators with forced convection for challenging incubation tasks

BINDER offers incubators to suit different laboratory requirements. Alongside incubators with mechanical adjustment, the Classic.Line also includes incubators with natural convection and, in the BF series, incubators with forced convection, which guarantee quick temperature equalization through forced convection after the chamber door has been opened.
Operating within a temperature range of between 5 °C and 100 °C, these incubators with forced convection all have an adjustable exhaust air flap and the fan speed can be adjusted on an individual basis. The proven APT.line preheating chamber technology and the cooling system guarantee maximum precision and results that are reproducible in every laboratory test.

Incubators with forced convection for precision, functionality, and usability

The BINDER BF series incubators with forced convection are also ideal for challenging incubation tasks, with safety and precision guaranteed even when fully loaded and under high batch throughputs. Operation with forced convection is unbelievably homogeneous, while the incubator also offers speedy recovery times. The incubator with forced convection boasts high usability thanks to its straightforward controller with timer functions. The units can be stacked on top of one another for an optimum ratio between use and space needed. Reliable decontamination is another advantage afforded by these incubators. The disinfection routine at 100 °C minimizes the risk of contamination, while the premium stainless steel inner chamber does not have any built-in fixtures, allowing for ease of cleaning.
This BINDER incubator with forced convection is energy efficient, so is also extremely economical during operation.

Performance Data Temperature

DesignationBF260-230VBF260UL-120V
Temperature range+7 °C above ambient temperature to 100 °C+7 °C above ambient temperature to 100 °C
Temperature uniformity at 100°C1.2 ± K1.2 ± K
Temperature uniformity at 37°C0.2 ± K0.2 ± K
Temperature fluctuation at 100°C0.3 ± K0.3 ± K
Temperature fluctuation at 37°C0.1 ± K0.1 ± K
Heating up time to 100°C30 min30 min
Heating up time to 37°C7 min7 min
Recovery time after door was opened for 30 s at 37°C3 min3 min

Electrical data

DesignationBF260-230VBF260UL-120V
Rated Voltage230 V120 V
Power frequency50/60 Hz60 Hz
Nominal power0,9 kW1 kW
Unit fuse8,0 A12,5 A
Phase (Nominal voltage)1~1~

Measures

DesignationBF260-230VBF260UL-120V
Interior volume257 L257 L
Net weight of the unit (empty)85 kg85 kg
Load per rack40 kg40 kg
Permitted load270 kg270 kg
Wall clearance back160 mm160 mm
Wall clearance sidewise100 mm100 mm

Housing dimensions not incl. fittings and connections

DesignationBF260-230VBF260UL-120V
Width net810 mm810 mm
Height net845 mm845 mm
Depth net760 mm760 mm

Internal Dimensions

DesignationBF260-230VBF260UL-120V
Interior width650 mm650 mm
Interior height780 mm780 mm
Interior depth510 mm510 mm
Inner doors11
Unit doors11

Environment-specific data

DesignationBF260-230VBF260UL-120V
Sound-pressure level43 dB(A)43 dB(A)
Energy consumption at 100°C275 Wh/h275 Wh/h
Energy consumption at 37°C65 Wh/h65 Wh/h

Fixtures

DesignationBF260-230VBF260UL-120V
Number of shelves (std./max.)2/82/8
Specifications
ITEM NUMBER BIN90100319
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 9010-0319
Type Udstyr
CE-godkendt Ja
