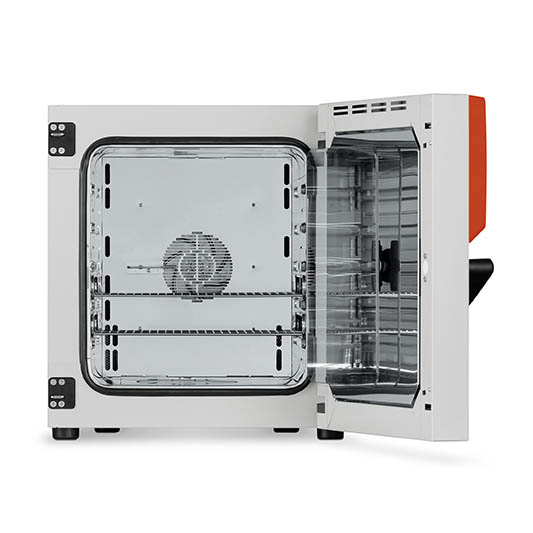

Binder Inkubator BF56, 56 liter, F, 230V/50-60Hz

ITEM NUMBER BIN90100313

Benefits

  • Excellent temporal and spatial temperature accuracy
  • High process reliability
  • 100°C disinfection routine
Description

The BINDER incubator of the BF Avantgarde.Line series with forced convection is suitable for all gentle incubation applications, particularly under a full load and large batch throughputs. This incubator is extremely homogeneous and has quick recovery times.

Benefits

  • Excellent temporal and spatial temperature accuracy
  • High process reliability
  • 100 °C disinfection routine

Important characteristics

  • Temperature range (model 56 | 260): ambient temperature plus 7 °C to 100 °C
  • Temperature range (model 115): ambient temperature plus 8 °C to 100 °C
  • High temperature accuracy thanks to APT.line technology
  • Forced convection
  • Controller with LCD display
  • Electromechanical control of the exhaust air flap
  • Inner door made of tempered safety glass
  • 2 chrome-plated racks
  • Units up to 115 L are stackable
  • 4 stable castors, two with brakes, from 720 liters
  • Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
  • Ergonomic handle design
  • USB port for recording data

Incubators with forced convection for challenging incubation tasks

BINDER offers incubators to suit different laboratory requirements. Alongside incubators with mechanical adjustment, the Classic.Line also includes incubators with natural convection and, in the BF series, incubators with forced convection, which guarantee quick temperature equalization through forced convection after the chamber door has been opened.
Operating within a temperature range of between 5 °C and 100 °C, these incubators with forced convection all have an adjustable exhaust air flap and the fan speed can be adjusted on an individual basis. The proven APT.line preheating chamber technology and the cooling system guarantee maximum precision and results that are reproducible in every laboratory test.

Incubators with forced convection for precision, functionality, and usability

The BINDER BF series incubators with forced convection are also ideal for challenging incubation tasks, with safety and precision guaranteed even when fully loaded and under high batch throughputs. Operation with forced convection is unbelievably homogeneous, while the incubator also offers speedy recovery times. The incubator with forced convection boasts high usability thanks to its straightforward controller with timer functions. The units can be stacked on top of one another for an optimum ratio between use and space needed. Reliable decontamination is another advantage afforded by these incubators. The disinfection routine at 100 °C minimizes the risk of contamination, while the premium stainless steel inner chamber does not have any built-in fixtures, allowing for ease of cleaning.
This BINDER incubator with forced convection is energy efficient, so is also extremely economical during operation.

Performance Data Temperature

DesignationBF056-230VBF056UL-120V
Temperature range+7 °C above ambient temperature to 100 °C+7 °C above ambient temperature to 100 °C
Temperature uniformity at 100°C1 ± K1 ± K
Temperature uniformity at 37°C0.2 ± K0.2 ± K
Temperature fluctuation at 100°C0.2 ± K0.2 ± K
Temperature fluctuation at 37°C0.1 ± K0.1 ± K
Heating up time to 100°C35 min35 min
Heating up time to 37°C6 min6 min
Recovery time after door was opened for 30 s at 37°C3 min3 min

Electrical data

DesignationBF056-230VBF056UL-120V
Rated Voltage230 V120 V
Power frequency50/60 Hz60 Hz
Nominal power0,4 kW0,4 kW
Unit fuse6,3 A12,5 A
Phase (Nominal voltage)1~1~

Measures

DesignationBF056-230VBF056UL-120V
Interior volume59 L59 L
Net weight of the unit (empty)39 kg39 kg
Load per rack30 kg30 kg
Permitted load70 kg70 kg
Wall clearance back160 mm160 mm
Wall clearance sidewise100 mm100 mm

Housing dimensions not incl. fittings and connections

DesignationBF056-230VBF056UL-120V
Width net560 mm560 mm
Height net625 mm625 mm
Depth net565 mm565 mm

Internal Dimensions

DesignationBF056-230VBF056UL-120V
Interior width400 mm400 mm
Interior height440 mm440 mm
Interior depth340 mm340 mm
Inner doors11
Unit doors11

Environment-specific data

DesignationBF056-230VBF056UL-120V
Sound-pressure level43 dB(A)43 dB(A)
Energy consumption at 100°C190 Wh/h190 Wh/h
Energy consumption at 37°C55 Wh/h55 Wh/h

Fixtures

DesignationBF056-230VBF056UL-120V
Number of shelves (std./max.)2/42/4
Specifications
ITEM NUMBER BIN90100313
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 9010-0313
Type Udstyr
CE-godkendt Ja
