IKA IC basic

ITEM NUMBER IKA0003861000

The IC basic immersion circulator is used for tempering liquids in open or covered water baths up to 250 °C. The circulator has an adjustable bridge that can be replaced by a fixed bridge.

Description

IC basic

The IC basic immersion circulator is used for tempering liquids in open or covered water baths up to 250 °C. The circulator has an adjustable bridge that can be replaced by a fixed bridge.

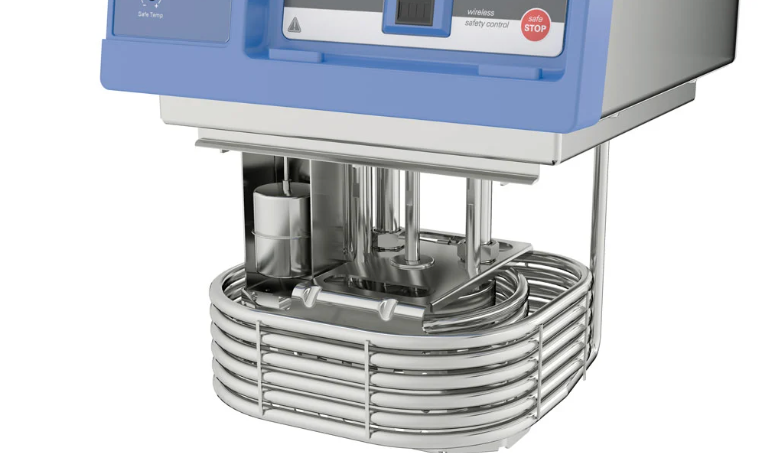

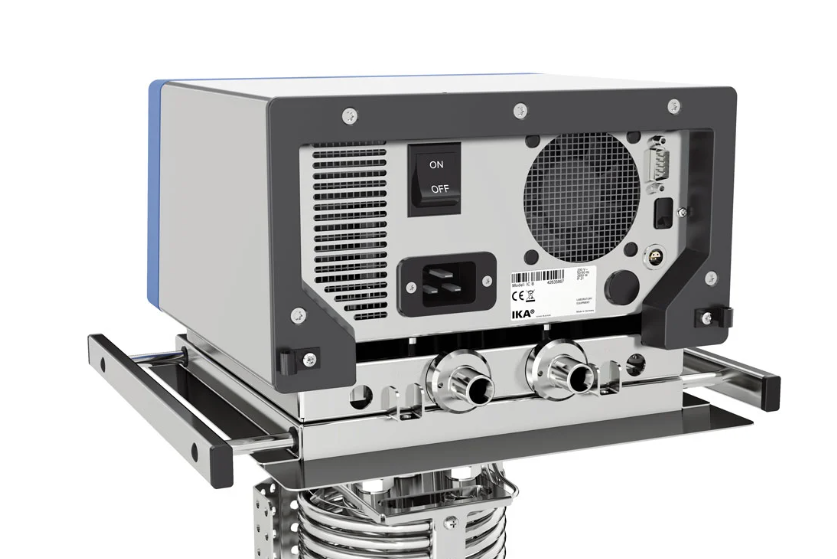

With the integrated powerful pressure/suction pump, the IC basic can be used for internal and external applications. A cooling coil can be connected to the circulator to temper near-ambient temperatures. All IKA circulating baths conform to the highest safety classification III (FL) for use with flammable liquids according to DIN 12876. The IC basic immersion circulators allow for quick heat-up times and stable temperautre conditions. With integrated connections (M16x1) the device is suitable for external applications.

  • Temperature range: RT - 250 °C
  • Temperature stability is ± 0.02 K
  • Stainless steel bath bridge can be combined with water baths of different volumes
  • Adjustable safety circuit
  • Powerful pressure/suction pump
  • Large easy to read LED display for pump speed and temperature
  • Push and turn buttons for intuitive menu navigation
  • Connection for external PT 100 temperature probe
  • Visual and acoustic safety warnings
  • USB / RS 232 interface for PC control and documentation using labworldsoft®, as well as for online firmware updates

Scope of delivery

  • Hose olive NW 12 (2 pcs.)
  • Screwdriver
  • USB Cable - USB A to Micro-B, 2 m

Technical Data

Appliance typeImmersion thermostat
Class designation acc. DIN 12876III
Identification according to DIN 12876FL
Heat output2500 W
Working temperatureroom temp. +10K @1000rpm - 250 °C
Operating temperature min. (with external cooling)-20 °C
Temperature displayyes
Temperature controlPID
Working temperature sensorPT 100
Safety temperature sensorPT1000
Working temperature displayLED
Safety temperature displayLED
Temperature stability DIN 12876±0.02 K
Connection for ext. temperature sensorPT 100
Display resolution0.1 K
Display for operation with ext. sensoryes
Set temperature resolution±0.1 K
Warning function opticalyes
Warning function acousticyes
Warning function excess temperatureyes
Adjustable safety circuit0 - 260 °C
Sub-level protectionyes
Over-level protectionyes
Pump typePressure- / suction pump
Pump capacity adjustableyes
Pump pressure max. (0 liters discharge flow)0.61 bar
Pressure pump (suction side) (0 liter flow)0.45 bar
Flow rate max. (0 bar back pressure)31 l/min
Pump connectionM16x1
Bath depth min.150 mm
Calibration optionyes
Appliance fastenerBridge
Range of universal clamp280 - 375 mm
Technical data complies with the standardDIN 12876
Permissible ON time100 %
Dimensions (W x H x D)285 x 313 x 291 mm
Weight10 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 21
RS 232 interfaceyes
USB interfaceyes
Voltage230 V
Frequency50/60 Hz
Power input2650 W
Specifications
ITEM NUMBER IKA0003861000
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 0003861000
CE-godkendt Ja
