IKA LR 2000.4 Reactor vessel

ITEM NUMBER IKA0003064900

Double-walled reactor vessel with bottom discharge including accessories for the laboratory reactors LR-2.ST.

Description

LR 2000.4 Reactor vessel

Double-walled reactor vessel with bottom discharge including accessories for the laboratory reactors LR-2.ST.
Volume: 2.0 l
Material in contact with medium: stainless steel 1.4571, PTFE.
Including quick connection adapters with DN 8 Olive for connection of temperature hoses.

Scope of delivery:

Stainless steel reactor incl. quick connection adapters with DN 8 olive.

Technical Data

Material in contact with mediumAISI 316L, AISI 316Ti, PTFE
Volume2 l
Vessel inner diameter153 mm
Vessel outer diameter194 mm
Height (room dimension)362 mm
Width (room dimension)180 mm
Depth (room dimension)230 mm
Flange dimensionDN150
Bottom shapeTorispherical head
Bottom drainyes
Bottom valveStandard valve
Bottom drain outlet inner diameter12 mm
Bottom drain outlet outer diameter18 mm
Bottom drain outlet length73 mm
Bottom drain shapestraight
Heating blanketyes
Tempering jacket inlet inner diameter6 mm
Vacuum applicationyes
Tempering jacket oulet inner diameter6 mm
Weight4.955 kg
Specifications
ITEM NUMBER IKA0003064900
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 0003064900
CE-godkendt Ja
Files

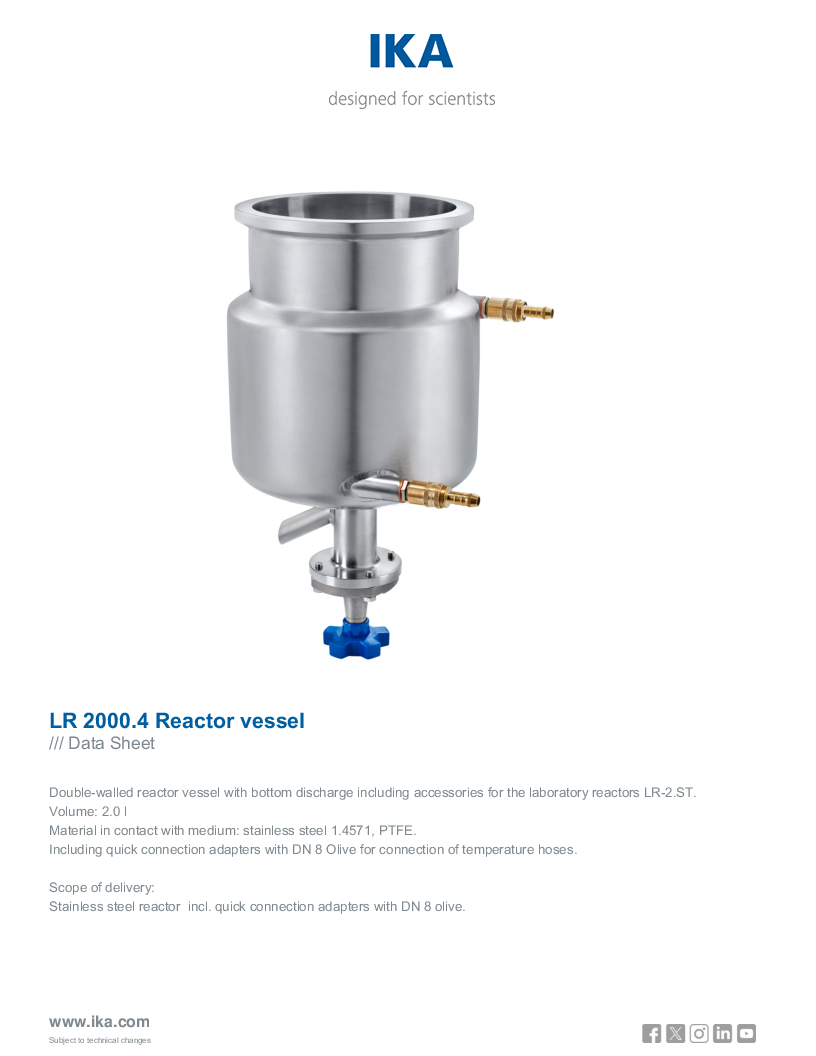

Data Sheet LR 2000.4 Reactor vessel
