IKA ULTRA-TURRAX® Tube Drive

ITEM NUMBER IKA0003646000

Unique and universal dispersing, stirring, homogenizing and grinding system with sealable disposable sample tubes. Protection and security for: Infectious sample materials, toxic substances, high-odor substances under defined conditions (time, energy, volume).

Description

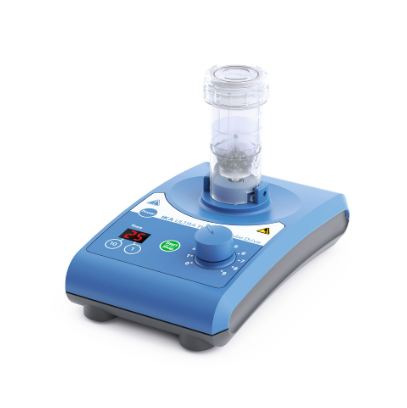

ULTRA-TURRAX® Tube Drive

The images do not correspond to the scope of delivery.

Unique and universal dispersing, stirring, homogenizing and grinding system with sealable disposable sample tubes. Protection and security for: Infectious sample materials, toxic substances, high-odor substances under defined conditions (time, energy, volume).

For research purposes only! Not suitable for diagnostic use (in accordance with the IVD Directive).

  • Disperse, stir, homogenize and grind using a single drive unit
  • No possibility of cross-contamination
  • Sealable disposable sample tubes
  • No cleaning required
  • High level of user safety
  • Suitable for individual use and use in series
  • Gamma-sterilized tubes
  • Tubes with pierceable membrane covers
  • Tubes with 2 - 15 ml and 15 - 50 ml
  • Reproducible tests
  • Patented

Application areas: Human medicine, pathology, veterinary medicine, animal hygiene institutes, Foodstuffs testing laboratories, Toxicology, Medical research, Pharmaceutical research, Biological research, Tumour biology, Chemistry, Cosmetics

Scope of delivery

  • Removal hook

Technical Data

Motor rating input20 W
Motor rating output17 W
Speed displayscale
Speed range300 - 6000 rpm
Viscosity max.5000 mPas
Speed deviation10 %
Speed adjustmentstepless
Noise without element50 dB(A)
Process typebatch
Dimensions (W x H x D)100 x 40 x 160 mm
Weight0.75 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 20
Voltage100 - 240 V
Frequency50/60 Hz
Power input20 W
DC Voltage24 V=
Current consumption800 mA
Specifications
ITEM NUMBER IKA0003646000
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 0003646000
CE-godkendt Ja
