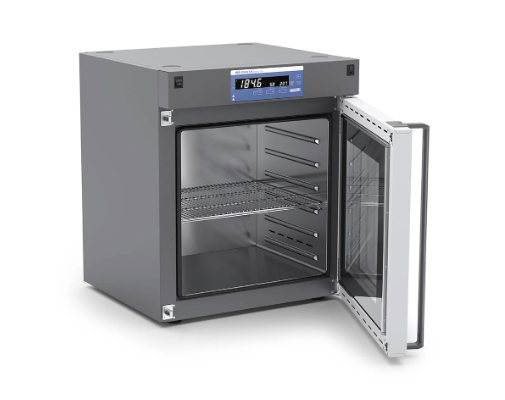

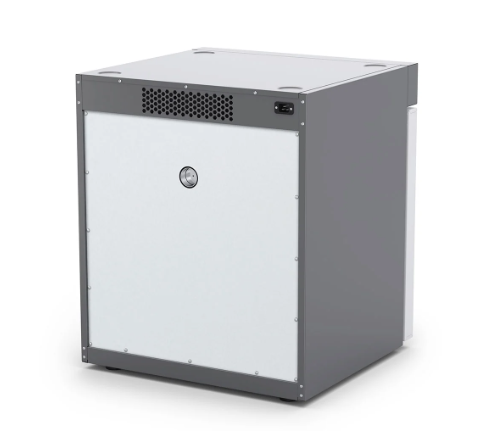

IKA OVEN 125 basic dry - glass

ITEM NUMBER IKA0020003956

Universal oven for tempering, drying, aging and heating application in the laboratory.
The IKA OVEN 125 basic dry covers applications in industry, schools / universities, research, quality control and science.
Fast heat up times and a precise temperature control guarantee reproducible test results. A special odorless insulation also ensures lower operating costs.

Description

IKA OVEN 125 basic dry - glass

Universal oven for tempering, drying, aging and heating application in the laboratory.
The IKA OVEN 125 basic dry covers applications in industry, schools / universities, research, quality control and science.
Fast heat up times and a precise temperature control guarantee reproducible test results. A special odorless insulation also ensures lower operating costs.
The oven can be controlled by USB and test parameters can be recorded for further analyses.
Features:

  • Temperature range: RT + 5°C to 250°C
  • Capacity: 125 l
  • Electronically adjustable ventilation
  • Clear display and control menu
  • Key lock function
  • Timer
  • Adjustable temperature limit
  • Glass door

Scope of delivery

  • IKA OVEN 125 basic dry - glass
  • IO T 1.00 (2 pcs.)
  • Tilt protection (2 pcs.)
  • Screwdriver (for adjustment of temperature limit)
  • USB A-B Cable
  • Calibration certification at 160°C

Technical Data

Heat output2400 W
Working temperatureroom temp. +5 - 250 °C
Adjustment and display resolution0.1 K
Temperature stability (150°C, center, standard door)±0.5 K
Temperature displayyes
Timeryes
Timer display7 segment LED
Time setting range1 - 144000 min
Number of trays max.6
Load for one tray max.30 kg
Operating area inner chamber550 x 525 x 450 mm
Total volume inner chamber125 l
Air outlet port diameter inside48 mm
Thermal safety devices according DIN 12880TB class 1
Dimensions (W x H x D)700 x 825 x 650 mm
Weight81 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 20
USB interfaceyes
Voltage220 - 240 V
Frequency50/60 Hz
Power input2450 W
Power input standby2 W
Specifications
ITEM NUMBER IKA0020003956
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 0020003956
CE-godkendt Ja
