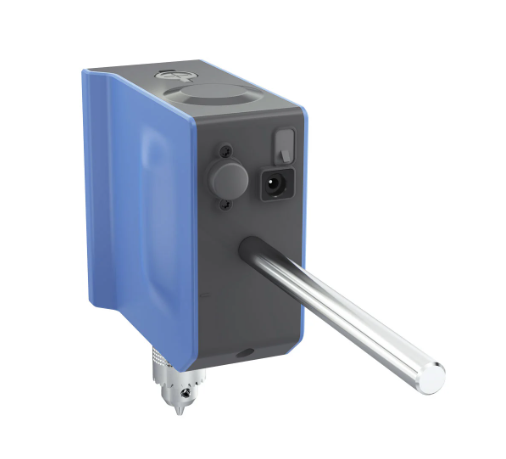

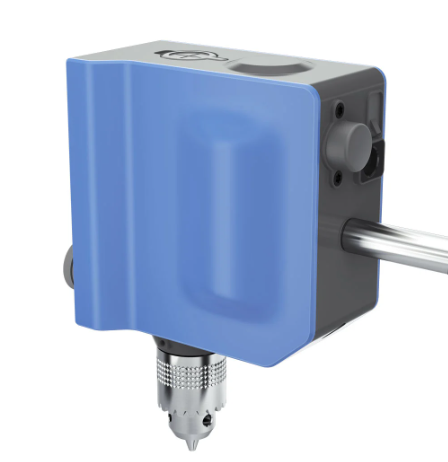

IKA MINISTAR 20 control

ITEM NUMBER IKA0025001988

The new MINISTAR series by IKA: Developed using the latest cutting-edge technology, this high-tech overhead stirrer with its compact design is ideal for special applications.

Description

MINISTAR 20 control

The new MINISTAR series by IKA: Developed using the latest cutting-edge technology, this high-tech overhead stirrer with its compact design is ideal for special applications.
Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee. See for yourself:

"The Fast One" in the high-tech mini class, perfect for low viscosities!

  • Hardened glass enclosed, fast response display for maximum visibility and chemical resistance
  • State-of-art vibration sensors detect deviations from permissible thresholds and automatically stop the process
  • Clear display for all essential information at a glance
  • Integrated timer / counter for the control of kinetic sensitive reactions and reminders
  • Viscosities up to 10,000 mPas and volumes of up to 15 l
  • Continuously adjustable speed between 0/30 - 2,000 rpm
  • USB interface, e.g. for documenting parameters using labworldsoft® or installing firmware updates
  • Intuitive and simple handling; touch-sensitive surface for long service life
  • Temperature reading on display
  • Chemical resistant housing
  • Key lock function
  • Microprocessor-controlled speed governor for constant rotational speed, even with changes in viscosity

Scope of delivery

  • MINISTAR 20 control
  • R 300 shaft protector
  • Fasten screws for R 300 (2 pcs.)
  • H 67.60 Temperature sensor, stainless steel
  • chuck key

Technical Data

Stirring quantity max. per stirring position (H2O)15 l
Motor rating input60 W
Motor rating output46 W
Motor principleBrushless DC
Speed displayLCD
Speed min.50 rpm
Speed min.0/50 rpm
Speed max.2000 rpm
Viscosity max.10000 mPas
Output max. at stirring shaft42 W
Permissible ON time100 %
Torque max. at stirring shaft20 Ncm
Speed adjustmentTurning knob
Setting accuracy speed±1 rpm
Deviation of speed measurement n > 300rpm±1 %
Deviation of speed measurement n < 300rpm±3 rpm
Stirring element fasteningchuck
Connection for ext. temperature sensorPT1000
Temperature displayyes
Chuck range diameter0.5 - 8.2 mm
Hollow shaft, inner diameter8.5 mm
Hollow shaft (push-through - when stopped)yes
Fastening on standextension arm
Extension arm diameter13 mm
Extension arm length160 mm
Torque displayyes
Speed controlelectronic
Nominal torque0.2 Nm
Torque measurementtrend
Deviation of torque measurement I±3 Ncm
Timeryes
Timer displayLCD
Time setting range0 - 6000 min
Temperature measuring range-10 - 350 °C
Temperature measurement resolution0.1 K
Accuracy of temperature measurement±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K
Limit deviation temperature sensor± (0.15 + 0.002xITI) K
Housing materialalu-cast coating / thermoplastic polymer
Dimensions (W x H x D)70 x 193 x 154 mm
Weight1.56 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 54
USB interfaceyes
Bluetooth interfaceyes
Voltage100 - 240 V
Frequency50/60 Hz
Power input69 W
DC Voltage24 V=
Current consumption2900 mA
Specifications
ITEM NUMBER IKA0025001988
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 0025001988
Type Single
CE-godkendt Ja
