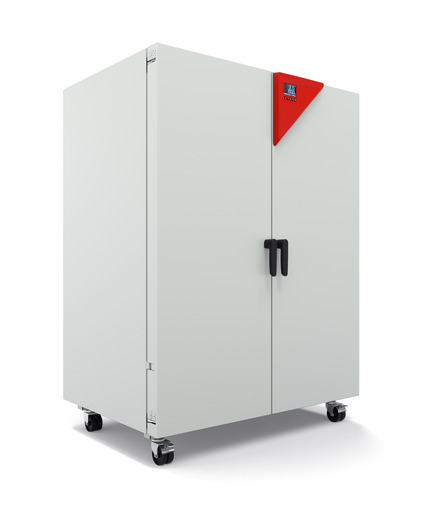

02 abmessung fp 9010 0366 a katalogzeichnung web 670x515

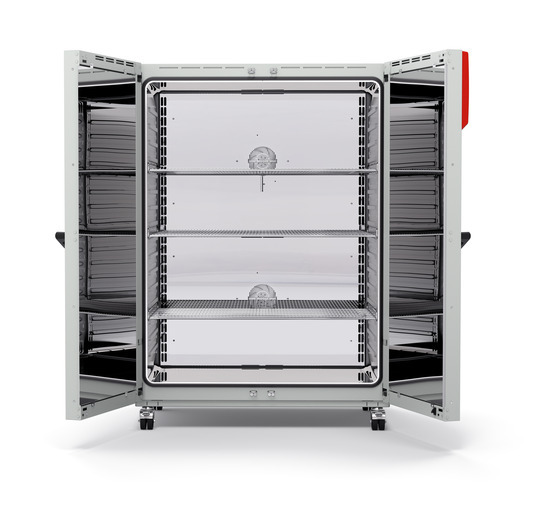

03 fp720 drying chamber gs web 670x515

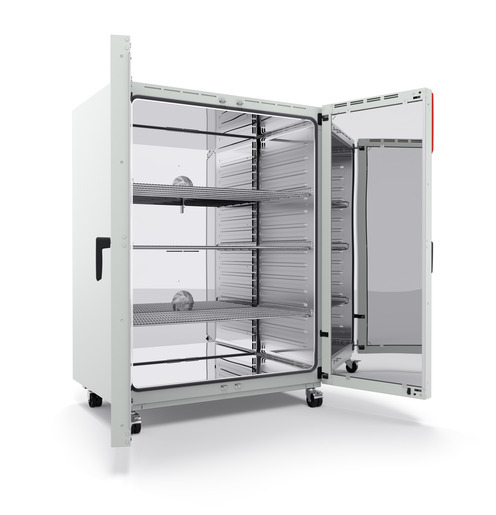

04 fp720 drying chamber of web 670x515
05 fp720 drying chamber so web 670x515

Binder FP720 Varmeskab, AL, FKP, 741 liter

ITEM NUMBER BIN90100366

Benefits

  • High temperature accuracy thanks to APT.line technology
  • User-friendly controller with large display
  • Computer interface: Ethernet
  • Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller
Description

A BINDER material test chamber with mechanical convection of the FP series provides reliably short drying times and particularly fast heating - even for chambers under full loads.

Benefits

  • High temperature accuracy thanks to APT.line technology
  • User-friendly controller with large display
  • Computer interface: Ethernet
  • Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller

Important characteristics

  • Temperature range: +10°C above ambient temperature up to +300°C
  • High temperature accuracy thanks to APT.line technology
  • Adjustable fan speed
  • Controller with interval and real-time programming
  • Electromechanical control of the exhaust air flap
  • 2 chrome-plated racks
  • Units up to 115 liters are stackable
  • Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller
  • Ergonomic handle design
  • Computer interface: Ethernet
  • Internal data logger, measured values can be read out in open format via USB

Performance Data Temperature

DesignationFP720-400VFP720UL-208V
Temperature range+12 °C above ambient temperature to 300 °C+12 °C above ambient temperature to 300 °C
Temperature uniformity at 150°C2.4 ± K2.4 ± K
Temperature fluctuation at 150°C0.6 ± K0.6 ± K
Heating up time to 150°C25 min25 min
Recovery time after door was opened for 30 s at 150°C6 min6 min

Air change data

DesignationFP720-400VFP720UL-208V
Air change rate at 100°C5 x/h5 x/h

Electrical data

DesignationFP720-400VFP720UL-208V
Rated Voltage400 V208 V
Power frequency50/60 Hz60 Hz
Nominal power4,5 kW4,5 kW
Unit fuse16,0 A16,0 A
Phase (Nominal voltage)3~3~

Measures

DesignationFP720-400VFP720UL-208V
Interior volume741 L741 L
Net weight of the unit (empty)166 kg166 kg
Load per rack45 kg45 kg
Permitted load315 kg315 kg
Wall clearance back160 mm160 mm
Wall clearance sidewise100 mm100 mm

Housing dimensions not incl. fittings and connections

DesignationFP720-400VFP720UL-208V
Width net1,160 mm1,160 mm
Height net1,590 mm1,590 mm
Depth net816 mm816 mm

Internal Dimensions

DesignationFP720-400VFP720UL-208V
Interior width1,000 mm1,000 mm
Interior height1,300 mm1,300 mm
Interior depth574 mm574 mm
Unit doors22

Environment-specific data

DesignationFP720-400VFP720UL-208V
Sound-pressure level43 dB(A)43 dB(A)
Energy consumption at 100°C510 Wh/h510 Wh/h
Energy consumption at 150°C880 Wh/h880 Wh/h

Fixtures

DesignationFP720-400VFP720UL-208V
Number of shelves (std./max.)2/162/16
Specifications
ITEM NUMBER BIN90100366
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 9010-0366
CE-godkendt Ja
