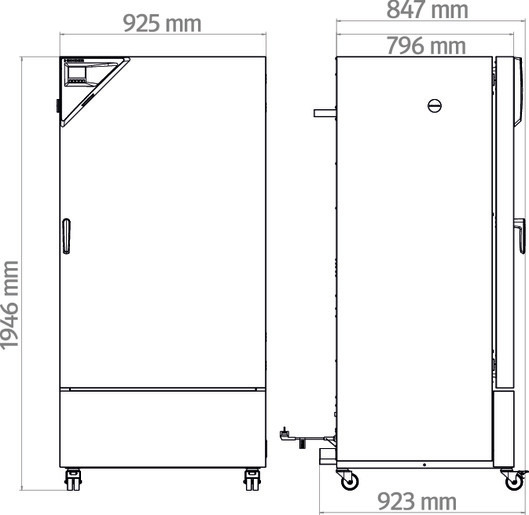

02 abmessung kb eco 400 9020 0465 a web 670x515

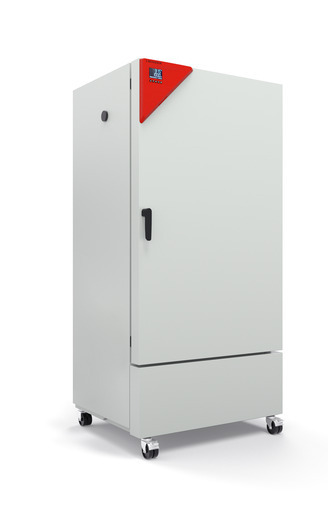

03 kb eco 400 cooling incubator gs web 670x515

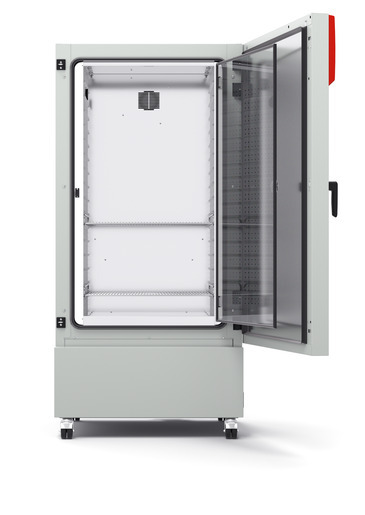

04 kb eco 400 cooling incubator of web 670x515

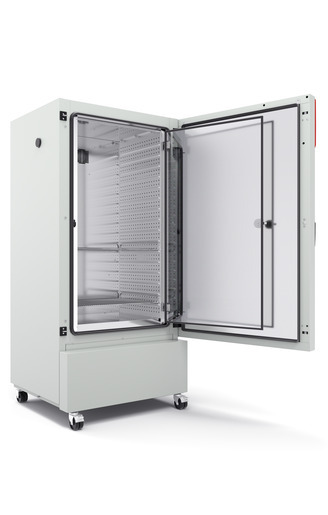

05 kb eco 400 cooling incubator os web 670x515

Binder KBECO400 Køleinkubator, std., 400 liter

ITEM NUMBER BIN90200465

Benefits

  • Safe: Unique condensate and dry-out protection for all operating conditions
  • Reliable: Fail-safe operation due to intelligent thermoelectric tempering
  • Smart: Temperatures programmable for intermitted incubation and refrigeration
  • Economical: Minimum energy consumption thanks to optimized thermoelectric cooling
Description

Thanks to thermoelectric cooling technology with patented heat dissipation, the new KB ECO cooling incubator is one of the most energy-efficient cooling incubator on the market. The thermoelectric cooling technology means the KB ECO series is also very quiet during operation.

Benefits

  • Safe: Unique condensate and dry-out protection for all operating conditions
  • Reliable: Fail-safe operation due to intelligent thermoelectric tempering
  • Smart: Temperatures programmable for intermitted incubation and refrigeration
  • Economical: Minimum energy consumption thanks to optimized thermoelectric cooling

Important characteristics

  • Temperature range: 0°C through +70°C (max. 28°C below the ambient temperature)
  • APT.line preheating chamber technology
  • Electric temperature control thanks to thermoelectric cooling module with innovative heat dissipation
  • Inner door made of tempered safety glass
  • Inner chamber made completely of stainless steel
  • 2 rack, stainless steel
  • Adjustable condensate protection
  • Access port with silicone plug Ø 30 mm
  • LCD to display temperature along with additional information and alarms
  • Internal data logger, measured values can be read out in open format via USB
  • Unit self-test for comprehensive status analysis
  • Computer interface: Ethernet

Performance Data Temperature

DesignationKBECO400-230VKBECO400-120V
Temperature range(max. 28 °C under ambient temperature) 0...70 °C(max. 28 °C under ambient temperature) 0...70 °C
Temperature uniformity at 37°C0.1 ± K0.1 ± K
Temperature fluctuation at 37°C0.1 ± K0.1 ± K
Recovery time after door was opened for 30 s at 37°C6 min6 min

Electrical data

DesignationKBECO400-230VKBECO400-120V
Rated Voltage200...230 V100...120 V
Power frequency50/60 Hz50/60 Hz
Nominal power1,2 kW1,2 kW
Unit fuse16,0 A16,0 A
Phase (Nominal voltage)1~1~

Measures

DesignationKBECO400-230VKBECO400-120V
Interior volume400 L400 L
Net weight of the unit (empty)196 kg196 kg
Load per rack30 kg30 kg
Permitted load120 kg120 kg
Wall clearance back100 mm100 mm
Wall clearance sidewise100 mm100 mm

Housing dimensions not incl. fittings and connections

DesignationKBECO400-230VKBECO400-120V
Width net925 mm925 mm
Height net1,946 mm1,946 mm
Depth net796 mm796 mm

Internal Dimensions

DesignationKBECO400-230VKBECO400-120V
Interior width650 mm650 mm
Interior height1,268 mm1,268 mm
Interior depth485 mm485 mm
Inner doors11
Unit doors11

Environment-specific data

DesignationKBECO400-230VKBECO400-120V
Sound-pressure level43 dB(A)43 dB(A)
Energy consumption at 37°C70 Wh/h70 Wh/h

Fixtures

DesignationKBECO400-230VKBECO400-120V
Number of shelves (std./max.)2/152/15
Specifications
ITEM NUMBER BIN90200465
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 9020-0465
Type Udstyr
CE-godkendt Ja
