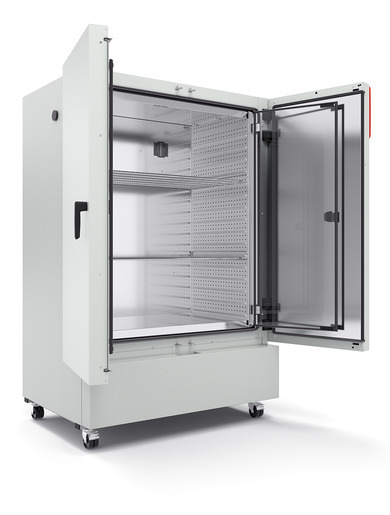

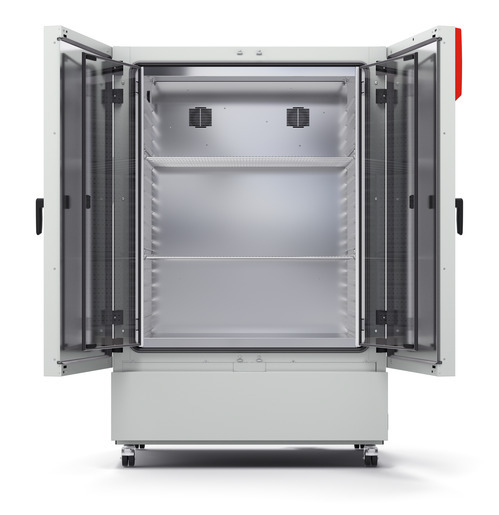

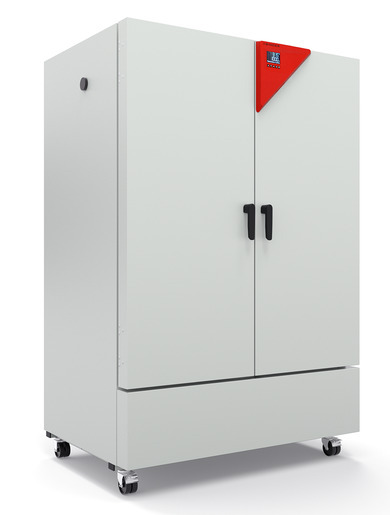

Binder KBECO720 Køleinkubator, std., 700 liter

ITEM NUMBER BIN90200424

Benefits

  • Safe: Unique condensate and dry-out protection for all operating conditions
  • Reliable: Fail-safe operation due to intelligent thermoelectric tempering
  • Smart: Temperatures programmable for intermitted incubation and refrigeration
  • Economical: Minimum energy consumption thanks to optimized thermoelectric cooling
Description

Thanks to thermoelectric cooling technology with patented heat dissipation, the new KB ECO cooling incubator is one of the most energy-efficient cooling incubator on the market. The thermoelectric cooling technology means the KB ECO series is also very quiet during operation.

Benefits

  • Safe: Unique condensate and dry-out protection for all operating conditions
  • Reliable: Fail-safe operation due to intelligent thermoelectric tempering
  • Smart: Temperatures programmable for intermitted incubation and refrigeration
  • Economical: Minimum energy consumption thanks to optimized thermoelectric cooling

Important characteristics

  • Temperature range: 0°C through +70°C (max. 28°C below the ambient temperature)
  • APT.line preheating chamber technology
  • Electric temperature control thanks to thermoelectric cooling module with innovative heat dissipation
  • Inner door made of tempered safety glass
  • Inner chamber made completely of stainless steel
  • 2 rack, stainless steel
  • Adjustable condensate protection
  • Access port with silicone plug Ø 30 mm
  • LCD to display temperature along with additional information and alarms
  • Internal data logger, measured values can be read out in open format via USB
  • Unit self-test for comprehensive status analysis
  • Computer interface: Ethernet

Performance Data Temperature

DesignationKBECO720-230VKBECO720UL-120V
Temperature range(max. 26 °C under ambient temperature) 0...70 °C(max. 26 °C under ambient temperature) 0...70 °C
Temperature uniformity at 37°C0.1 ± K0.1 ± K
Temperature fluctuation at 37°C0.1 ± K0.1 ± K
Max. heat compensation at 40°C500 W500 W
Recovery time after door was opened for 30 s at 37°C4 min4 min

Electrical data

DesignationKBECO720-230VKBECO720UL-120V
Rated Voltage200...230 V100...120 V
Power frequency50/60 Hz50/60 Hz
Nominal power1,3 kW1,3 kW
Unit fuse16,0 A16,0 A
Phase (Nominal voltage)1~1~

Measures

DesignationKBECO720-230VKBECO720UL-120V
Interior volume700 L700 L
Net weight of the unit (empty)272 kg272 kg
Load per rack45 kg45 kg
Permitted load150 kg150 kg
Wall clearance back100 mm100 mm
Wall clearance sidewise100 mm100 mm

Housing dimensions not incl. fittings and connections

DesignationKBECO720-230VKBECO720UL-120V
Width net1,250 mm1,250 mm
Height net1,925 mm1,925 mm
Depth net885 mm885 mm

Internal Dimensions

DesignationKBECO720-230VKBECO720UL-120V
Interior width973 mm973 mm
Interior height1,250 mm1,250 mm
Interior depth576 mm576 mm
Inner doors22
Unit doors22

Environment-specific data

DesignationKBECO720-230VKBECO720UL-120V
Sound-pressure level47 dB(A)47 dB(A)
Energy consumption at 37°C105 Wh/h105 Wh/h

Fixtures

DesignationKBECO720-230VKBECO720UL-120V
Number of shelves (std./max.)2/152/15
Specifications
ITEM NUMBER BIN90200424
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 9020-0424
Type Udstyr
CE-godkendt Ja
