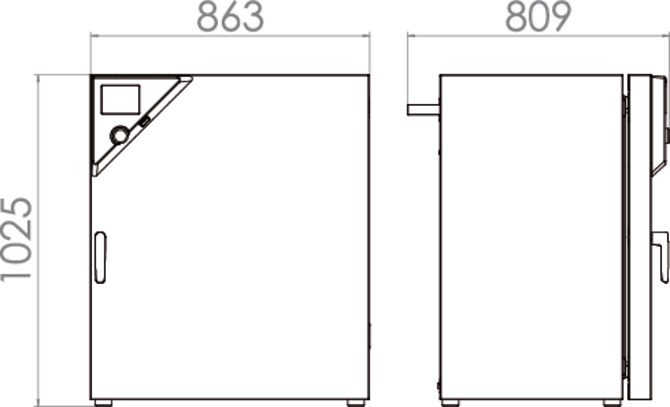

02 abmessungen kt170 web 670x515

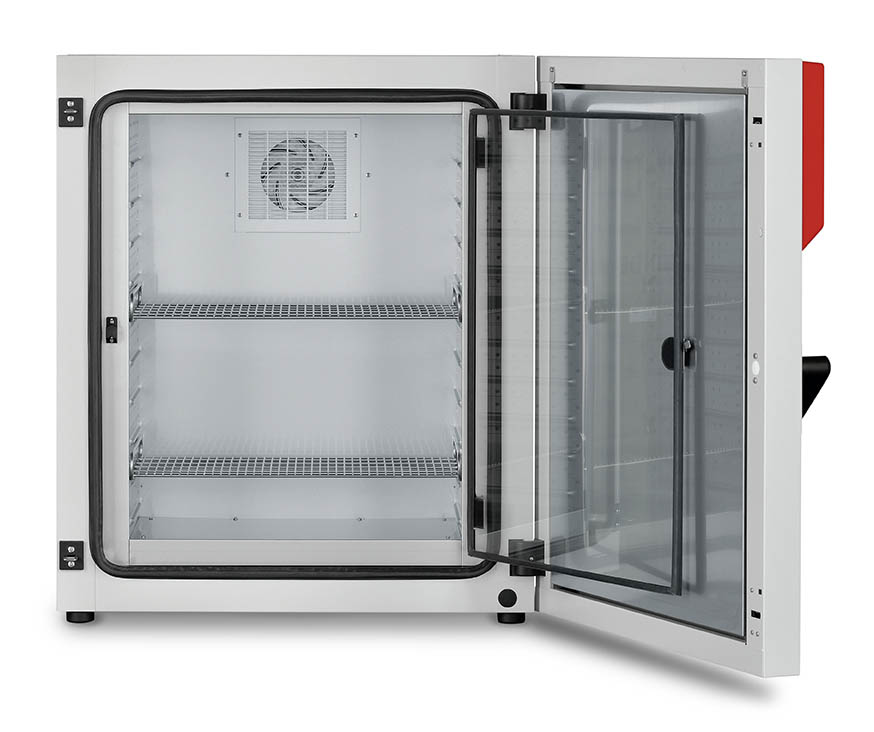

03 kt 170 of

Binder KT170 Køleinkubator, 163 liter

ITEM NUMBER BIN90200289

Benefits

  • Safe and reproducible results even under high batch throughputs in long-term operation
  • Hot air disinfection at 100°C
  • Energy efficient, environmentally friendly and secure
Description

The KT series combines outstanding performance with impressive energy efficiency and environmental friendliness. The cooled incubators of the KT series are state-of-the-art in application and protect the samples.

Benefits

  • Safe and reproducible incubation conditions even at high environmental conditions
  • Hot air disinfection at 100°C
  • Energy efficient, environmentally friendly and secure

Important characteristics

  • Temperature range: +4 °C to +100 °C
  • APT.line preheating chamber technology
  • Adjustable fan speed
  • Electric cooling with Peltier module
  • Controller with time-segment and real-time programming
  • Display via LCD monitor
  • Input via pushbutton/rotary knob
  • Inner door made of tempered safety glass
  • 2 stainless steel racks
  • Stackable with KT 115
  • Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
  • Computer interface: Ethernet
  • Data recording and USB interface

Performance Data Temperature

DesignationKT170-230VKT170UL-120V
Temperature range4...100 °C4...100 °C
Temperature uniformity at 37°C0.4 ± K0.4 ± K
Temperature fluctuation at 37°C0.1 ± K0.1 ± K
Max. heat compensation at 40°C100 W100 W
Recovery time after door was opened for 30 s at 37°C3 min3 min

Electrical data

DesignationKT170-230VKT170UL-120V
Rated Voltage200...240 V100...120 V
Power frequency50/60 Hz50/60 Hz
Nominal power0,8 kW0,8 kW
Unit fuse10,0 A10,0 A
Phase (Nominal voltage)1~1~

Measures

DesignationKT170-230VKT170UL-120V
Interior volume163 L163 L
Net weight of the unit (empty)102 kg102 kg
Load per rack30 kg30 kg
Permitted load120 kg120 kg
Wall clearance back100 mm100 mm
Wall clearance sidewise240 mm240 mm

Housing dimensions not incl. fittings and connections

DesignationKT170-230VKT170UL-120V
Width net860 mm860 mm
Height net1,025 mm1,025 mm
Depth net655 mm655 mm

Internal Dimensions

DesignationKT170-230VKT170UL-120V
Interior width600 mm600 mm
Interior height765 mm765 mm
Interior depth355 mm355 mm
Inner doors11
Unit doors11

Environment-specific data

DesignationKT170-230VKT170UL-120V
Sound-pressure level48 dB(A)48 dB(A)
Energy consumption at 37°C80 Wh/h80 Wh/h

Fixtures

DesignationKT170-230VKT170UL-120V
Number of shelves (std./max.)2/102/10
Specifications
ITEM NUMBER BIN90200289
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 9020-0289
Type Udstyr
CE-godkendt Ja
Files
2017 02 BR KB KT EN 7002 0321 web
2017 02 BR KB KT EN 7002 0321 web
View Download
