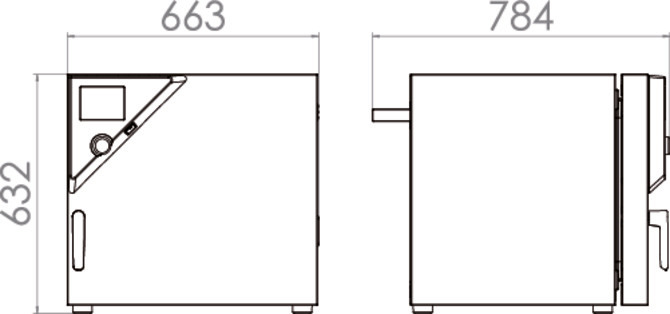

02 abmessungen kt053 web 670x515

Binder KT53 Køleinkubator, +4 til+100C, 53 liter

ITEM NUMBER BIN90200311

Benefits

  • Safe and reproducible results even under high batch throughputs in long-term operation
  • Hot air disinfection at 100°C
  • Energy efficient, environmentally friendly and secure
Description

The KT series combines outstanding performance with impressive energy efficiency and environmental friendliness. The cooled incubators of the KT series are state-of-the-art in application and protect the samples.

Benefits

  • Safe and reproducible incubation conditions even at high environmental conditions
  • Disinfection routine at 100 °C
  • Energy efficient, environmentally friendly and secure

Important characteristics

  • Temperature range: 4 °C to 100 °C
  • APT.line preheating chamber technology
  • Adjustable fan speed
  • Electric cooling with Peltier module
  • Controller with time-segment and real-time programming
  • Display via LCD monitor
  • Input via pushbutton/rotary knob
  • Inner door made of tempered safety glass
  • 2 stainless steel racks
  • Units up to 115 liters are stackable
  • Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
  • Computer interface: Ethernet
  • Data recording and USB interface

Incubators with thermoelectric cooling for energy efficiency and high performance

BINDER incubators offer ultimate precision even given high ambient temperatures. In its KT series, BINDER has developed incubators with thermoelectric cooling, which combine high performance with low energy consumption. With these extremely environmentally friendly incubators, incubation processes are guaranteed to be stable with precise and reproducible results even when temperatures are high. This incubator with thermoelectric cooling is incredibly easy to use and offers maximum levels of safety.
The KT series cooling incubators operate within a temperature range of between 4 °C and 100 °C, with the built-in thermoelectric module reliably taking care of cooling electrically and the fan speed being adjustable. Intervals can be set to suit the laboratory requirements using the intuitive controller, while measured values can be recorded and transferred via the USB interface.

Environmentally friendly cooling incubators for reproducible results

The KT series includes incubators with thermoelectric cooling, which combine outstanding performance with energy-efficient and environmentally friendly operation. The KT 170 model comes in a size that is unique worldwide, giving you maximum usable space while taking up a minimal area.
This incubator with thermoelectric cooling can be relied upon to deliver high performance levels even at high ambient temperatures. When working with microorganisms in the laboratory, these incubators are versatile in their use and their results are accurate.

Performance Data Temperature

DesignationKT053-230VKT053UL-120V
Temperature range4...100 °C4...100 °C
Temperature uniformity at 37°C0.3 ± K0.3 ± K
Temperature fluctuation at 37°C0.1 ± K0.1 ± K
Max. heat compensation at 40°C100 W100 W
Recovery time after door was opened for 30 s at 37°C2 min2 min

Electrical data

DesignationKT053-230VKT053UL-120V
Rated Voltage200...240 V100...120 V
Power frequency50/60 Hz50/60 Hz
Nominal power0,4 kW0,4 kW
Unit fuse10,0 A10,0 A
Phase (Nominal voltage)1~1~

Measures

DesignationKT053-230VKT053UL-120V
Interior volume53 L53 L
Net weight of the unit (empty)63 kg63 kg
Load per rack15 kg15 kg
Permitted load40 kg40 kg
Wall clearance back100 mm100 mm
Wall clearance sidewise240 mm240 mm

Housing dimensions not incl. fittings and connections

DesignationKT053-230VKT053UL-120V
Width net660 mm660 mm
Height net635 mm635 mm
Depth net630 mm630 mm

Internal Dimensions

DesignationKT053-230VKT053UL-120V
Interior width400 mm400 mm
Interior height400 mm400 mm
Interior depth334 mm334 mm
Inner doors11
Unit doors11

Environment-specific data

DesignationKT053-230VKT053UL-120V
Sound-pressure level48 dB(A)48 dB(A)
Energy consumption at 37°C75 Wh/h75 Wh/h

Fixtures

DesignationKT053-230VKT053UL-120V
Number of shelves (std./max.)2/52/5
Specifications
ITEM NUMBER BIN90200311
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 9020-0311
Type Udstyr
CE-godkendt Ja
