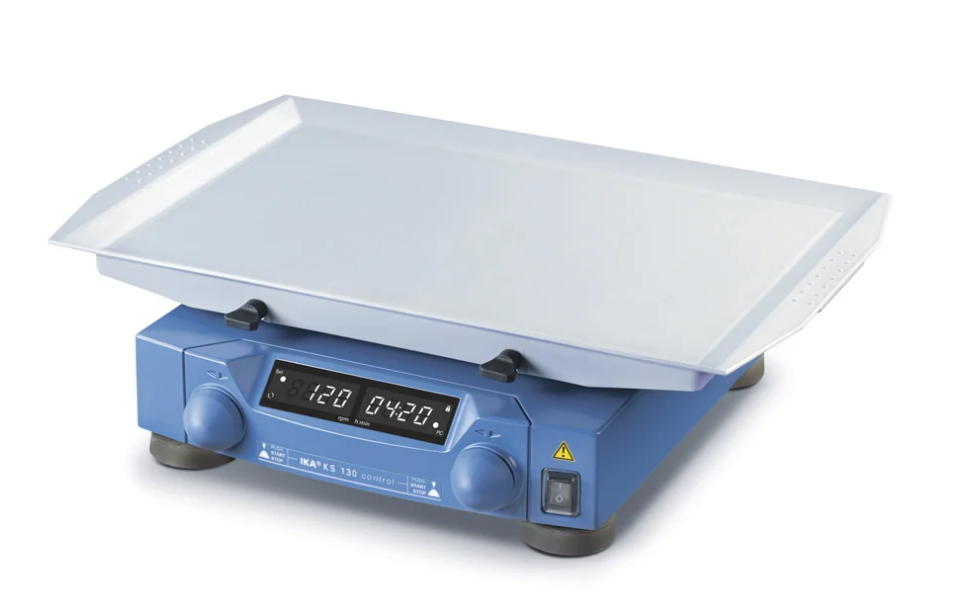

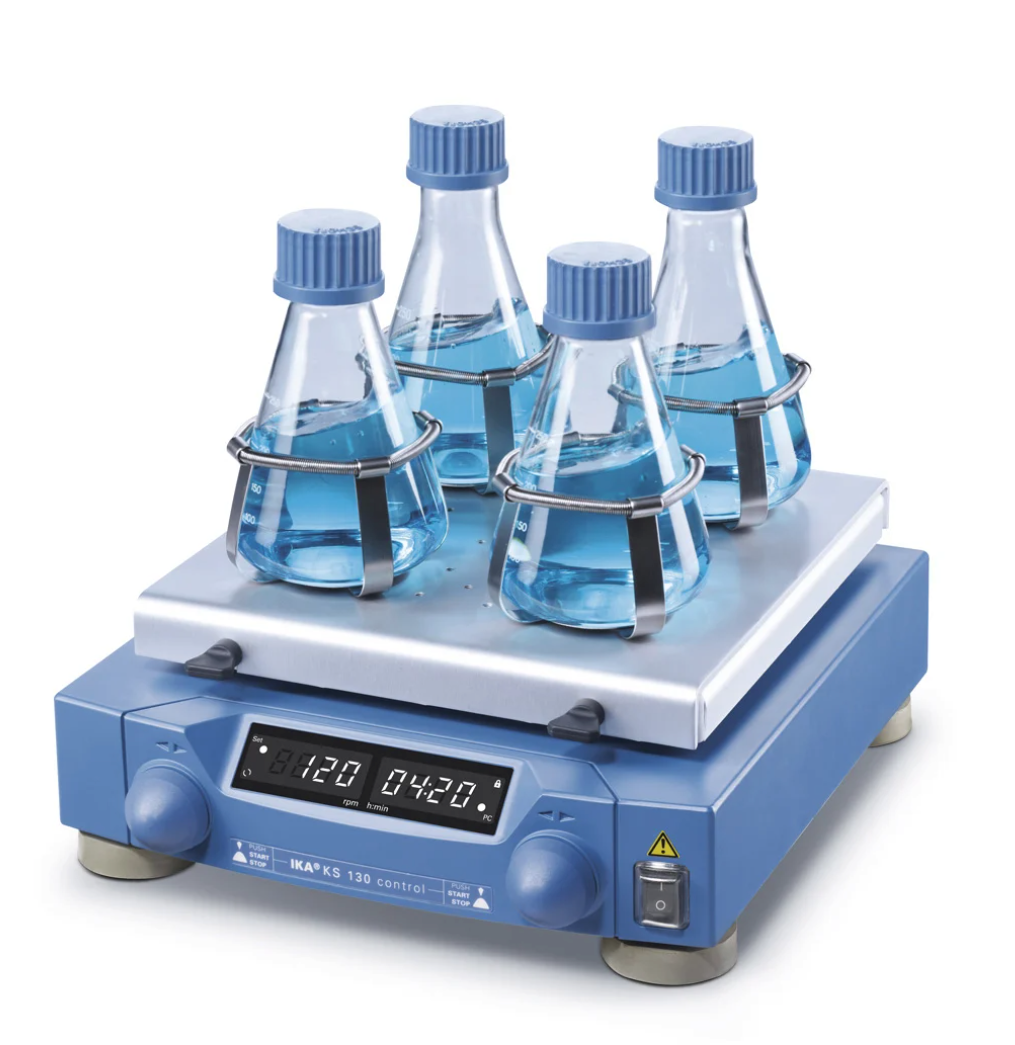

IKA KS 130 control shaker

ITEM NUMBER IKA0002980100

The KS 130 control open air orbital shaker is a reliable and efficient solution for laboratory applications that require gentle mixing of samples. It has a compact and flat design, making it easy to fit into any lab space. With a maximum shaking weight of 2.0 kg, it can handle a variety of vessel sizes and shapes. The shaker's integrated end point positioning function is highly useful for automated robot-controlled sampling.

Description

KS 130 control

Images do not correspond to scope of delivery.

The KS 130 control open air orbital shaker is a reliable and efficient solution for laboratory applications that require gentle mixing of samples. It has a compact and flat design, making it easy to fit into any lab space. With a maximum shaking weight of 2.0 kg, it can handle a variety of vessel sizes and shapes. The shaker's integrated end point positioning function is highly useful for automated robot-controlled sampling.

  • Digital LED display makes it easy to read the speed and timer function
  • Speed and timer can be electronically adjusted for precise control
  • Shaking orbit of 4.0 mm, which ensures consistent mixing
  • Variable speed range of 80-800 rpm, making it suitable for a wide range of applications
  • Timer function (from 1 min to 99 h 59 min) and continuous operation available
  • RS 232 interface for external control and documentation through labworldsoft®
  • Wide range of attachment combinations available, allowing users to use almost all shapes and sizes of vessels, accessories are not part of the scope of delivery and have to be ordered separately
  • A special version with clockwise and anticlockwise rotation is available upon request

Scope of delivery

  • KS 130 control
  • Attachment screws (4 pcs.)
  • Single-head wrench

Technical Data

Type of movementorbital
Shaking stroke4 mm
Permissible shaking weight (incl. attachment)2.0 kg
Motor rating input45 W
Motor rating output10 W
Permissible ON time100 %
Speed min (adjustable)80 rpm
Speed range0 - 800 rpm
Speed displayLED
Timeryes
Timer displayLED
Time setting range1 - 5999 min
Operating modetimer and continuous operation
Shaking table lockyes
Dimensions (W x H x D)270 x 98 x 316 mm
Weight9.8 kg
Permissible ambient temperature5 - 50 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 21
RS 232 interfaceyes
Analog outputyes
Voltage220 - 240 V
Frequency50/60 Hz
Power input45 W
Fuse2x T1A 250V
Specifications
ITEM NUMBER IKA0002980100
Quantity / pk 1
Unit pcs
Minimum order 1
Supplier's item number 0002980100
Type Orbital
CE-godkendt Ja
