ED400-400V-I, with RS 422, Series ED Classic.Line

Varenr. BIN90100075

Benefits

  • Uniform drying conditions thanks to APT.line technology.
  • Identical test conditions throughout the chamber interior independent of sample size and quantity.
  • Outstanding thermal insulation saves operation costs.
Beskrivelse

The strengths of a BINDER ED series drying chamber include routine drying and sterilization tasks up to 300 °C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.

Benefits

  • Uniform drying conditions thanks to APT.line technology
  • Identical test conditions throughout the chamber interior independent of sample size and quantity
  • Outstanding thermal insulation saves operation costs

Important characteristics

  • Temperature range: room temperature plus 5 °C to 300 °C
  • APT.line preheating chamber technology
  • Natural convection
  • Adjustable exhaust air flap
  • Controller with timer functions
  • 2 chrome-plated racks
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm

Performance Data Temperature

DesignationED400-400V-IED400UL-208V-I
Temperature range+5 °C above ambient temperature to 300 °C+5 °C above ambient temperature to 300 °C
Temperature uniformity at 150°C3 ± K3 ± K
Temperature fluctuation at 150°C0.5 ± K0.5 ± K
Heating up time to 150°C71 min71 min
Recovery time after door was opened for 30 s at 150°C31 min31 min

Air change data

DesignationED400-400V-IED400UL-208V-I
Air change rate at 150°C10 x/h10 x/h

Electrical data

DesignationED400-400V-IED400UL-208V-I
Rated Voltage400 V208 V
Power frequency50/60 Hz60 Hz
Nominal power3,4 kW3,4 kW
Unit fuse16,0 A16,0 A
Phase (Nominal voltage)3~3~

Measures

DesignationED400-400V-IED400UL-208V-I
Interior volume400 L400 L
Net weight of the unit (empty)125 kg125 kg
Load per rack35 kg35 kg
Permitted load90 kg90 kg
Wall clearance back160 mm160 mm
Wall clearance sidewise100 mm100 mm

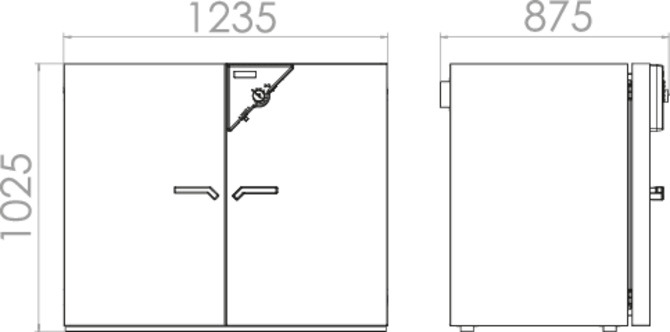

Housing dimensions not incl. fittings and connections

DesignationED400-400V-IED400UL-208V-I
Width net1,235 mm1,235 mm
Height net1,025 mm1,025 mm
Depth net765 mm765 mm

Internal Dimensions

DesignationED400-400V-IED400UL-208V-I
Interior width1,000 mm1,000 mm
Interior height800 mm800 mm
Interior depth520 mm520 mm
Unit doors22

Environment-specific data

DesignationED400-400V-IED400UL-208V-I
Energy consumption at 150°C672 Wh/h672 Wh/h

Fixtures

DesignationED400-400V-IED400UL-208V-I
Number of shelves (std./max.)2/102/10
Specifikationer
Varenr. BIN90100075
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9010-0075
CE-godkendt Ja
