01-20240417142547

SP-11 Standard spindle

Varenr. IKA0025006838

Standard spindle

Beskrivelse

SP-11

Standard spindle

Technical Data

Spindle geometryDisc
ConnectionThread M2.5 LH
Quick plug connectoryes
Hook connectoryes
Diameter14.6 mm
Immersion depth49.2 mm
Spindle length133 mm
Mounting Bracketyes
Sample container:600mL beaker low
Viscosity Accuracy (FSR)1 %
Viscosity Repeatibility (FSR)0.2 %
Min. FSR match ROTAVISC lo-vi468.7 mPa.s
Max. FSR match ROTAVISC lo-vi93730 mPa.s
Min. FSR match ROTAVISC me-vi5000 mPa.s
Max. FSR match ROTAVISC me-vi1000000 mPa.s
Min. FSR match ROTAVISC hi-vi I10000 mPa.s
Max. FSR match ROTAVISC hi-vi I2000000 mPa.s
Min. FSR match ROTAVISC hi-vi II40000 mPa.s
Max. FSR match ROTAVISC hi-vi II8000000 mPa.s
Material in contact with mediumstainless steel 1.4404
Dimensions (W x H x D)16 x 135 x 16 mm
Weight0.013 kg
Permissible ambient temperature5 - 40 °C
Specifikationer
Varenr. IKA0025006838
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 0025006838
UNSPSC 41103312
CE-godkendt Ja
Filer

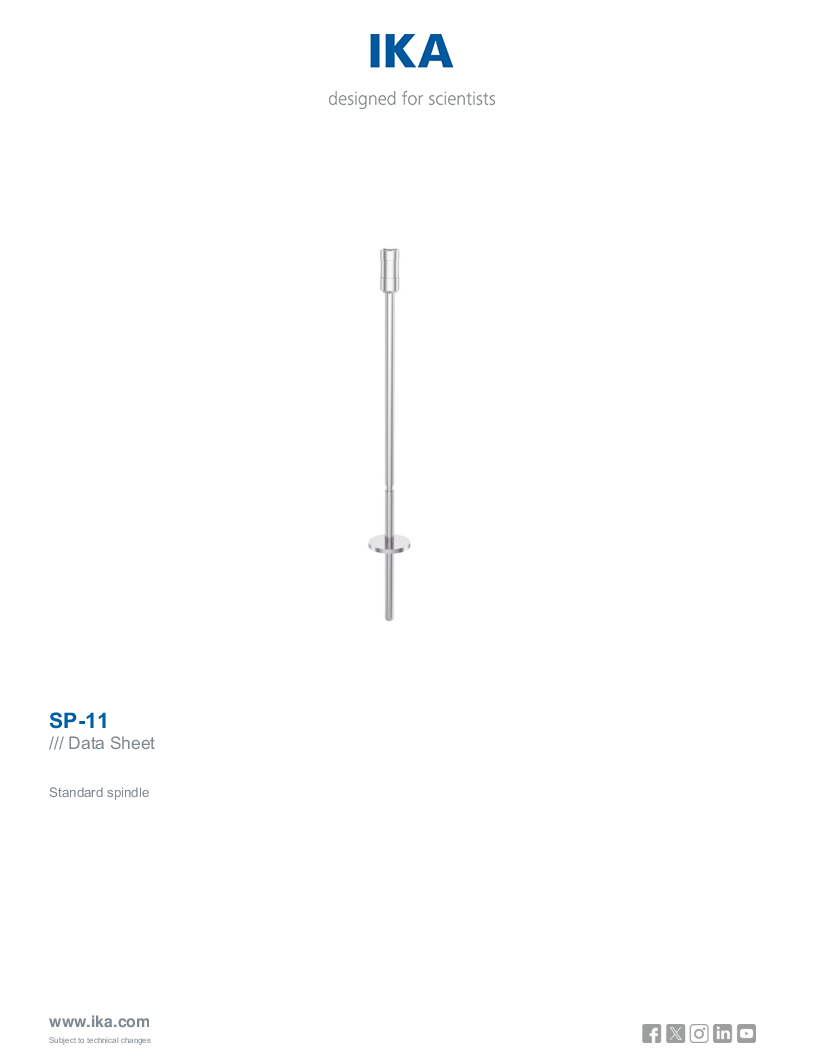

Data Sheet SP 11
Data Sheet SP 11
Vis Download
