SP-12 Standard spindle

Varenr. IKA0025006839

Standard spindle

Beskrivelse

SP-12

Standard spindle

Technical Data

Spindle geometryCylinder
ConnectionThread M2.5 LH
Quick plug connectoryes
Hook connectoryes
Diameter3.2 mm
Immersion depth50.4 mm
Spindle length133 mm
Mounting Bracketyes
Sample container:600mL beaker low
Viscosity Accuracy (FSR)1 %
Viscosity Repeatibility (FSR)0.2 %
Min. FSR match ROTAVISC lo-vi1874.6 mPa.s
Max. FSR match ROTAVISC lo-vi374920 mPa.s
Min. FSR match ROTAVISC me-vi20000 mPa.s
Max. FSR match ROTAVISC me-vi4000000 mPa.s
Min. FSR match ROTAVISC hi-vi I40000 mPa.s
Max. FSR match ROTAVISC hi-vi I8000000 mPa.s
Min. FSR match ROTAVISC hi-vi II160000 mPa.s
Max. FSR match ROTAVISC hi-vi II32000000 mPa.s
Material in contact with mediumstainless steel 1.4404
Dimensions (W x H x D)8 x 135 x 8 mm
Weight0.010 kg
Permissible ambient temperature5 - 40 °C
Specifikationer
Varenr. IKA0025006839
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 0025006839
UNSPSC 41103312
CE-godkendt Ja
Filer

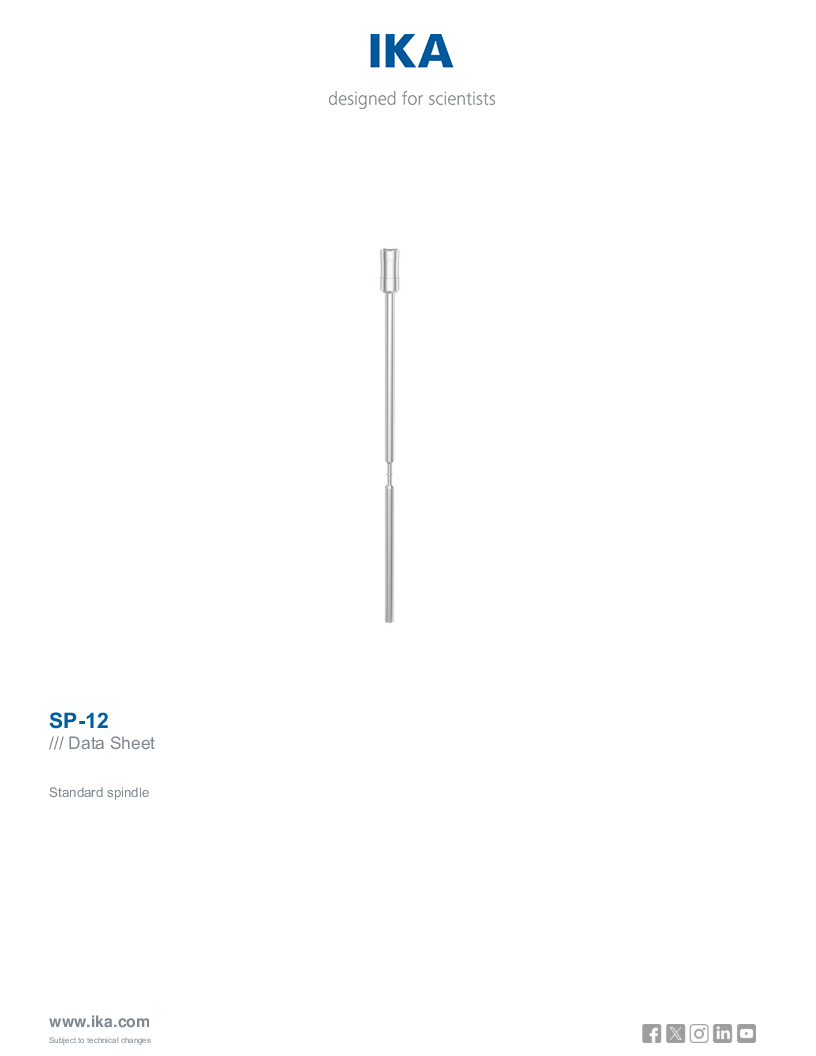

Data Sheet SP 12
Data Sheet SP 12
Vis Download
