SP-3 Standard spindle

Varenr. IKA0025006830

Standard spindle

Beskrivelse

SP-3

Standard spindle

Technical Data

Spindle geometryDisc
ConnectionThread M2.5 LH
Quick plug connectoryes
Hook connectoryes
Diameter12.6 mm
Immersion depth50 mm
Spindle length115 mm
Mounting Bracketyes
Sample container:600mL beaker low
Viscosity Accuracy (FSR)1 %
Viscosity Repeatibility (FSR)0.2 %
Min. FSR match ROTAVISC lo-vi599.9 mPa.s
Max. FSR match ROTAVISC lo-vi119974 mPa.s
Min. FSR match ROTAVISC me-vi6400.0 mPa.s
Max. FSR match ROTAVISC me-vi1280000 mPa.s
Min. FSR match ROTAVISC hi-vi I12800.0 mPa.s
Max. FSR match ROTAVISC hi-vi I2560000 mPa.s
Min. FSR match ROTAVISC hi-vi II51200 mPa.s
Max. FSR match ROTAVISC hi-vi II10240000 mPa.s
Material in contact with mediumstainless steel 1.4404
Dimensions (W x H x D)14 x 117 x 14 mm
Weight0.011 kg
Permissible ambient temperature5 - 40 °C
Specifikationer
Varenr. IKA0025006830
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 0025006830
UNSPSC 41103312
CE-godkendt Ja
Filer

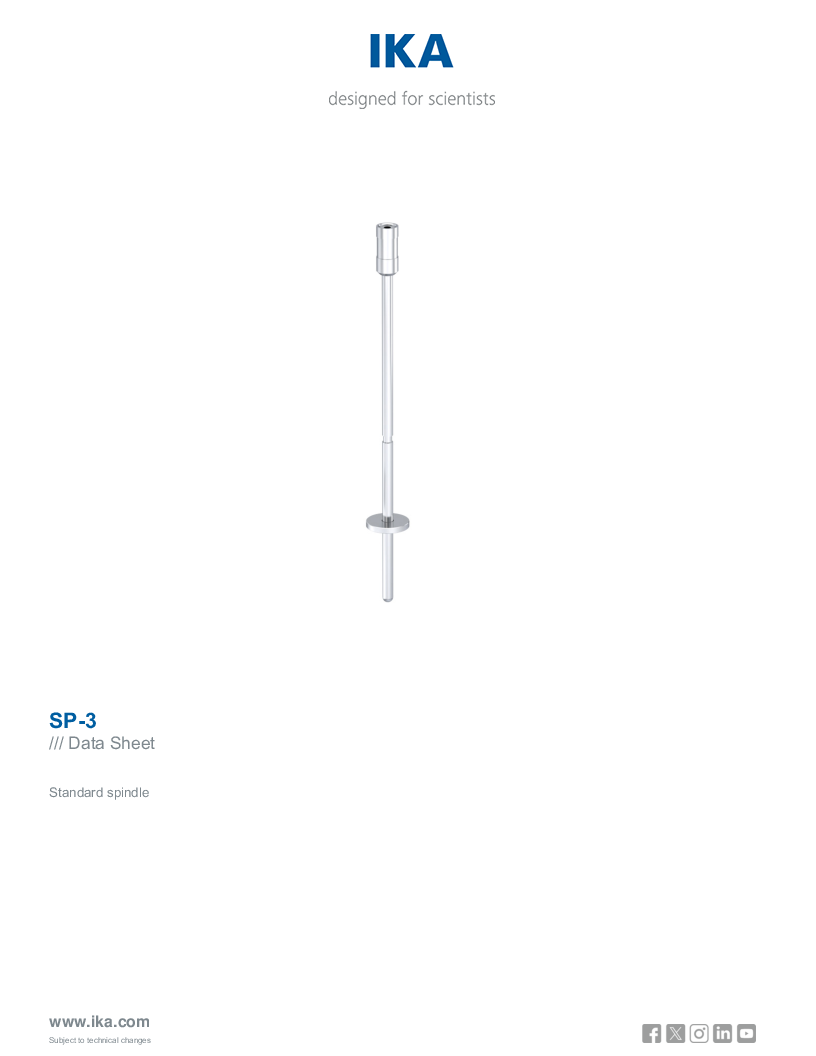

Data Sheet SP 3
Data Sheet SP 3
Vis Download
