SP-4 Standard spindle

Varenr. IKA0025006831

Standard spindle

Beskrivelse

SP-4

Standard spindle

Technical Data

Spindle geometryCylinder
Diameter3.2 mm
Immersion depth31 mm
Spindle length115 mm
Mounting Bracketyes
Sample container:600mL beaker low
Viscosity Accuracy (FSR)1 %
Viscosity Repeatibility (FSR)0.2 %
Min. FSR match ROTAVISC lo-vi2999.4 mPa.s
Max. FSR match ROTAVISC lo-vi599872 mPa.s
Min. FSR match ROTAVISC me-vi32000.0 mPa.s
Max. FSR match ROTAVISC me-vi6400000 mPa.s
Min. FSR match ROTAVISC hi-vi I64000.0 mPa.s
Max. FSR match ROTAVISC hi-vi I12800000 mPa.s
Min. FSR match ROTAVISC hi-vi II256000 mPa.s
Max. FSR match ROTAVISC hi-vi II51200000 mPa.s
Material in contact with mediumstainless steel 1.4404
Dimensions (W x H x D)8 x 117 x 8 mm
Weight0.009 kg
Permissible ambient temperature5 - 40 °C
Specifikationer
Varenr. IKA0025006831
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 0025006831
UNSPSC 41103312
CE-godkendt Ja
Filer

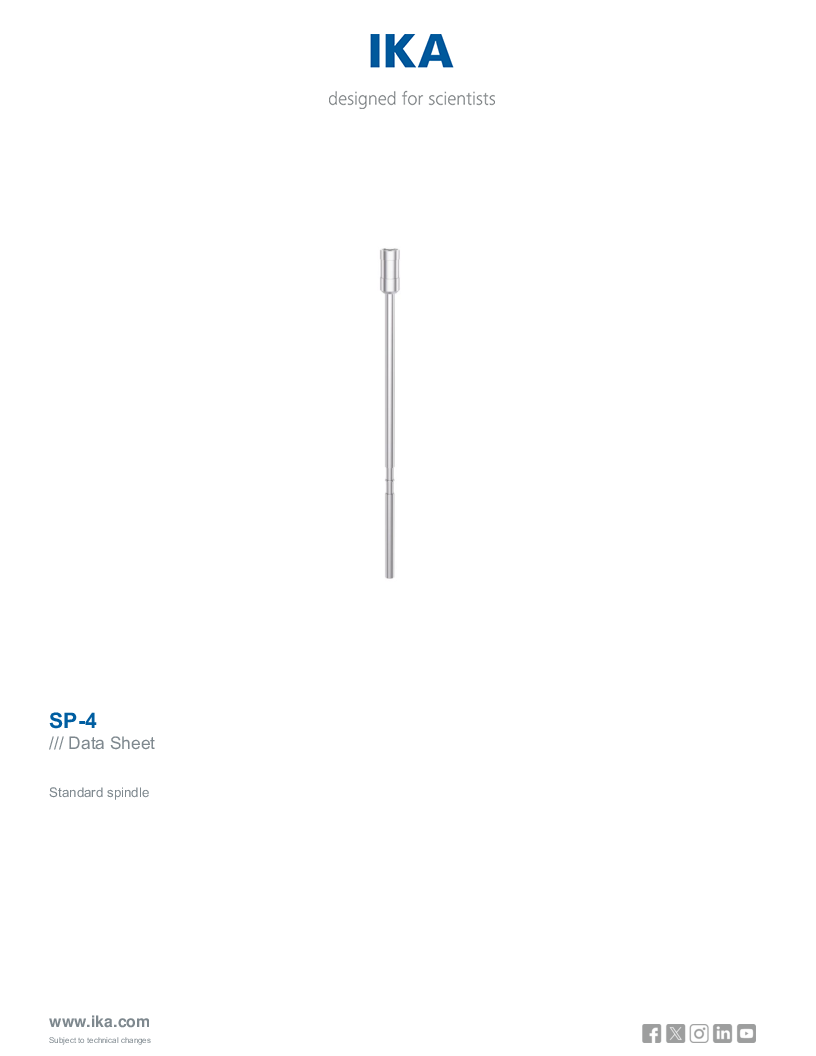

Data Sheet SP 4
Data Sheet SP 4
Vis Download
