VAN-SP-2 Vane spindle

Varenr. IKA0025006854

Vane spindle

Beskrivelse

VAN-SP-2

Vane spindle

Technical Data

Spindle geometryVane
ConnectionThread M2.5 LH
Quick plug connectoryes
Hook connectoryes
Diameter21.7 mm
Immersion depth69 mm
Spindle length122 mm
Viscosity Accuracy (FSR)2 %
Viscosity Repeatibility (FSR)0.2 %
Min. FSR match ROTAVISC lo-vi52 mPa.s
Max. FSR match ROTAVISC lo-vi10404 mPa.s
Min. FSR match ROTAVISC me-vi555 mPa.s
Max. FSR match ROTAVISC me-vi111000 mPa.s
Min. FSR match ROTAVISC hi-vi I1110 mPa.s
Max. FSR match ROTAVISC hi-vi I222000 mPa.s
Min. FSR match ROTAVISC hi-vi II4440 mPa.s
Max. FSR match ROTAVISC hi-vi II888000 mPa.s
Material in contact with mediumstainless steel 1.4404
Dimensions (W x H x D)22 x 124 x 22 mm
Weight0.019 kg
Permissible ambient temperature5 - 40 °C
Specifikationer
Varenr. IKA0025006854
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 0025006854
UNSPSC 41103312
CE-godkendt Ja
Filer

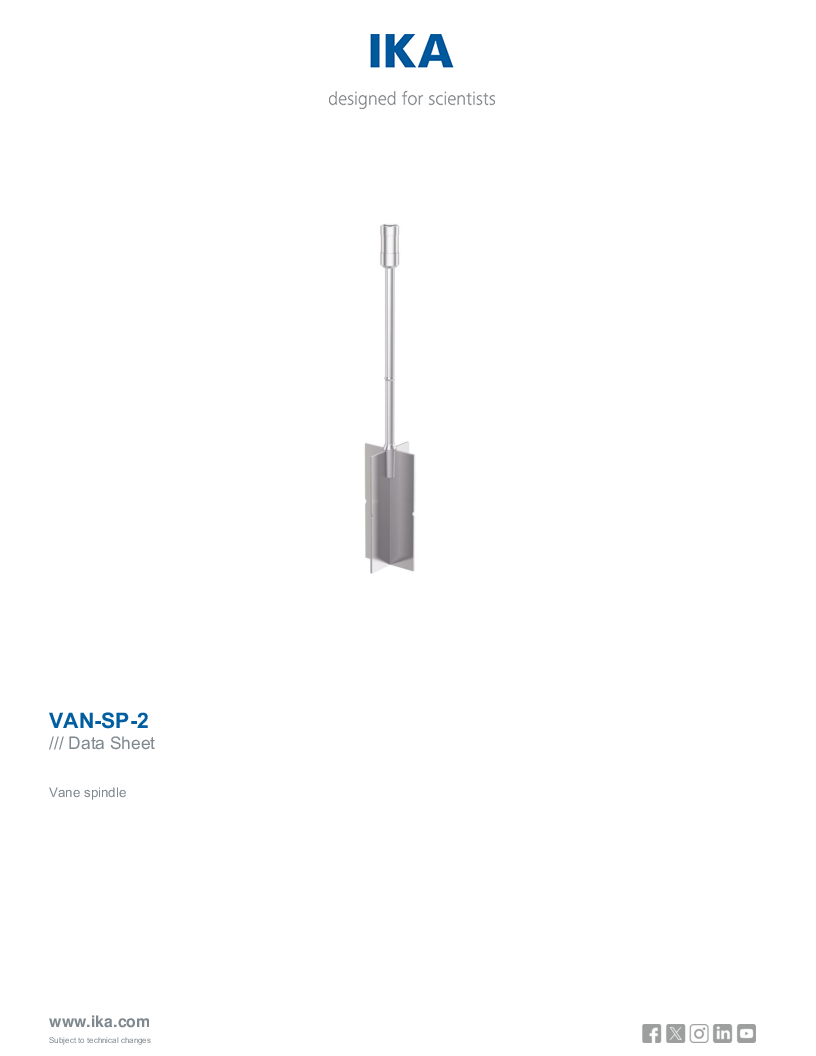

Data Sheet VAN SP 2
Data Sheet VAN SP 2
Vis Download
