VAN-SP-5 Vane spindle

Varenr. IKA0025008376

The vane spindle VAN-SP-5 allows the viscosity measurement of suspensions.

Beskrivelse

VAN-SP-5

The vane spindle VAN-SP-5 allows the viscosity measurement of suspensions.

Technical Data

Spindle geometryVane
ConnectionThread M2.5 LH
Quick plug connectoryes
Hook connectoryes
Diameter8.0 mm
Immersion depth16.1 mm
Spindle length80.9 mm
Viscosity Accuracy (FSR)5 %
Viscosity Repeatibility (FSR)0.2 %
Min. FSR match ROTAVISC lo-vi998.2 mPa.s
Max. FSR match ROTAVISC lo-vi199645 mPa.s
Min. FSR match ROTAVISC me-vi10650 mPa.s
Max. FSR match ROTAVISC me-vi2130000 mPa.s
Min. FSR match ROTAVISC hi-vi I21300 mPa.s
Max. FSR match ROTAVISC hi-vi I4260000 mPa.s
Min. FSR match ROTAVISC hi-vi II85200 mPa.s
Max. FSR match ROTAVISC hi-vi II17040000 mPa.s
Material in contact with mediumstainless steel 1.4404
Dimensions (W x H x D)12 x 83 x 12 mm
Weight0.007 kg
Permissible ambient temperature5 - 40 °C
Specifikationer
Varenr. IKA0025008376
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 0025008376
UNSPSC 41103312
CE-godkendt Ja
Filer

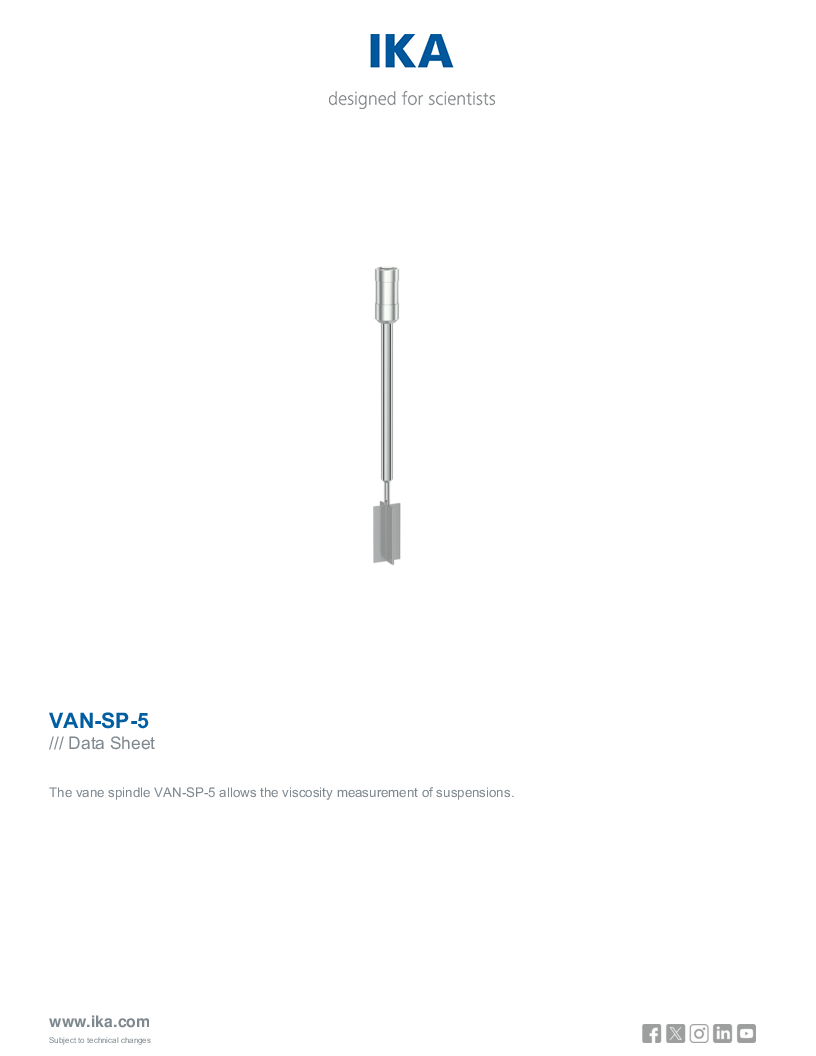

Data Sheet VAN SP 5
Data Sheet VAN SP 5
Vis Download
