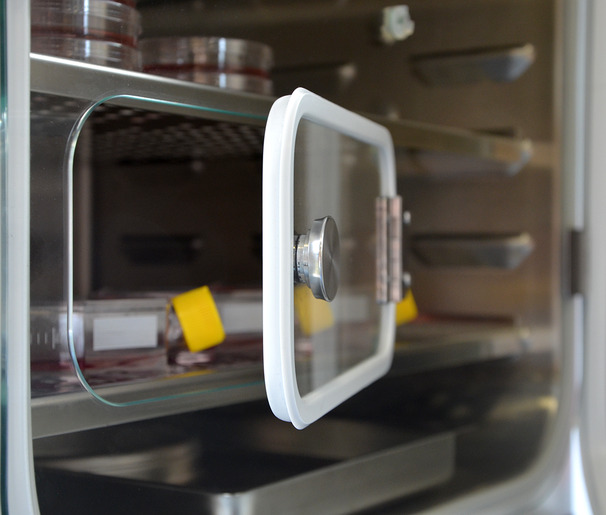

07 co2 incubator probenschnellzugriff 100 85 web 670x515 1
08 co2 incubator stapel 100 85 web 670x515 2
09 co2 schuettler100 85 web 670x515 2

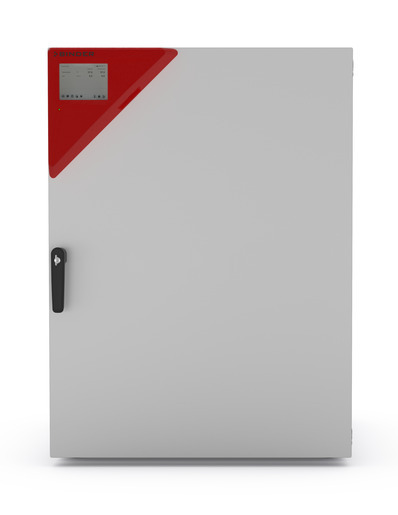

Binder CB-260 CO2 incubator, 267 l

Varenr. BIN96400013

Benefits

  • Safe - cell cultures receive maximum protection against contamination
  • Reliable - constant well-being conditions for the cells
  • Smart - simple routine cleaning and convenient operation
  • Economical - efficient operation without consumables
Beskrivelse

PRODUCT DESCRIPTION

The powerful and versatile CB CO incubator is suitable for cell-based assays in drug and medical research. This BINDER incubator is even suitable for complex cultivation experiments or individual environments with hypoxic conditions thanks to its comprehensive assortment of options and accessories.

Benefits

  • Safe - cell cultures receive maximum protection against contamination
  • Reliable - constant well-being conditions for the cells
  • Smart - simple routine cleaning and convenient operation
  • Economical - efficient operation without consumables

IMPORTANT CHARACTERISTICS

  • Optimized double-pan humidification system with condensation protection
  • Tried-and-tested anti-contamination concept with 180°C hot air sterilization
  • Hot-air sterilizable CO sensor with single-beam infrared technology

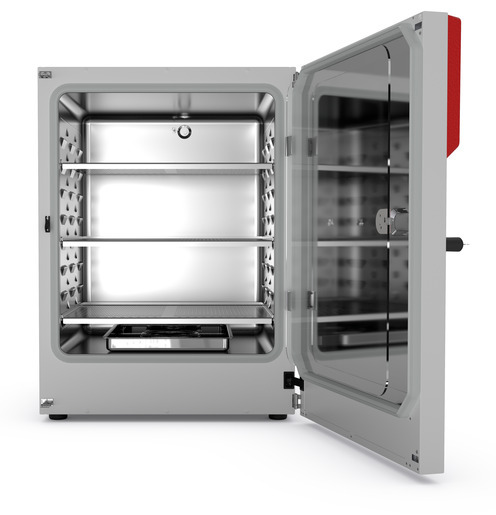

  • Seamless inner chamber made of stainless steel with flanges as shelf support system
  • Fanless interior with Venturi CO gas mixing nozzle
  • Intuitive touchscreen controller
  • Internal data recording, can be read out in open format via USB interface
  • Fault diagnosis system with visual and acoustic alarm
  • Interfaces:

Ethernet, USB, zero-voltage alarm contact

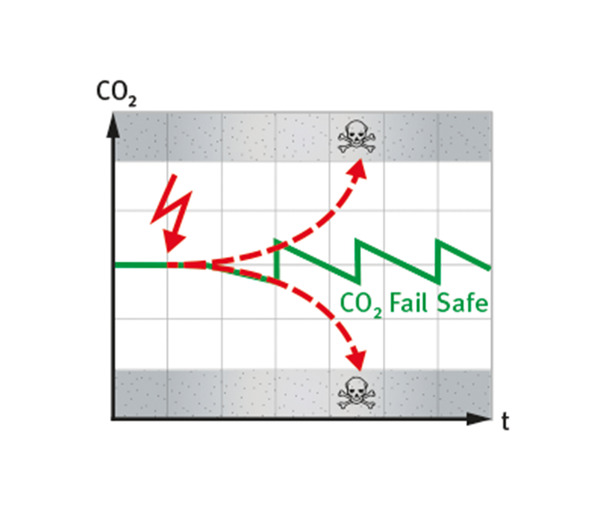

  • Fail-safe CO system for protecting the pH of cell cultures

PERFORMANCE DATA TEMPERATURE

Temperature range+5 °C above ambient temperature to 60 °C
Temperature uniformity at 37°C0.4 ± K
Temperature fluctuation at 37°C0.1 ± K
Recovery time after door was opened for 30 s at 37°C6 min

PERFORMANCE DATA CLIMATE

Humidity range90 ...95 % RH

GAS DATA

CO range0 ...20 Vol.-% CO2
CO measuring technologyIR
CO recovery time after door was opened for 30 s at 5 vol. % CO5 min

ELECTRICAL DATA

Rated Voltage200...230 V
Power frequency50/60 Hz
Nominal power1,5 kW
Unit fuse10,0 A
Phase (Nominal voltage)1~

MEASURES

Interior volume267 L
Net weight of the unit (empty)125 kg
Load per rack10 kg
Permitted load40 kg
Wall clearance back100 mm
Wall clearance sidewise50 mm

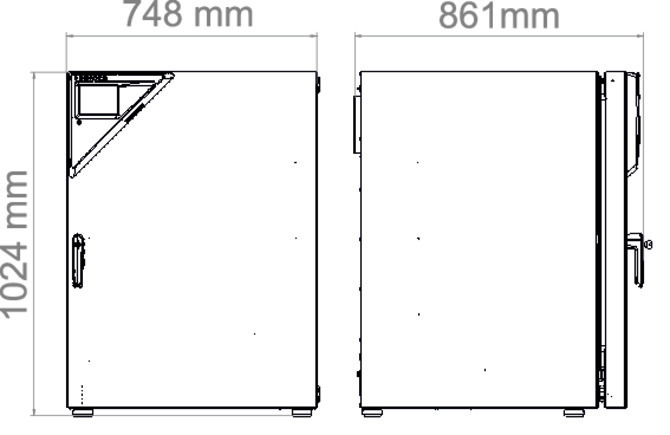

HOUSING DIMENSIONS NOT INCL. FITTINGS AND CONNECTIONS

Width net740 mm
Height net1020 mm
Depth net785 mm

INTERNAL DIMENSIONS

Interior width620 mm
Interior height750 mm
Interior depth575 mm
Inner doors1
Unit doors1

ENVIRONMENT-SPECIFIC DATA

Sound-pressure level41 dB(A)
Energy consumption at 37°C65 Wh/h

FIXTURES

Number of shelves (std./max.)3/8
Specifikationer
Varenr. BIN96400013
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9640-0013
CE-godkendt Ja
