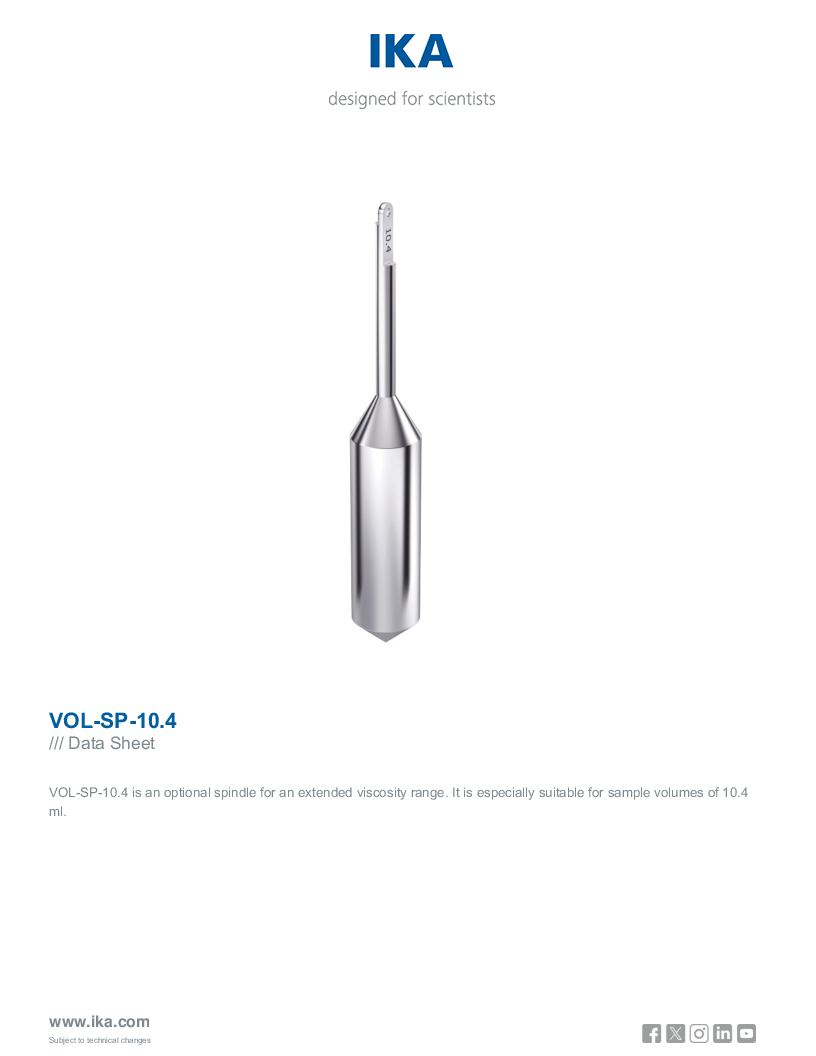

VOL-SP-10.4 Spindle for VOLS-1, 10.4 ml

Name: VOL-SP-10.4 Spindle for VOLS-1, 10.4 ml
Brand: IKA
SKU: IKA0025006850
Price: 3737.50 DKK
Availability: InStock

Varenr. IKA0025006850

VOL-SP-10.4 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 10.4 ml.

Beskrivelse

VOL-SP-10.4 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 10.4 ml.

Spindle geometry	Cylinder
Connection	Thread M2.5 LH
Hook connector	yes
Diameter	11.8 mm
Immersion depth	45.3 mm
Spindle length	76.7 mm
Sample volume	10.4 ml
Flow Jacket	yes
Mounting Bracket	yes
Sample container:	Specified chamber
Working temperature max.	100 °C
Viscosity Accuracy (FSR)	2 %
Viscosity Repeatibility (FSR)	0.2 %
Min. FSR match ROTAVISC lo-vi	117.2 mPa.s
Max. FSR match ROTAVISC lo-vi	23433 mPa.s
Min. FSR match ROTAVISC me-vi	1250 mPa.s
Max. FSR match ROTAVISC me-vi	250000 mPa.s
Min. FSR match ROTAVISC hi-vi I	2500 mPa.s
Max. FSR match ROTAVISC hi-vi I	500000 mPa.s
Min. FSR match ROTAVISC hi-vi II	10000 mPa.s
Max. FSR match ROTAVISC hi-vi II	2000000 mPa.s
Material in contact with medium	stainless steel 1.4404
Dimensions (W x H x D)	14 x 79 x 14 mm
Weight	0.035 kg
Permissible ambient temperature	5 - 40 °C
