VOL-SP-13.5 Spindle for VOLS-1, 13.5 ml

Varenr. IKA0025006852

VOL-SP-13.5 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 13.5 ml.

Beskrivelse

VOL-SP-13.5

VOL-SP-13.5 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 13.5 ml.

Technical Data

Spindle geometryCylinder
ConnectionThread M2.5 LH
Hook connectoryes
Diameter7.6 mm
Immersion depth33.6 mm
Spindle length66.7 mm
Sample volume13.5 ml
Flow Jacketyes
Mounting Bracketyes
Sample container:Specified chamber
Working temperature max.100 °C
Viscosity Accuracy (FSR)2 %
Viscosity Repeatibility (FSR)0.2 %
Min. FSR match ROTAVISC lo-vi468.7 mPa.s
Max. FSR match ROTAVISC lo-vi93730 mPa.s
Min. FSR match ROTAVISC me-vi5000 mPa.s
Max. FSR match ROTAVISC me-vi1000000 mPa.s
Min. FSR match ROTAVISC hi-vi I10000 mPa.s
Max. FSR match ROTAVISC hi-vi I2000000 mPa.s
Min. FSR match ROTAVISC hi-vi II40000 mPa.s
Max. FSR match ROTAVISC hi-vi II8000000 mPa.s
Material in contact with mediumstainless steel 1.4404
Dimensions (W x H x D)10 x 69 x 10 mm
Weight0.012 kg
Permissible ambient temperature5 - 40 °C
Specifikationer
Varenr. IKA0025006852
Antal / pk 1
Enhed stk
Min. bestilling 1
UNSPSC 41103312
CE-godkendt Ja
Filer

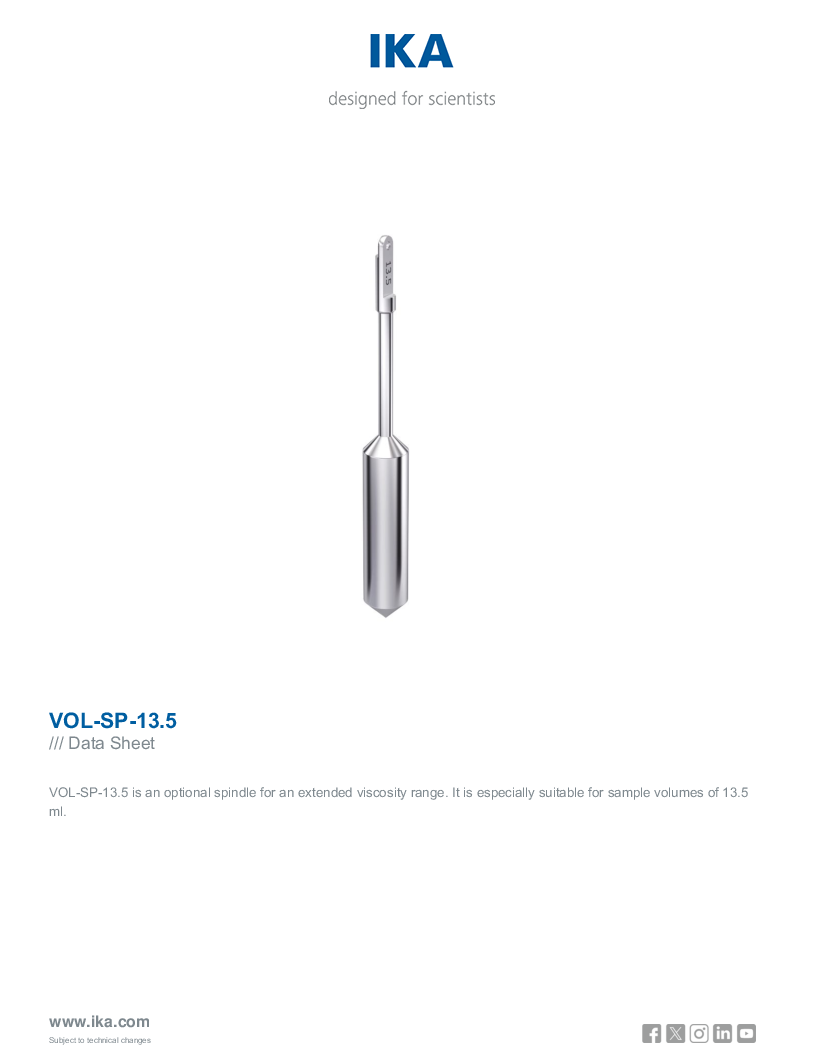

Data Sheet VOL SP 13.5
