VOL-SP-16.1 Spindle for VOLS-1, 16.1 ml

Varenr. IKA0025006848

VOL-SP-16.1 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 16.1 ml.

Beskrivelse

VOL-SP-16.1

VOL-SP-16.1 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 16.1 ml.

Technical Data

Spindle geometryCylinder
ConnectionThread M2.5 LH
Hook connectoryes
Diameter4.8 mm
Immersion depth23.9 mm
Spindle length46.6 mm
Sample volume16.1 ml
Flow Jacketyes
Mounting Bracketyes
Sample container:Specified chamber
Working temperature max.100 °C
Viscosity Accuracy (FSR)2 %
Viscosity Repeatibility (FSR)0.2 %
Min. FSR match ROTAVISC lo-vi2399.5 mPa.s
Max. FSR match ROTAVISC lo-vi479898 mPa.s
Min. FSR match ROTAVISC me-vi25600 mPa.s
Max. FSR match ROTAVISC me-vi5120000 mPa.s
Min. FSR match ROTAVISC hi-vi I51200 mPa.s
Max. FSR match ROTAVISC hi-vi I10240000 mPa.s
Min. FSR match ROTAVISC hi-vi II204800 mPa.s
Max. FSR match ROTAVISC hi-vi II40960000 mPa.s
Material in contact with mediumstainless steel 1.4404
Dimensions (W x H x D)7 x 49 x 7 mm
Weight0.003 kg
Permissible ambient temperature5 - 40 °C
Specifikationer
Varenr. IKA0025006848
Antal / pk 1
Enhed stk
Min. bestilling 1
UNSPSC 41103312
CE-godkendt Ja
Filer

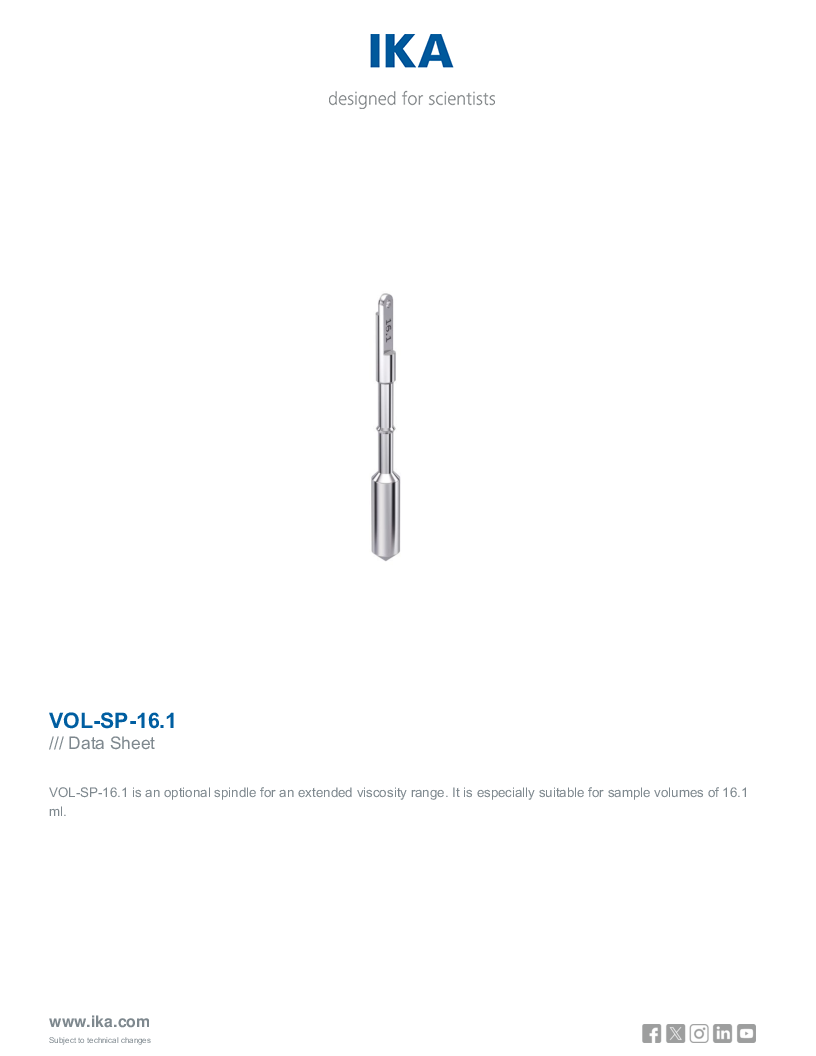

Data Sheet VOL SP 16.1
