VOL-SP-7.1 Spindle for VOLS-1, 7.1 ml

Varenr. IKA0025006849

VOL-SP-7.1 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 7.1 ml.

Beskrivelse

VOL-SP-7.1

VOL-SP-7.1 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 7.1 ml.

Technical Data

Spindle geometryCylinder
ConnectionThread M2.5 LH
Hook connectoryes
Diameter16.8 mm
Immersion depth44.1 mm
Spindle length76.7 mm
Sample volume7.1 ml
Flow Jacketyes
Mounting Bracketyes
Sample container:Specified chamber
Working temperature max.100 °C
Viscosity Accuracy (FSR)2 %
Viscosity Repeatibility (FSR)0.2 %
Min. FSR match ROTAVISC lo-vi23.4 mPa.s
Max. FSR match ROTAVISC lo-vi4687 mPa.s
Min. FSR match ROTAVISC me-vi250 mPa.s
Max. FSR match ROTAVISC me-vi50000 mPa.s
Min. FSR match ROTAVISC hi-vi I500 mPa.s
Max. FSR match ROTAVISC hi-vi I100000 mPa.s
Min. FSR match ROTAVISC hi-vi II2000 mPa.s
Max. FSR match ROTAVISC hi-vi II400000 mPa.s
Material in contact with mediumstainless steel 1.4404
Dimensions (W x H x D)19 x 79 x 19 mm
Weight0.066 kg
Permissible ambient temperature5 - 40 °C
Specifikationer
Varenr. IKA0025006849
Antal / pk 1
Enhed stk
Min. bestilling 1
UNSPSC 41103312
CE-godkendt Ja
Filer

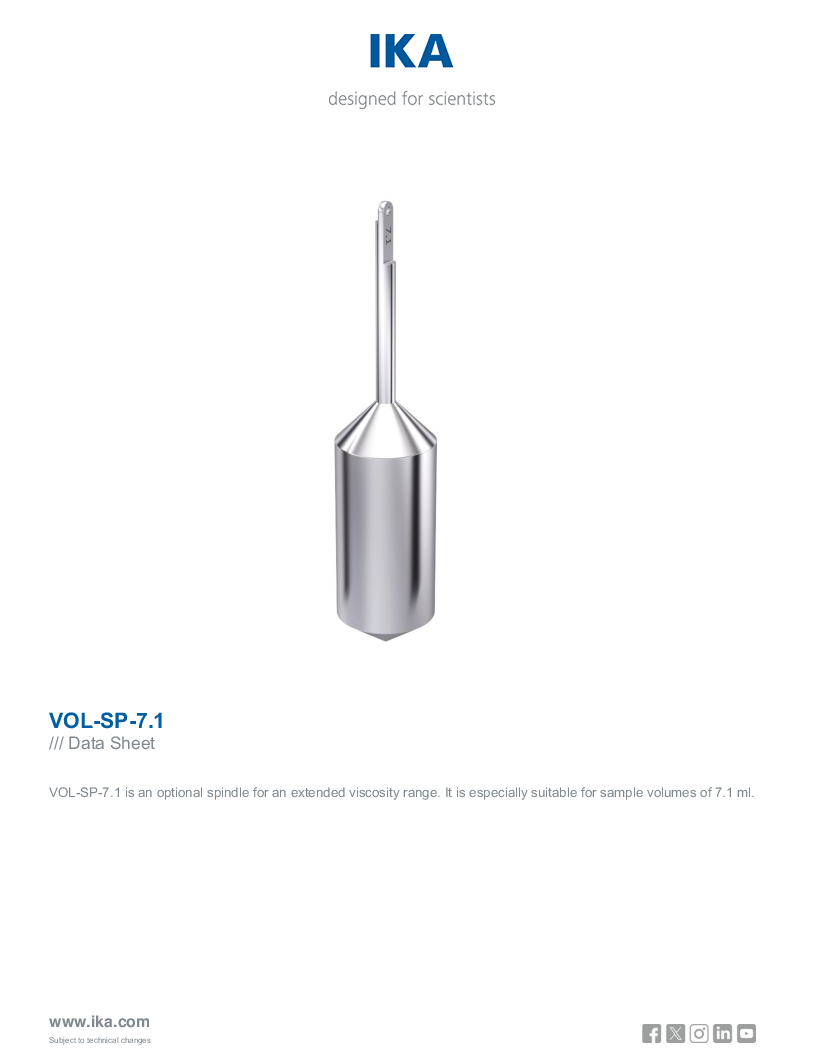

Data Sheet VOL SP 7.1
