01-ika-0025006847

VOL-SP-9.4 Spindle for VOLS-1, 9.4 ml

Varenr. IKA0025006847

VOL-SP-9.4 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 9.4 ml.

Beskrivelse

VOL-SP-9.4

VOL-SP-9.4 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 9.4 ml.

Technical Data

Spindle geometryCylinder
ConnectionThread M2.5 LH
Hook connectoryes
Diameter9.4 mm
Immersion depth32 mm
Spindle length77.3 mm
Sample volume9.4 ml
Flow Jacketyes
Mounting Bracketyes
Sample container:Specified chamber
Working temperature max.100 °C
Viscosity Accuracy (FSR)2 %
Viscosity Repeatibility (FSR)0.2 %
Min. FSR match ROTAVISC lo-vi299.9 mPa.s
Max. FSR match ROTAVISC lo-vi59987 mPa.s
Min. FSR match ROTAVISC me-vi3200 mPa.s
Max. FSR match ROTAVISC me-vi640000 mPa.s
Min. FSR match ROTAVISC hi-vi I6400 mPa.s
Max. FSR match ROTAVISC hi-vi I1280000 mPa.s
Min. FSR match ROTAVISC hi-vi II25600 mPa.s
Max. FSR match ROTAVISC hi-vi II5120000 mPa.s
Material in contact with mediumstainless steel 1.4404
Dimensions (W x H x D)11 x 79 x 11 mm
Weight0.018 kg
Permissible ambient temperature5 - 40 °C
Specifikationer
Varenr. IKA0025006847
Antal / pk 1
Enhed stk
Min. bestilling 1
UNSPSC 41103312
CE-godkendt Ja
Filer

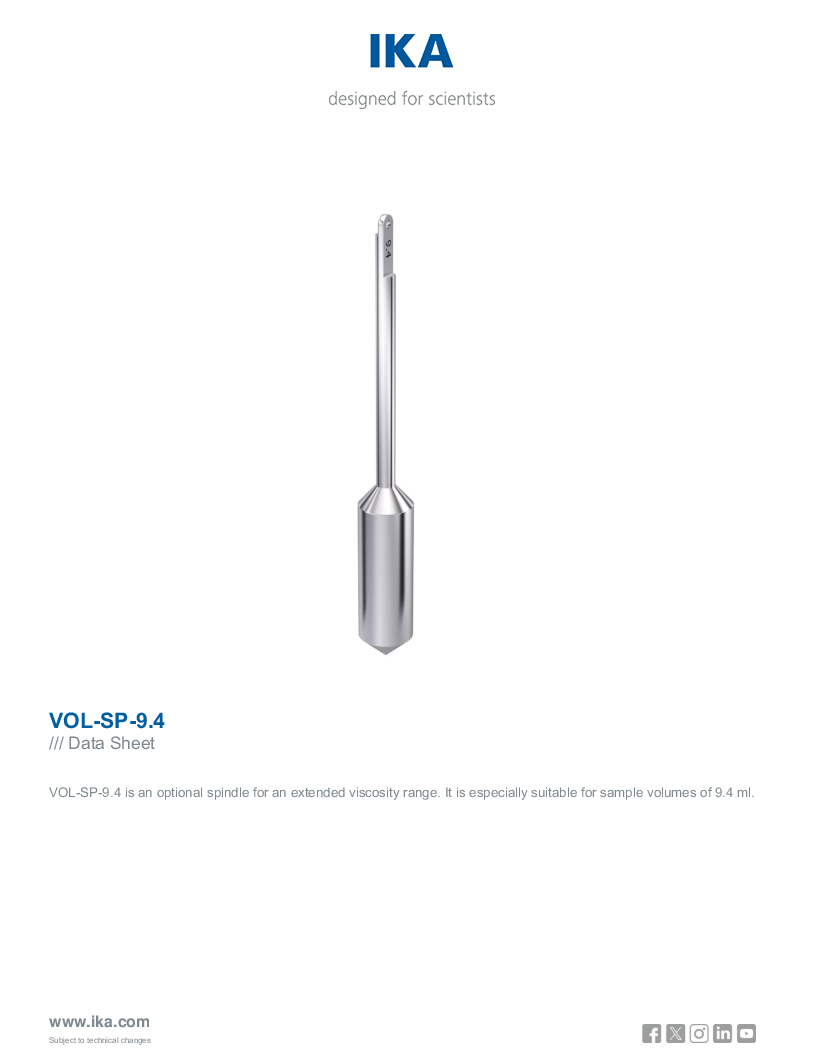

Data Sheet VOL SP 9.4
Data Sheet VOL SP 9.4
Vis Download
