IKA RH basic Magnetomrører

Varenr. IKA0005019700

Newly designed, economic magnetic stirrer with heating. Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5. Highly accurate temperature control is possible with sensor placed directly in the medium. High heat output of 600 watts and stainless steel compound hot plate ensures rapid heating. Adjustable safety temperature from 100 to 360 °C.

Beskrivelse

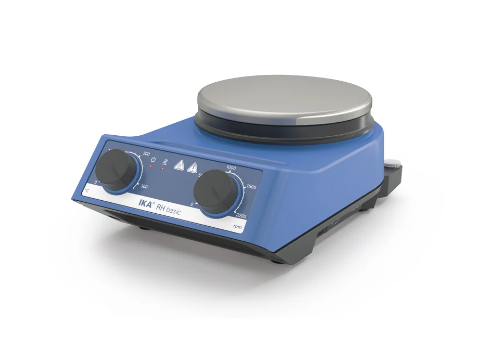

RH basic

Newly designed, economic magnetic stirrer with heating. Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5. Highly accurate temperature control is possible with sensor placed directly in the medium. High heat output of 600 watts and stainless steel compound hot plate ensures rapid heating. Adjustable safety temperature from 100 to 360 °C.

  • Soft-start of the stirring motor
  • Includes M 10 thread for a support rod
  • Strong magnetic field and wide speed range for volumes up to 15 liters

Scope of delivery

  • RH basic
  • IKAFLON® 20 Magnetic stirring bar
  • IKAFLON® 30 Magnetic stirring bar
  • IKAFLON® 40 Magnetic stirring bar
  • H 102 Cover for RH basic
  • H 102.1 Protection handle
  • Screwdriver (use for safety circuit)

Technical Data

Number of stirring positions1
Stirring quantity max. per stirring position (H2O)15 l
Maximun load20 kg
Motor rating output2 W
Direction of rotationleft
Speed display set-valuescale
Speed adjustmentTurning knob
Speed range100 - 2000 rpm
Stirring bar length20 - 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)+12 K
Heat output600 W
Temperature display set-valuescale
Temperature unit°C
Heating temperature range50 - 320 °C
Heat controlscale
Temperature setting range0 - 320 °C
Connection for ext. temperature sensorETS-D5
Characteristics in the medium with temperature sensor1l M50 Oil at H1500
Adjustable safety circuit100 - 360 °C
Set-up plate materialstainless steel 1.4301
Set-up plate dimensionsØ 135 mm
Heating rate (1l H2O in H1500)6 K/min
Dimensions (W x H x D)160 x 100 x 250 mm
Weight3.135 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 21
Voltage230 V
Frequency50/60 Hz
Power input620 W
Specifikationer
Varenr. IKA0005019700
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 0005019700
Type Single | Varme
CE-godkendt Ja
