Binder MKF 1020 Klimakammer, -40-180 C, 991 liter

Varenr. BIN90200409

Benefits

  • Homogeneous climate conditions thanks to APT.line technology.
  • Automatic water and wastewater management.
  • Pressure humidification with fast response times.
  • Comprehensive programming and data acquisition.
  • Large heated viewing window.
Beskrivelse

A BINDER MKF series environmental simulation chamber is ideally suited for any cold and heat testing based on current temperature and climate testing methods according to DIN and IEC standards. The comprehensive standard equipment for this environmental simulation chamber ensures ease of operation.

Benefits

  • Homogeneous climate conditions thanks to APT.line technology
  • Automatic water and wastewater management
  • Pressure humidification with fast response times
  • Comprehensive programming and data acquisition
  • Large heated viewing window

Important characteristics

  • Temperature range: -40 °C to +180 °C
  • Humidity range: 10 % to 98 % RH
  • Integrated water-storage tank, 20 liters
  • 4 zero-voltage relay contacts
  • APT.line preheating chamber technology
  • Programmable condensation protection for test material
  • Heated viewing window with LED interior lighting
  • Humidity regulation with capacitative humidity sensor and vapor humidification
  • BINDER Multi Management Software APT-COM 4 Basic Edition
  • Troubleshooting system with visual and audible alarms
  • Intuitive touchscreen controller with time-segment and real-time programming
  • Internal data logger, measured values can be read out in open format via USB
  • Access port with silicone plug: 50 mm, left
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • 4 castors, two with brakes
  • Computer interface: Ethernet
  • Adjustable ramp function
  • Integrated chart recorder
  • Real-time clock
  • Door heating
  • Alarm notification in the event of insufficient water in fresh water tank
  • 1 stainless steel rack
  • Complete safety connection kit for water supply and drainage, up to 1 m height
  • Inner chamber made of stainless steel
  • CFC-free refrigerant R-452A
  • Cooling with compressor cooling unit

Performance Data Temperature

DesignationMKF1020-400VMKF1020-480V-C
Temperature range-40...180 °C-40...180 °C
Temperature uniformity dependent on set value0.1...1.8 ± K0.1...1.8 ± K
Temperature fluctuation dependent on set value0.1...0.5 ± K0.1...0.5 ± K

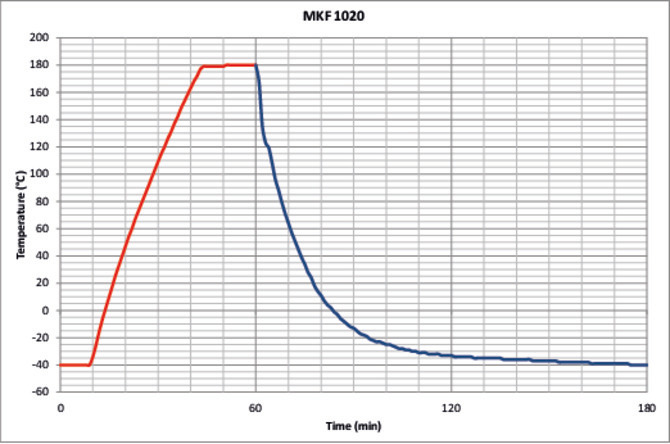

Average heating-up rate according to IEC 60068-3-55.5 K/min5.5 K/min
Cooling down time from 180°C to -40°C120 min120 min
Average cooling down time according to IEC 60068-3-55 K/min5 K/min

Performance Data Climate

DesignationMKF1020-400VMKF1020-480V-C

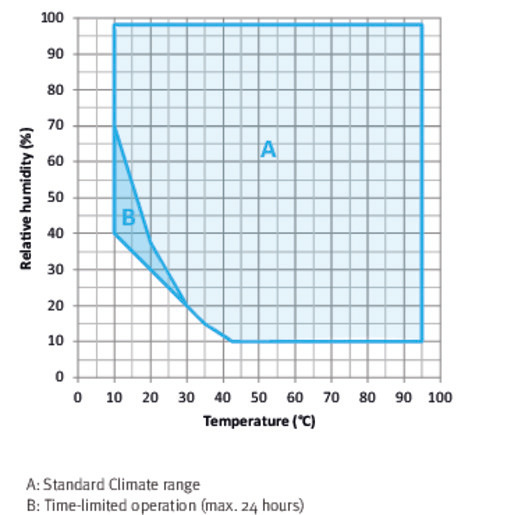

Humidity range10...98 % RH10...98 % RH
Temperature fluctuation with humidity dependent on set value5...94 °C5...94 °C

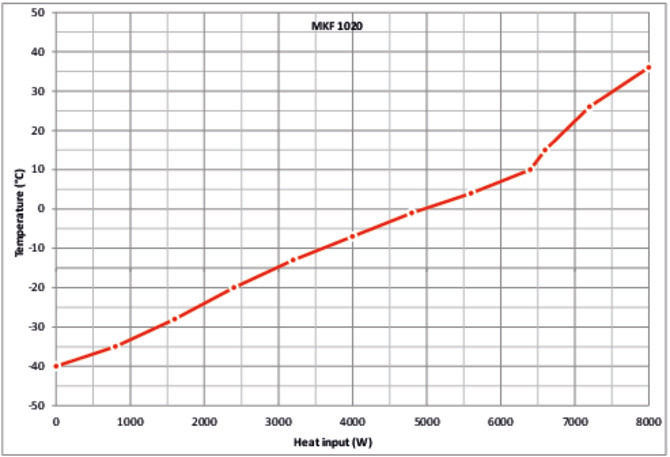

Max. heat compensation at 25°C and 90% RH1,500 W1,500 W

Electrical data

DesignationMKF1020-400VMKF1020-480V-C
Rated Voltage400 V480 V
Power frequency50 Hz60 Hz
Nominal power12,5 kW12,5 kW
Unit fuse32,0 A32,0 A
Phase (Nominal voltage)3~3~

Measures

DesignationMKF1020-400VMKF1020-480V-C
Interior volume991 L991 L
Net weight of the unit (empty)636 kg636 kg
Load per rack40 kg40 kg
Permitted load200 kg200 kg
Wall clearance back300 mm300 mm
Wall clearance sidewise200 mm200 mm

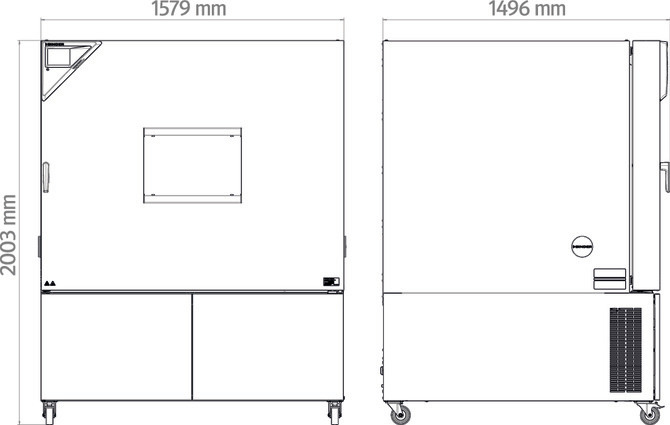

Housing dimensions not incl. fittings and connections

DesignationMKF1020-400VMKF1020-480V-C
Width net1,580 mm1,580 mm
Height net2,005 mm2,005 mm
Depth net1,480 mm1,480 mm

Internal Dimensions

DesignationMKF1020-400VMKF1020-480V-C
Interior width1,200 mm1,200 mm
Interior height1,020 mm1,020 mm
Interior depth810 mm810 mm
Viewing window width508 mm508 mm
Viewing window height300 mm300 mm
Unit doors11

Environment-specific data

DesignationMKF1020-400VMKF1020-480V-C
Sound-pressure level69 dB(A)69 dB(A)
Energy consumption at 25°C and 60% RH2,200 Wh/h2,200 Wh/h

Fixtures

DesignationMKF1020-400VMKF1020-480V-C
Number of shelves (std./max.)1/111/11
Specifikationer
Varenr. BIN90200409
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9020-0409
CE-godkendt Ja
