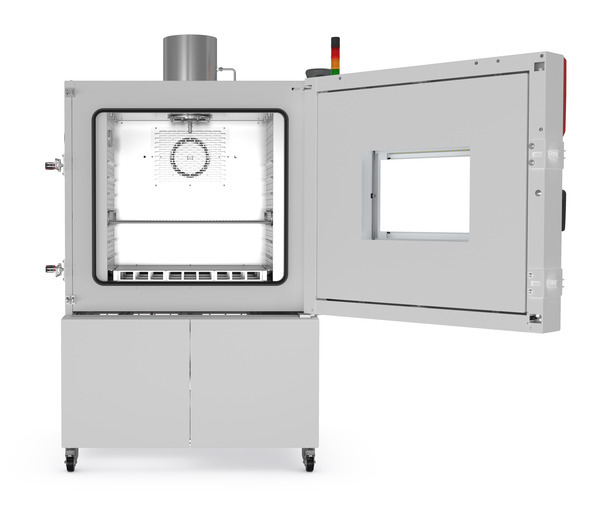

03 litmk 240 of web 670x515

LITMK240-400V, Standard, Series LIT MK - Battery t

Varenr. BIN90200402

Benefits

  • Safety thanks to extensive protective measures.
  • Homogeneous climate conditions thanks to APT.line preheating chamber.
  • Extensive programming and data collection.
  • Excellent overview of the test object thanks to large heated viewing window.
Beskrivelse

Battery test chambers from BINDER are ideal for aging, performance, and stress testing in quality assurance and battery production. To ensure maximum safety, all the chambers in the LIT MK series are fitted with detection and fire suppression equipment as standard. TÜV SÜD AG has recently confirmed that the LIT MK 240 and LIT MK 720 battery test chambers are suitable for EUCAR LEVEL 6.

Benefits

  • Safety thanks to extensive protective measures
  • Homogeneous climate conditions thanks to APT.line preheating chamber
  • Extensive programming and data collection
  • Excellent overview of the test object thanks to large heated viewing window

Important characteristics

  • Temperature range: -40°C to +110°C
  • Class 2 independent temperature safety device when temperature is set to +120°C
  • Reversible stainless steel pressure relief flap installed in the middle on top of the unit
  • Enhanced door-locking mechanism with reinforced brackets
  • Monitoring of CO, H2, O2, and temperature in testing area atmosphere
  • Inertization equipment
  • CO2 fire suppression
  • APT.line preheating chamber technology
  • Programmable condensation protection for samples
  • Heated viewing window with LED interior lighting
  • BINDER Multi Management Software APT-COM basic edition
  • Intuitive touchscreen controller with time-segment and real-time programming
  • Internal data logger, measured values can be read out in open format via USB
  • Access port with silicone plug, 50 mm, left
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Computer interface: Ethernet
  • 1 stainless steel rack, can be freely positioned
  • CFC-free refrigerant R-452A
  • Cooling with compressor cooling unit
  • TÜV SÜD confirms that the LIT MK 240 and LIT MK 720 chambers are suitable for EUCAR level 6

Performance Data Temperature

DesignationLITMK240-400VLITMK240-480V-C
Temperature range-40...110 °C-40...110 °C
Temperature uniformity dependent on set value0.1...0.5 ± K0.1...0.5 ± K
Temperature fluctuation dependent on set value0.1...0.5 ± K0.1...0.5 ± K
Average heating-up rate according to IEC 60068-3-55 K/min5 K/min
Cooling down time from 110°C to -40°C160 min160 min
Average cooling down time according to IEC 60068-3-53.5 K/min3.5 K/min

Electrical data

DesignationLITMK240-400VLITMK240-480V-C
Rated Voltage400 V480 V
Power frequency50 Hz60 Hz
Nominal power5,6 kW5,6 kW
Unit fuse16,0 A16,0 A
Phase (Nominal voltage)3~3~

Measures

DesignationLITMK240-400VLITMK240-480V-C
Interior volume228 L228 L
Net weight of the unit (empty)375 kg375 kg
Load per rack30 kg30 kg
Permitted load70 kg70 kg
Wall clearance back300 mm300 mm
Wall clearance sidewise200 mm200 mm

Housing dimensions not incl. fittings and connections

DesignationLITMK240-400VLITMK240-480V-C
Width net1,335 mm1,335 mm
Height net1,929 mm1,929 mm
Depth net925 mm925 mm

Internal Dimensions

DesignationLITMK240-400VLITMK240-480V-C
Interior width735 mm735 mm
Interior height700 mm700 mm
Interior depth443 mm443 mm
Viewing window width508 mm508 mm
Viewing window height300 mm300 mm
Unit doors11

Environment-specific data

DesignationLITMK240-400VLITMK240-480V-C
Sound-pressure level62 dB(A)67 dB(A)
Energy consumption at 20°C1,300 Wh/h1,300 Wh/h

Fixtures

DesignationLITMK240-400VLITMK240-480V-C
Number of shelves (std./max.)1/61/6
Specifikationer
Varenr. BIN90200402
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9020-0402
CE-godkendt Ja
