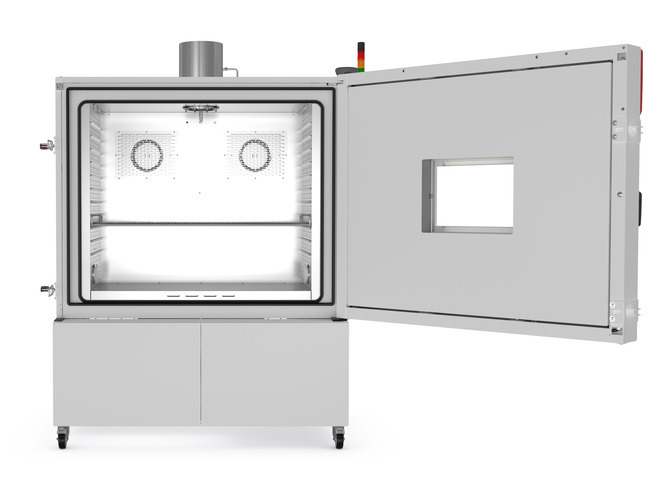

03 litmk 720 of web 670x515

LITMK720-400V, Standard, Series LIT MK - Battery t

Varenr. BIN90200403

Benefits

  • Safety thanks to extensive protective measures.
  • Homogeneous climate conditions thanks to APT.line preheating chamber.
  • Extensive programming and data collection.
  • Excellent overview of the test object thanks to large heated viewing window.
Beskrivelse

Battery test chambers from BINDER are ideal for aging, performance, and stress testing in quality assurance and battery production. To ensure maximum safety, all the chambers in the LIT MK series are fitted with detection and fire suppression equipment as standard. TÜV SÜD AG has recently confirmed that the LIT MK 240 and LIT MK 720 battery test chambers are suitable for EUCAR LEVEL 6.

Benefits

  • Safety thanks to extensive protective measures
  • Homogeneous climate conditions thanks to APT.line preheating chamber
  • Extensive programming and data collection
  • Excellent overview of the test object thanks to large heated viewing window

Important characteristics

  • Temperature range: -40°C to +110°C
  • Class 2 independent temperature safety device when temperature is set to +120°C
  • Reversible stainless steel pressure relief flap installed in the middle on top of the unit
  • Enhanced door-locking mechanism with reinforced brackets
  • Monitoring of CO, H2, O2, and temperature in testing area atmosphere
  • Inertization equipment
  • CO2 fire suppression
  • APT.line preheating chamber technology
  • Programmable condensation protection for samples
  • Heated viewing window with LED interior lighting
  • BINDER Multi Management Software APT-COM basic edition
  • Intuitive touchscreen controller with time-segment and real-time programming
  • Internal data logger, measured values can be read out in open format via USB
  • Access port with silicone plug, 50 mm, left
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Computer interface: Ethernet
  • 1 stainless steel rack, can be freely positioned
  • CFC-free refrigerant R-452A
  • Cooling with compressor cooling unit
  • TÜV SÜD confirms that the LIT MK 240 and LIT MK 720 chambers are suitable for EUCAR level 6

Performance Data Temperature

DesignationLITMK720-400VLITMK720-480V-C
Temperature range-40...110 °C-40...110 °C
Temperature uniformity dependent on set value0.3...2 ± K0.3...2 ± K
Temperature fluctuation dependent on set value0.1...0.5 ± K0.1...0.5 ± K
Average heating-up rate according to IEC 60068-3-54 K/min4 K/min
Cooling down time from 110°C to -40°C100 min100 min
Average cooling down time according to IEC 60068-3-53.4 K/min3.4 K/min

Electrical data

DesignationLITMK720-400VLITMK720-480V-C
Rated Voltage400 V480 V
Power frequency50 Hz60 Hz
Nominal power8,7 kW8,7 kW
Unit fuse16,0 A16,0 A
Phase (Nominal voltage)3~3~

Measures

DesignationLITMK720-400VLITMK720-480V-C
Interior volume734 L734 L
Net weight of the unit (empty)584 kg584 kg
Load per rack40 kg40 kg
Permitted load160 kg160 kg
Wall clearance back300 mm300 mm
Wall clearance sidewise200 mm200 mm

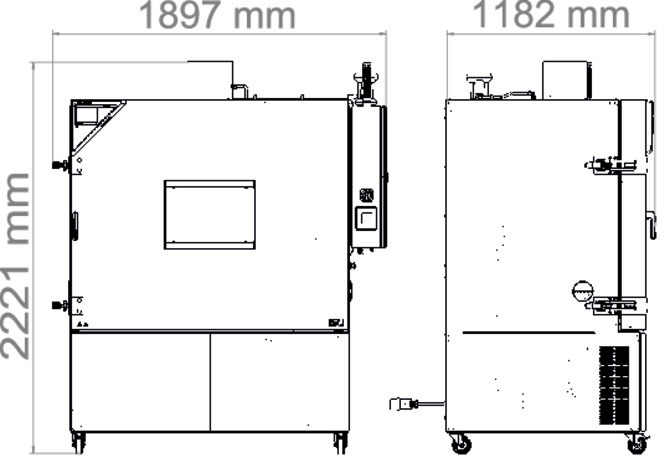

Housing dimensions not incl. fittings and connections

DesignationLITMK720-400VLITMK720-480V-C
Width net1,794 mm1,794 mm
Height net2,005 mm2,005 mm
Depth net1,186 mm1,186 mm

Internal Dimensions

DesignationLITMK720-400VLITMK720-480V-C
Interior width1,200 mm1,200 mm
Interior height1,020 mm1,020 mm
Interior depth600 mm600 mm
Viewing window width508 mm508 mm
Viewing window height300 mm300 mm
Unit doors11

Environment-specific data

DesignationLITMK720-400VLITMK720-480V-C
Sound-pressure level65 dB(A)67 dB(A)
Energy consumption at 20°C1,900 Wh/h1,900 Wh/h

Fixtures

DesignationLITMK720-400VLITMK720-480V-C
Number of shelves (std./max.)1/111/11
Specifikationer
Varenr. BIN90200403
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9020-0403
CE-godkendt Ja
