MK240-400V, Standard, Series MK - Dynamic climate

Name: MK240-400V, Standard, Series MK - Dynamic climate
Brand: BINDER
SKU: BIN90200376
Availability: InStock

Varenr. BIN90200376

Benefits

Homogeneous climate conditions thanks to APT.line technology.
Comprehensive programming and data acquisition.
Large heated viewing window.

Beskrivelse

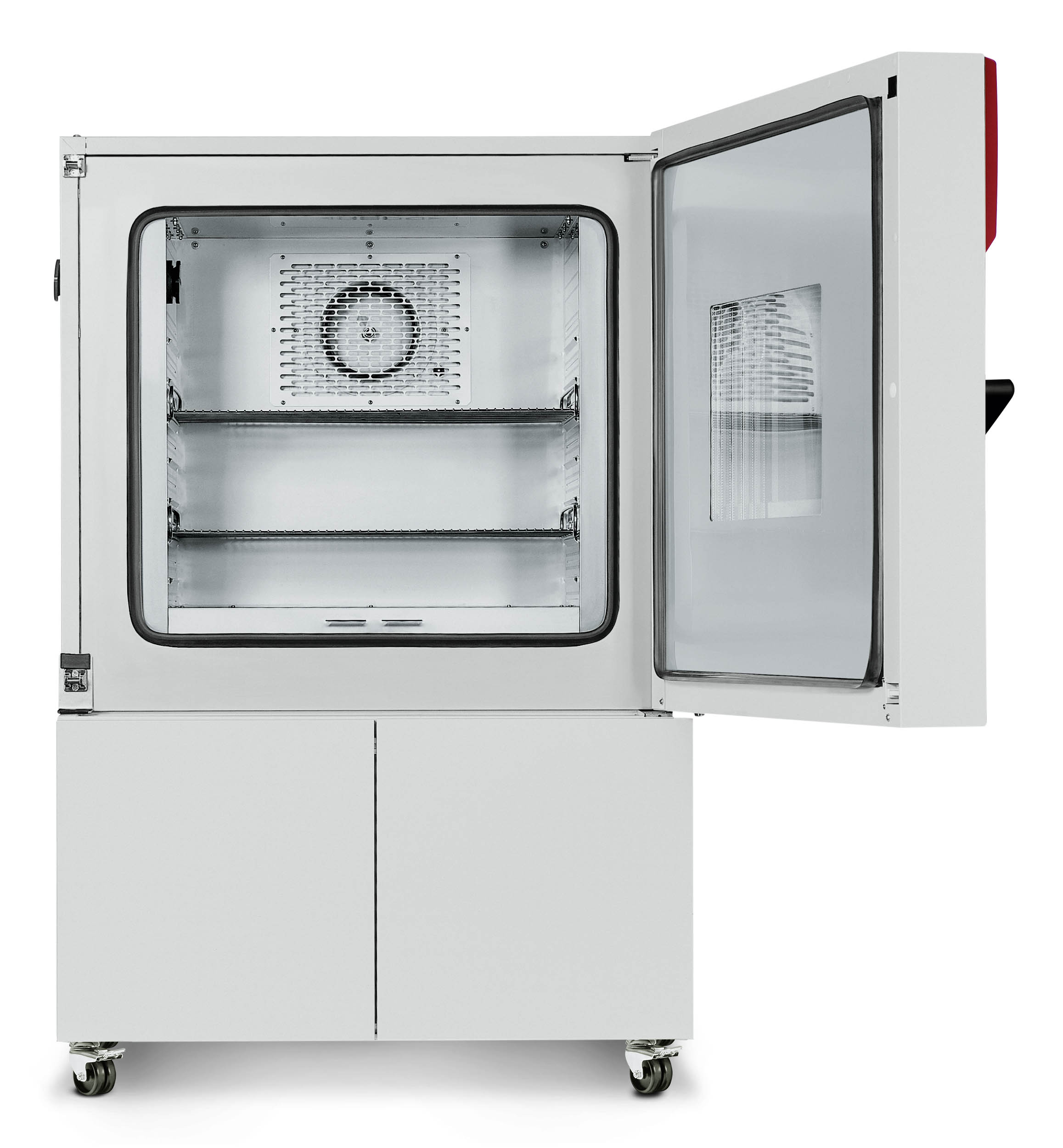

The BINDER MK series chamber is suitable for all heat and cold tests between -40 °C and 180 °C. The MK is a clever alternative to complex individual solutions for cyclical temperature tests.

Benefits

Homogeneous climate conditions thanks to APT.line technology
Comprehensive programming and data acquisition
Large heated viewing window

Important characteristics

Temperature range: -40 °C to 180 °C
APT.line preheating chamber technology
Programmable condensation protection for test material
Heated viewing window with LED interior lighting
BINDER Multi Management Software APT-COM Basic Edition
Troubleshooting system with visual and audible alarms
Intuitive touchscreen controller with time-segment and real-time programming
Internal data logger, measured values can be read out in open format via USB
Access port with silicone plug (Models 56, 115, 240), 50 mm, left
2 access ports with silicone plugs (Model 720), 80 mm, left and right
Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
4 castors, two with brakes
Computer interface: Ethernet
230 V power socket on the right-side control panel (Models 115, 240, 720)
Adjustable ramp function
Integrated chart recorder
Real-time clock
Door heating
1 stainless steel rack
Inner chamber made of stainless steel
CFC-free refrigerant R-452A
Cooling with compressor cooling unit

Environmental simulation chambers for rapid temperature changes

BINDER environmental simulation chambers in the MK series are the number one choice for dynamic temperature profiles. Heat and cold tests alike can be performed with precision within these climate chambers. Designed for rapid temperature changes, the environmental simulation chambers can be used within a temperature range of between -40 °C and +180 °C. The patented APT.line air flow concept guarantees accurate measured values at every temperature setting - across the entire usable space and even when the climate chambers are fully loaded.
BINDER environmental simulation chambers in the MK series feature programmable condensation protection for samples. Equipped with a heated viewing window with LED interior lighting, these chambers can be adjusted to suit any requirements with ease using the controller with interval programming. The large access area even makes equipping the chambers nice and convenient.

BINDER environmental simulation chambers for flexibility and precision

The BINDER APT-COM 3 Basic Edition communication software and a troubleshooting system with visual and acoustic alarms are also included. These environmental simulation chambers offer maximum flexibility in practice thanks to their stable casters with locking brakes, which enable them to be transported from A to B in no time and then securely locked in position, with the water supply independent of location.
Dynamic climate chambers from BINDER are suitable for a wide range of applications, including material testing, aging and stress tests, and environmental simulation. Whatever they are tasked with, these units impress with their precision and performance, delivering reliable, norm-compliant test results and providing you with the basis for working with accuracy and success. The opportunities available with these environmental simulation chambers extend well beyond those offered by a standard heating chamber.

Performance Data Temperature

Designation	MK240-400V	MK240-480V-C
Temperature range	-40...180 °C	-40...180 °C
Temperature uniformity dependent on set value	0.1...1.2 ± K	0.1...1.2 ± K
Temperature fluctuation dependent on set value	0.1...0.5 ± K	0.1...0.5 ± K

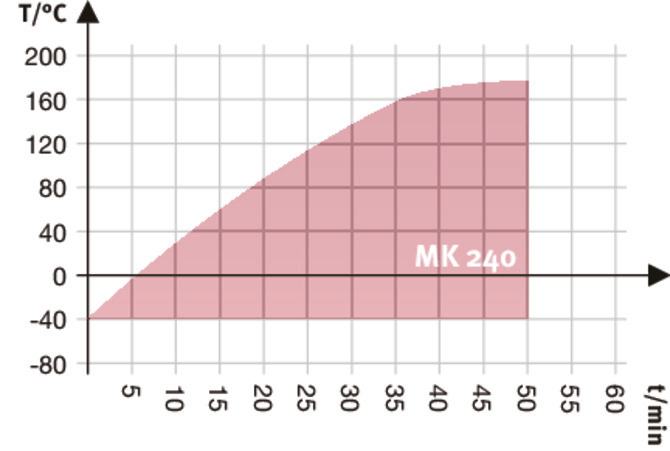

Average heating-up rate according to IEC 60068-3-5	5 K/min	5 K/min

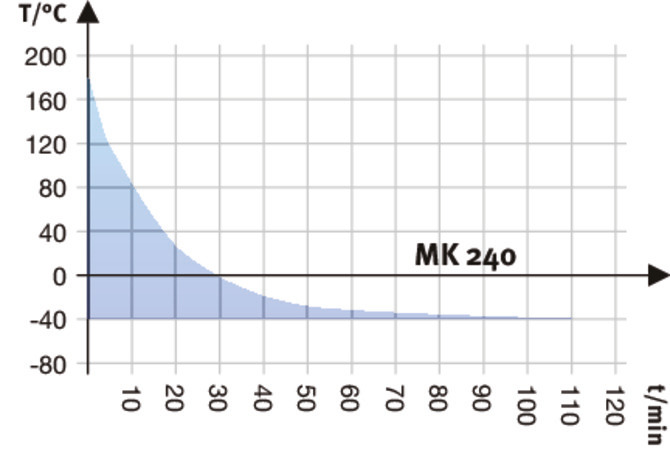

Cooling down time from 180°C to -40°C	110 min	110 min
Average cooling down time according to IEC 60068-3-5	4.5 K/min	4.5 K/min

Electrical data

Designation	MK240-400V	MK240-480V-C
Rated Voltage	400 V	480 V
Power frequency	50 Hz	60 Hz
Nominal power	5,6 kW	5,6 kW
Unit fuse	16,0 A	16,0 A
Phase (Nominal voltage)	3~	3~

Measures

Designation	MK240-400V	MK240-480V-C
Interior volume	228 L	228 L
Net weight of the unit (empty)	321 kg	321 kg
Load per rack	30 kg	30 kg
Permitted load	70 kg	70 kg
Wall clearance back	300 mm	300 mm
Wall clearance sidewise	200 mm	200 mm

Housing dimensions not incl. fittings and connections

Designation	MK240-400V	MK240-480V-C
Width net	1,115 mm	1,115 mm
Height net	1,710 mm	1,710 mm
Depth net	925 mm	925 mm

Internal Dimensions

Designation	MK240-400V	MK240-480V-C
Interior width	735 mm	735 mm
Interior height	700 mm	700 mm
Interior depth	443 mm	443 mm
Viewing window width	508 mm	508 mm
Viewing window height	300 mm	300 mm
Unit doors	1	1
