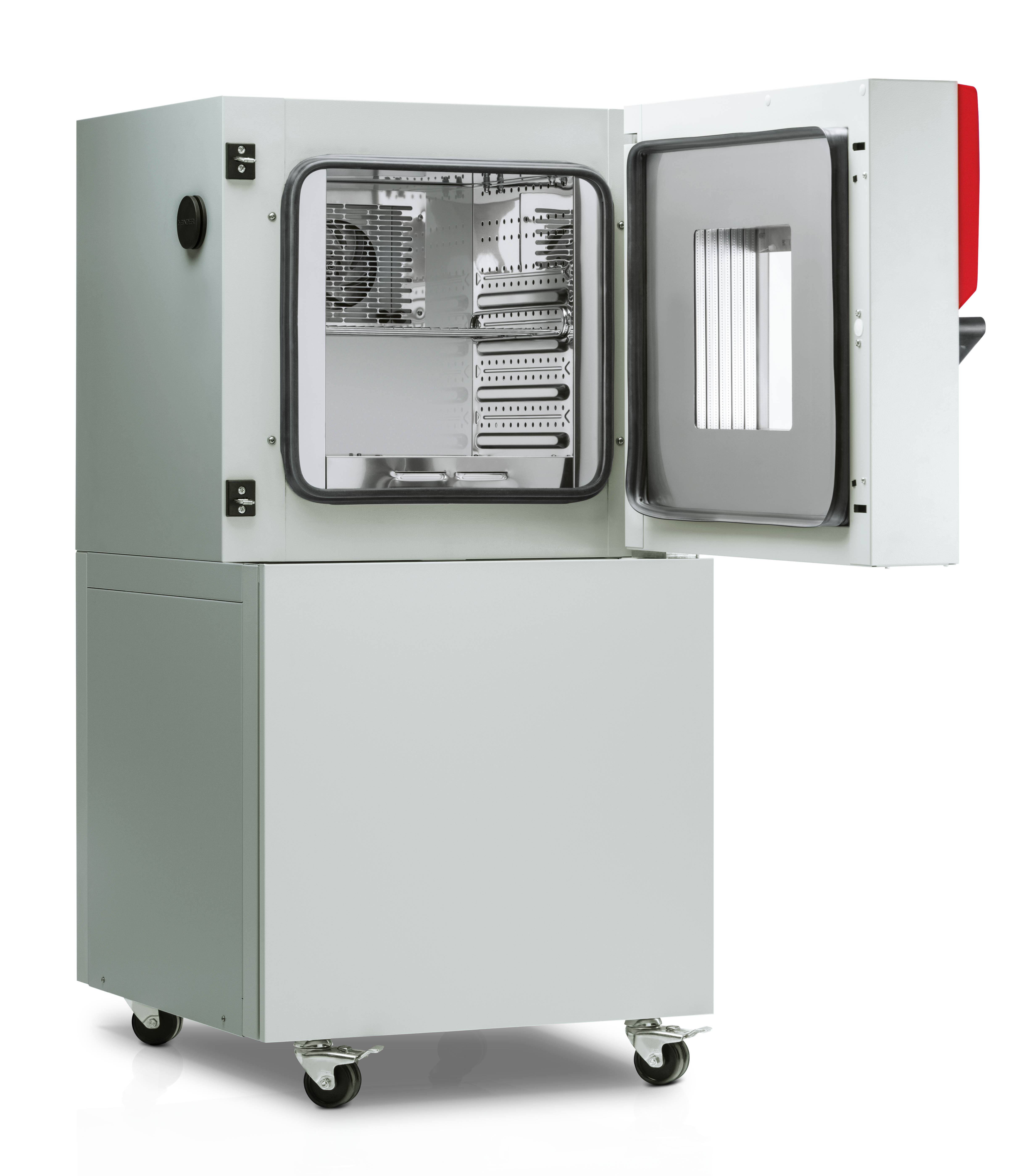

MK56 Dynamisk klimakammer,-40-180C, 60 L

Varenr. BIN90200374

Benefits

  • Homogeneous climate conditions thanks to APT.line technology.
  • Comprehensive programming and data acquisition.
  • Large heated viewing window.
Beskrivelse

The BINDER MK series chamber is suitable for all heat and cold tests between -40 °C and 180 °C. The MK is a clever alternative to complex individual solutions for cyclical temperature tests.

Benefits

  • Homogeneous climate conditions thanks to APT.line technology
  • Comprehensive programming and data acquisition
  • Large heated viewing window

Important characteristics

  • Temperature range: -40 °C to 180 °C
  • APT.line preheating chamber technology
  • Programmable condensation protection for test material
  • Heated viewing window with LED interior lighting
  • BINDER Multi Management Software APT-COM Basic Edition
  • Troubleshooting system with visual and audible alarms
  • Intuitive touchscreen controller with time-segment and real-time programming
  • Internal data logger, measured values can be read out in open format via USB
  • Access port with silicone plug (Models 56, 115, 240), 50 mm, left
  • 2 access ports with silicone plugs (Model 720), 80 mm, left and right
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • 4 castors, two with brakes
  • Computer interface: Ethernet
  • 230 V power socket on the right-side control panel (Models 115, 240, 720)
  • Adjustable ramp function
  • Integrated chart recorder
  • Real-time clock
  • Door heating
  • 1 stainless steel rack
  • Inner chamber made of stainless steel
  • CFC-free refrigerant R-452A
  • Cooling with compressor cooling unit

Environmental simulation chambers for rapid temperature changes

BINDER environmental simulation chambers in the MK series are the number one choice for dynamic temperature profiles. Heat and cold tests alike can be performed with precision within these climate chambers. Designed for rapid temperature changes, the environmental simulation chambers can be used within a temperature range of between -40 °C and +180 °C. The patented APT.line air flow concept guarantees accurate measured values at every temperature setting - across the entire usable space and even when the climate chambers are fully loaded.
BINDER environmental simulation chambers in the MK series feature programmable condensation protection for samples. Equipped with a heated viewing window with LED interior lighting, these chambers can be adjusted to suit any requirements with ease using the controller with interval programming. The large access area even makes equipping the chambers nice and convenient.

BINDER environmental simulation chambers for flexibility and precision

The BINDER APT-COM 3 Basic Edition communication software and a troubleshooting system with visual and acoustic alarms are also included. These environmental simulation chambers offer maximum flexibility in practice thanks to their stable casters with locking brakes, which enable them to be transported from A to B in no time and then securely locked in position, with the water supply independent of location.
Dynamic climate chambers from BINDER are suitable for a wide range of applications, including material testing, aging and stress tests, and environmental simulation. Whatever they are tasked with, these units impress with their precision and performance, delivering reliable, norm-compliant test results and providing you with the basis for working with accuracy and success. The opportunities available with these environmental simulation chambers extend well beyond those offered by a standard heating chamber.

Performance Data Temperature

DesignationMK056-230VMK056-240V
Temperature range-40...180 °C-40...180 °C
Temperature uniformity dependent on set value0.5...1.5 ± K0.5...1.5 ± K
Temperature fluctuation dependent on set value0.1...0.5 ± K0.1...0.5 ± K

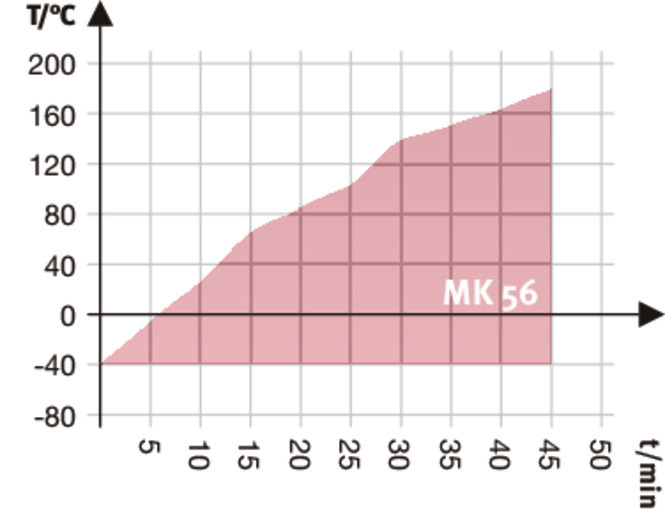

Average heating-up rate according to IEC 60068-3-55 K/min5 K/min

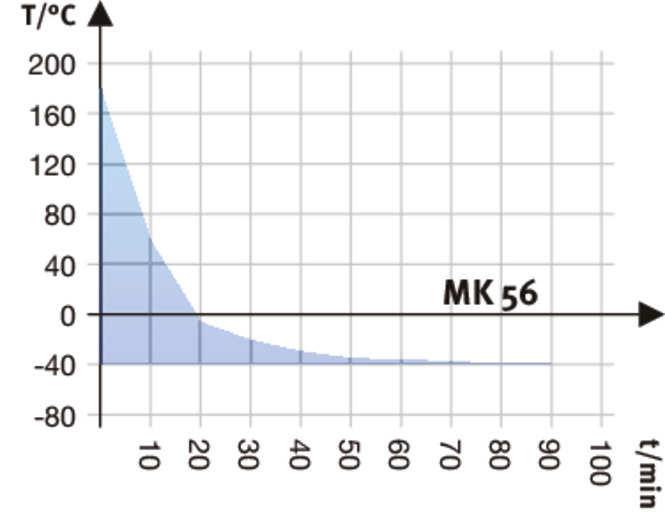

Cooling down time from 180°C to -40°C90 min90 min
Average cooling down time according to IEC 60068-3-55 K/min5 K/min

Electrical data

DesignationMK056-230VMK056-240V
Rated Voltage230 V240 V
Power frequency50 Hz60 Hz
Nominal power2,8 kW2,8 kW
Unit fuse16,0 A16,0 A
Phase (Nominal voltage)1~1~

Measures

DesignationMK056-230VMK056-240V
Interior volume60 L60 L
Net weight of the unit (empty)165 kg165 kg
Load per rack15 kg15 kg
Permitted load60 kg60 kg
Wall clearance back300 mm300 mm
Wall clearance sidewise200 mm200 mm

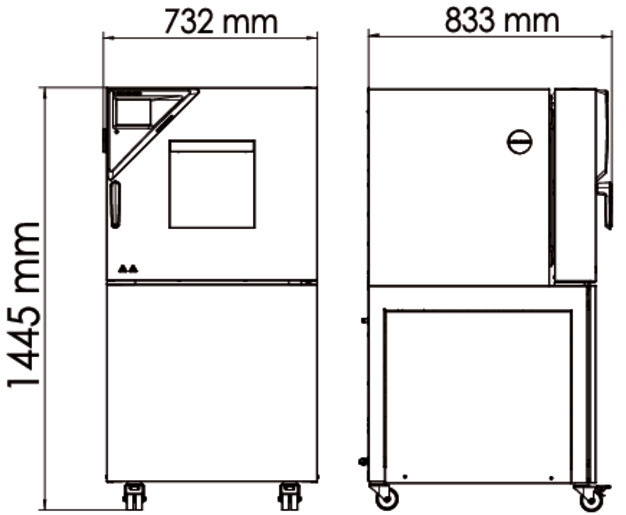

Housing dimensions not incl. fittings and connections

DesignationMK056-230VMK056-240V
Width net720 mm720 mm
Height net1,445 mm1,445 mm
Depth net778 mm778 mm

Internal Dimensions

DesignationMK056-230VMK056-240V
Interior width400 mm400 mm
Interior height420 mm420 mm
Interior depth350 mm350 mm
Viewing window width288 mm288 mm
Viewing window height255 mm255 mm
Unit doors11

Environment-specific data

DesignationMK056-230VMK056-240V
Sound-pressure level59 dB(A)59 dB(A)

Fixtures

DesignationMK056-230VMK056-240V
Number of shelves (std./max.)1/41/4
Specifikationer
Varenr. BIN90200374
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9020-0374
CE-godkendt Ja
