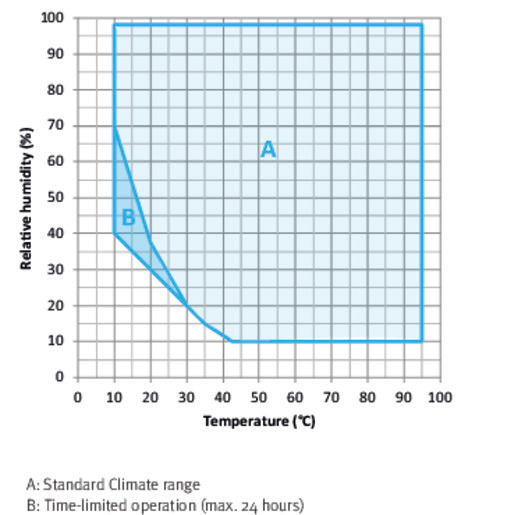

02 2022 03 mkf mkft en web 670x515 6
03 2022 04 au ab mkf400 web 670x515
04 2022 04 wk mkf400 web 670x515

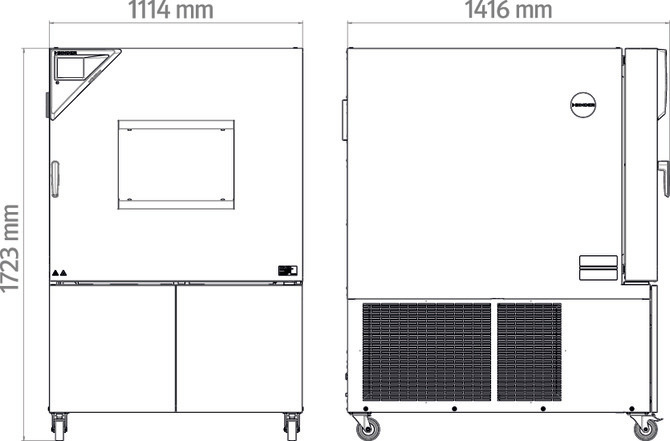

05 abmessungen mkf400 9020 0408 web 670x515

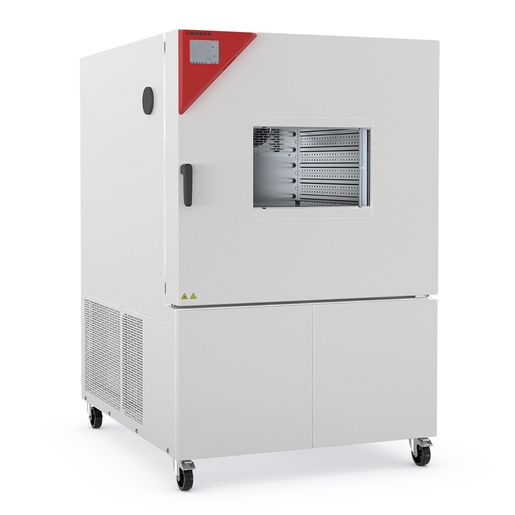

06 mkf mk 400 dynamic climate chambers gs web 670x515 1

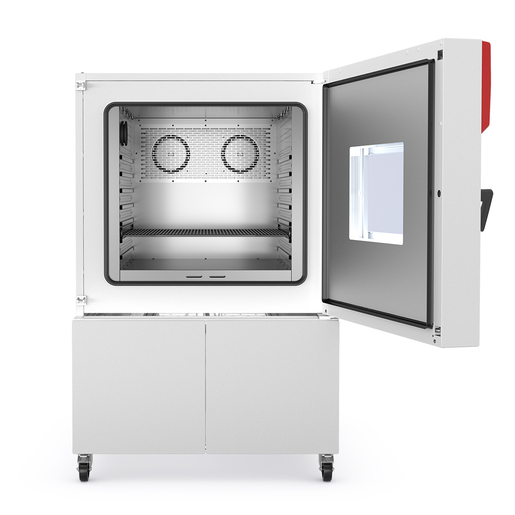

07 mkf mk 400 dynamic climate chambers of web 670x515 1

MKF400-400V, Standard, Series MKF - Dynamic climat

Varenr. BIN90200408

Benefits

  • Homogeneous climate conditions thanks to APT.line technology.
  • Automatic water and wastewater management.
  • Pressure humidification with fast response times.
  • Comprehensive programming and data acquisition.
  • Large heated viewing window.
Beskrivelse

A BINDER MKF series environmental simulation chamber is ideally suited for any cold and heat testing based on current temperature and climate testing methods according to DIN and IEC standards. The comprehensive standard equipment for this environmental simulation chamber ensures ease of operation.

Benefits

  • Homogeneous climate conditions thanks to APT.line technology
  • Automatic water and wastewater management
  • Pressure humidification with fast response times
  • Comprehensive programming and data acquisition
  • Large heated viewing window

Important characteristics

  • Temperature range: -40 °C to +180 °C
  • Humidity range: 10 % to 98 % RH
  • Integrated water-storage tank, 20 liters
  • 4 zero-voltage relay contacts
  • APT.line preheating chamber technology
  • Programmable condensation protection for test material
  • Heated viewing window with LED interior lighting
  • Humidity regulation with capacitative humidity sensor and vapor humidification
  • BINDER Multi Management Software APT-COM 4 Basic Edition
  • Troubleshooting system with visual and audible alarms
  • Intuitive touchscreen controller with time-segment and real-time programming
  • Internal data logger, measured values can be read out in open format via USB
  • Access port with silicone plug: 50 mm, left
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • 4 castors, two with brakes
  • Computer interface: Ethernet
  • Adjustable ramp function
  • Integrated chart recorder
  • Real-time clock
  • Door heating
  • Alarm notification in the event of insufficient water in fresh water tank
  • 1 stainless steel rack
  • Complete safety connection kit for water supply and drainage, up to 1 m height
  • Inner chamber made of stainless steel
  • CFC-free refrigerant R-452A
  • Cooling with compressor cooling unit

Performance Data Temperature

DesignationMKF400-400VMKF400-480V-C
Temperature range-40...180 °C-40...180 °C
Temperature uniformity dependent on set value0.1...1.2 ± K0.1...1.2 ± K
Temperature fluctuation dependent on set value0.1...0.5 ± K0.1...0.5 ± K
Average heating-up rate according to IEC 60068-3-55 K/min5 K/min
Cooling down time from 180°C to -40°C115 min115 min
Average cooling down time according to IEC 60068-3-55 K/min5 K/min

Performance Data Climate

DesignationMKF400-400VMKF400-480V-C
Temperature range with humidity10...95 °C10...95 °C
Temperature fluctuation with humidity dependent on set value0.1...1.3 ± K0.1...1.3 ± K
Humidity fluctuation with humidity dependent on set value2,5 ± % r.F.2,5 ± % r.F.
Max. heat compensation at 25°C and 90% RH800 W800 W

Electrical data

DesignationMKF400-400VMKF400-480V-C
Rated Voltage400 V480 V
Power frequency50 Hz60 Hz
Nominal power8 kW8 kW
Unit fuse16,0 A16,0 A
Phase (Nominal voltage)3~3~

Measures

DesignationMKF400-400VMKF400-480V-C
Interior volume417 L417 L
Net weight of the unit (empty)432 kg432 kg
Load per rack30 kg30 kg
Permitted load150 kg150 kg
Wall clearance back500 mm500 mm
Wall clearance sidewise300 mm300 mm

Housing dimensions not incl. fittings and connections

DesignationMKF400-400VMKF400-480V-C
Width net1,115 mm1,115 mm
Height net1,710 mm1,710 mm
Depth net1,400 mm1,400 mm

Internal Dimensions

DesignationMKF400-400VMKF400-480V-C
Interior width735 mm735 mm
Interior height700 mm700 mm
Interior depth810 mm810 mm
Viewing window width508 mm508 mm
Viewing window height300 mm300 mm
Unit doors11

Environment-specific data

DesignationMKF400-400VMKF400-480V-C
Sound-pressure level65 dB(A)65 dB(A)
Energy consumption at 25°C and 60% RH1,900 Wh/h1,900 Wh/h

Fixtures

DesignationMKF400-400VMKF400-480V-C
Number of shelves (std./max.)1/61/6
Specifikationer
Varenr. BIN90200408
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9020-0408
CE-godkendt Ja
